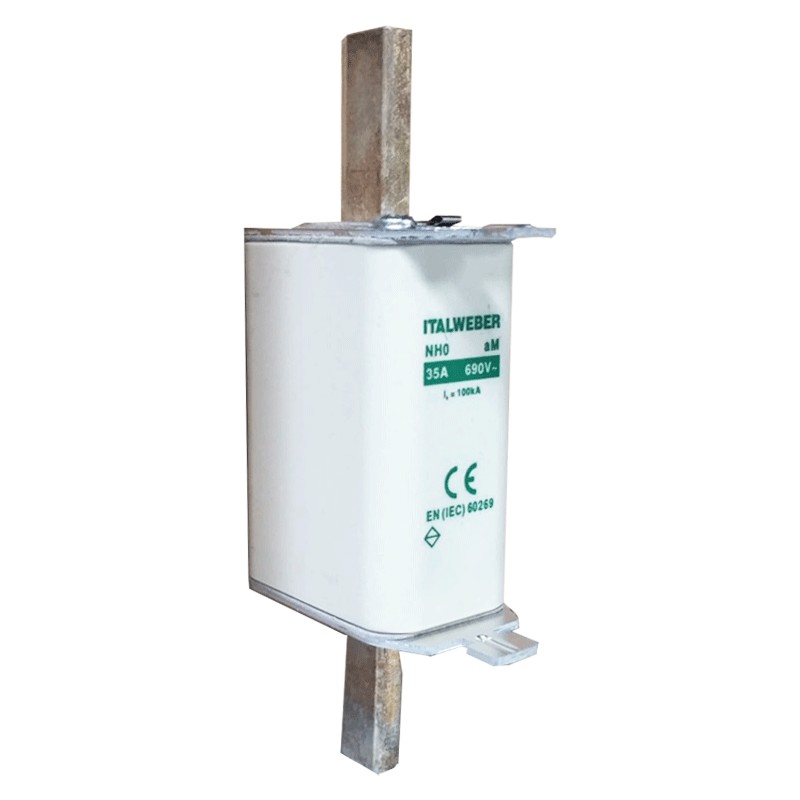

Knife fuse Italweber NH 0 standard curve aM 35A 690V 1507036
ITW 1507036
8024873045151
Italweber knife fuse, with the following characteristics
- NH 0 series
- Standard type
- Nominal voltage 690V
- Switching characteristic aM
- Rated current 35A
- Breaking capacity 100kA
![](https://www.elettronew.com/41305-large_default/knife-fuse-italweber-nh-0-standard-curve-am-35a-690v-1507036.jpg)
Knife fuse Italweber NH 0 standard curve aM 35A 690V 1507036
€8.60
€8.60
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Out of stock
Incoming
NH aM fuses are used to protect motors, transformers and equipment with starting current. They only protect against short circuits and must be combined with overload protection devices. The NH/CP and NH/CP-S fuses have a striker that comes out when the fuse melts and can be used with a microswitch to signal the trip from a distance. The NH/CP fuses are to be used with open bases with microswitch already mounted on board (see page 102), while the NH/CP-S fuses are to be used in the LTS/K switch-disconnectors, to which the microswitch for remote signalling of the trip must be added.
Characteristics:
- Italweber series
- NH 0 Series
- Standard type
- Nominal voltage 690V
- Switching characteristic aM
- Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2, DIN 43620
- Steatite body
- Contacts in silvered copper
- Rated current 35A
- Breaking capacity 100kA
- Execution with upper melting indicator
Data sheet
- Type:
- Blade fuses
- Voltage:
- 690V
- Breaking capacity:
- 100KA
- Amps:
- 35A
- Material:
- Steatite
