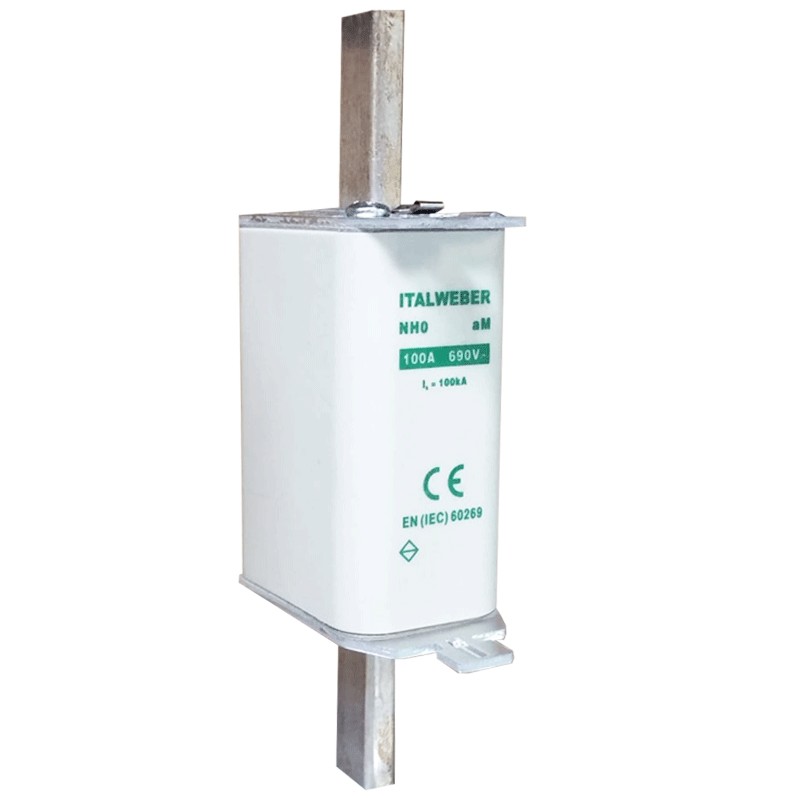

Knife fuse Italweber NH 0 standard curve aM 100A 690V 1507100


ITW 1507100 8024873045199

Italweber knife fuse, with the following characteristics

  • NH 0 series
  • Standard type
  • Nominal voltage 690V
  • Switching characteristic aM
  • Rated current 100A
  • Breaking capacity 100kA
Request info about this product

Knife fuse Italweber NH 0 standard curve aM 100A 690V 1507100

€8.60
€8.60

Knife fuse Italweber NH 0 standard curve aM 100A 690V 1507100

€8.60
Tax included
klarna Pay in installments with Klarna
qty

Knife fuse Italweber NH 0 standard curve aM 100A 690V 1507100

€8.60

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

NH aM fuses are used to protect motors, transformers and equipment with starting current. They only protect against short circuits and must be combined with overload protection devices. The NH/CP and NH/CP-S fuses have a striker that comes out when the fuse melts and can be used with a microswitch to signal the trip from a distance. The NH/CP fuses are to be used with open bases with microswitch already mounted on board (see page 102), while the NH/CP-S fuses are to be used in the LTS/K switch-disconnectors, to which the microswitch for remote signalling of the trip must be added.

Characteristics:

  • Italweber series
  • NH 0 Series
  • Standard type
  • Nominal voltage 690V
  • Switching characteristic aM
  • Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2, DIN 43620
  • Steatite body
  • Contacts in silvered copper
  • Rated current 100A
  • Breaking capacity 100kA
  • Execution with upper melting indicator

Data sheet

Type:
Blade fuses
Voltage:
690V
Amps:
100A
Material:
Ceramic
