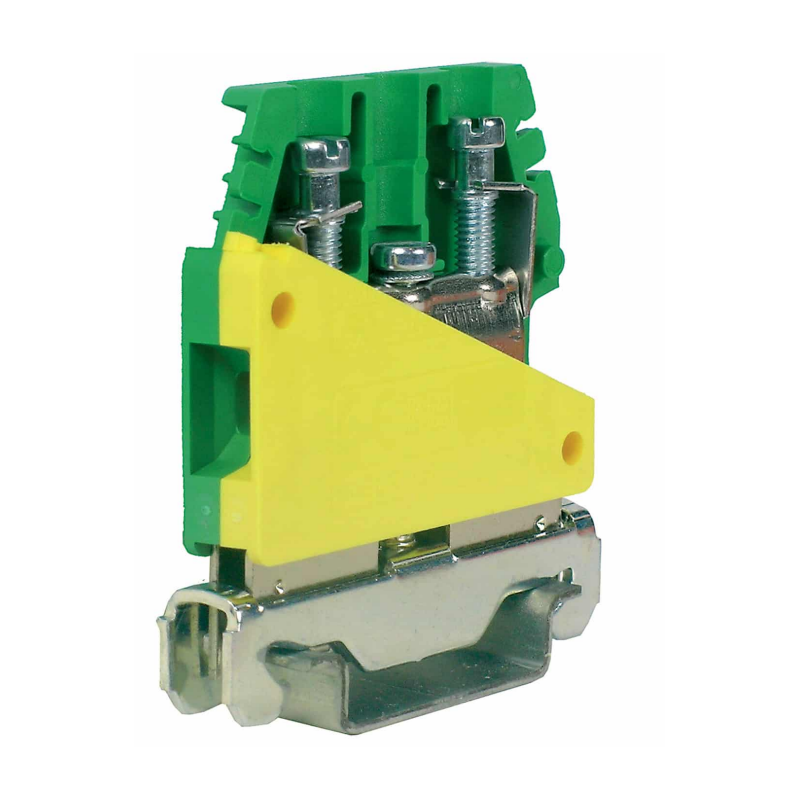

Cabur ground terminal 6mmq yellow green TO110
CBR TO110
8017963211055
Single-plane through-ground terminal with screw clamping Cabur TE series:
- 6mm² nominal cross-section
- Flexible conductor 0.5-6 mm²
- Solid conductor 0.5-10 mm²
- Conductor with terminal - 6mm² model - WP60/20
- Color: yellow/green
- A5 gauge
- Maximum voltage AC/DC 600V (according to UL standard)
- Cross section (min-max) 20-8 (AWG) (according to UL standard)
- Min/Max operating temperatures -40 °C / +110 °C
- Rated impulse voltage / pollution degree 8 kV / 3
- Tightening torque (nom. / max.) 0.8 / 1.4 Nm
- Width (pitch) 8 mm
- Length 47 mm
- Plastic material Polyamide UL94V-0
€3.96
Items Available: 696
: 326
Data sheet
- Colour: Yellow/Green
- Type: Clamps
- Cross-Section: 6mmq
