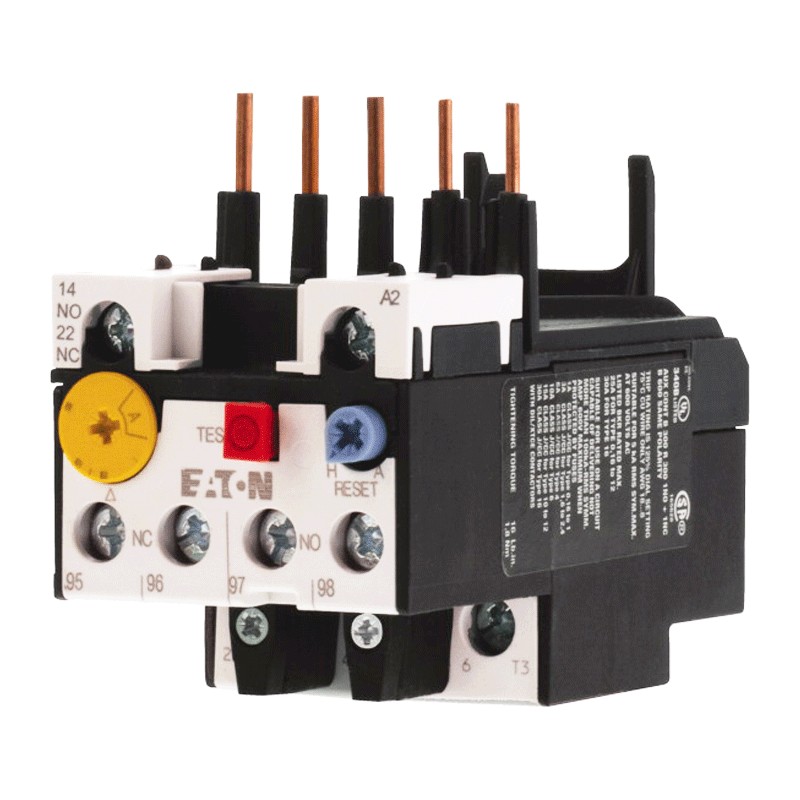

Eaton 10-16A 1NA+1NC thermal relay for contactor 278452
EAO 278452
4015082784522
Eaton thermal overload relay with the following features:
- Direct contactor mounted
- Contacts 1NO+1NC
- Weight 0.146 kg
- Ampere 10-16A
- Degree of protection IP20
- Max altitude 2000 mm
- Rated impulse withstand voltage [Uimp] 6000 V AC
- Overvoltage category III
- Pollution degree 3
- Rated insulation voltage [Ui] 690 V
- Rated operational voltage [Ue] 690 Vac
- Safe disconnection between auxiliary contacts and main contacts 440 Vac
Eaton 10-16A 1NA+1NC thermal relay for contactor 278452
€58.02
€58.02
Tax included
Tax included
Pay in installments with Klarna
Out of stock
Incoming
Thermal overload relays and overload relays are electromechanical protection devices for the main circuit. They provide safe motor protection in the event of overload or phase loss.
Features:
- Eaton Series
- Direct contactor mount
- Contacts 1NO+1NC
- NO = normally open 1 NO
- NC = normally closed 1 NC
- Ampere 10-16A
- Suitable for hot humid climates, constant, according to IEC 60068-2-78
- Suitable for hot, humid and cyclic climates according to IEC 60068-2-30
- Ambient temperature Operating range according to IEC/EN 60947 - PTB: -5 °C - +55 °C
- Ambient temperature daytime -25 °C - +55 °C
- Ambient temperature in enclosure - 25 - 40 °C
- Continuous temperature compensation
- Weight 0.146 kg
- Shock resistance 10 half-wave - shock duration 10 ms g
- Degree of protection IP20
- Altitude max 2000 mm
- Rated impulse withstand voltage [Uimp] 6000 Vac
- Overvoltage category III
- Pollution degree 3
- Rated insulation voltage [Ui] 690 V
- Rated operational voltage [Ue] 690 Vac
- Safe disconnection between auxiliary contacts and main contacts 440 Vac
- Connection sections Single-wire or stranded 18 - 8 AWG
- M4 connection screw
- Starting torque 1.8 Nm
- Stripping length 10 mm
There are no reviews
Data sheet
- Type:
- Relays
- Voltage:
- 690VAC
- Poles:
- 2P
- Amps:
- 10-16A
