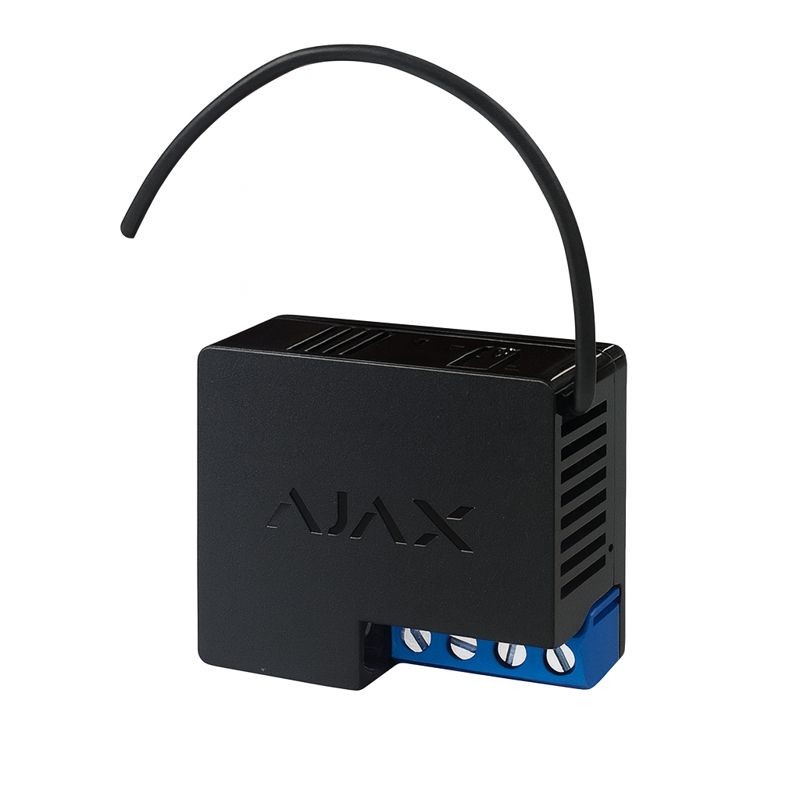

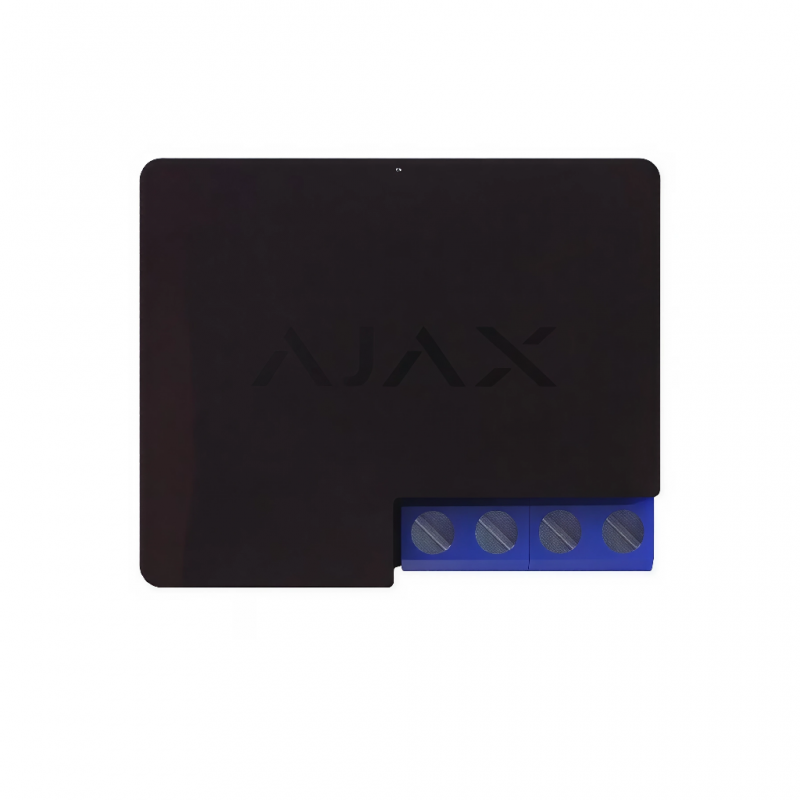

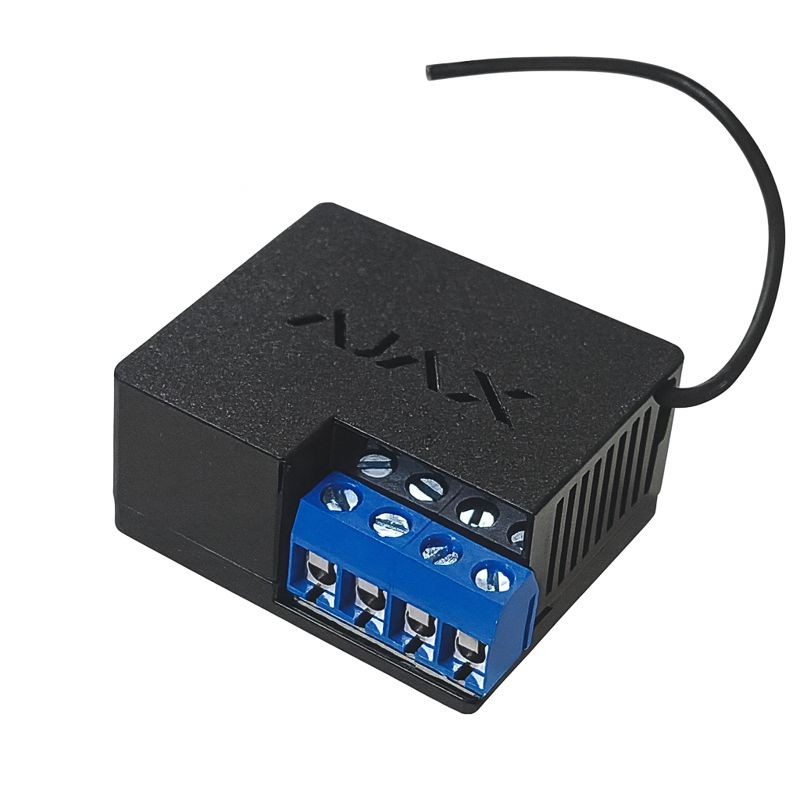

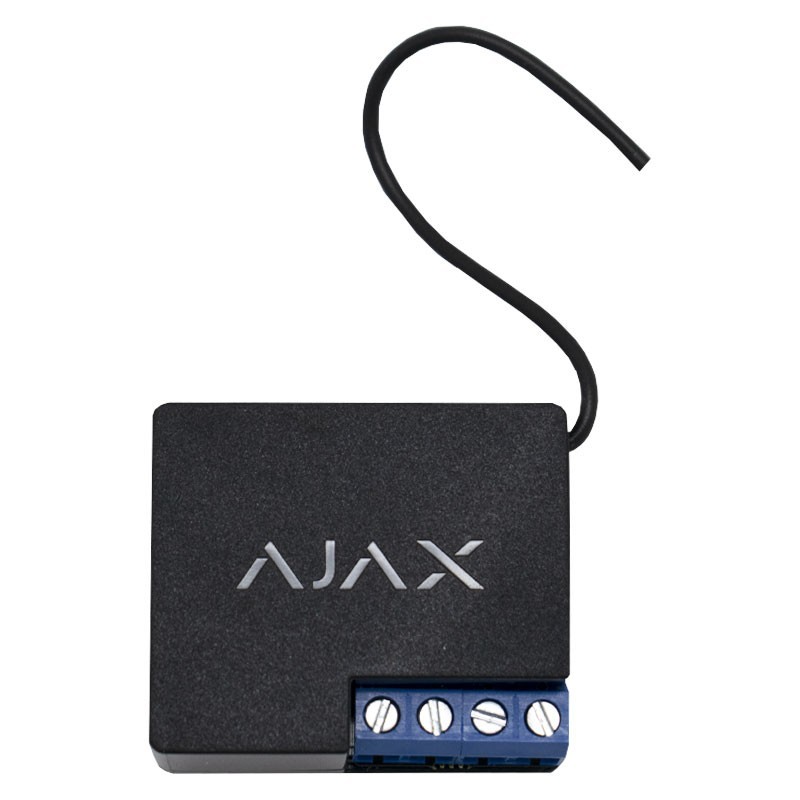

Ajax Relay Jeweller 7-24V Module
08T 38204
4823114015854
The Ajax Relay Jeweller is a low-power, dry-contact wireless relay module designed to remotely control low-voltage (7-24V DC) power supplies and devices. With its configuration versatility, non-galvanically connected contact, and support for bistable or pulse modes, it is an ideal solution for controlling gates, lights, automations, or home automation systems integrated into the Ajax security system.
- Dry contact (NO/NC) for low- or high-voltage networks
- 7-24 V⎓ power supply
- Pulse (1-255 s) or bistablemode
- Compatible with Ajax home automation and security systems
- Wireless communication via Jeweller protocol
- Low power consumption, suitable for systems with power supplies + battery backup
- Easy installation in electrical panels, junction boxes or remote devices
- Control via Ajax app for smartphones or central panel
€57.77
€57.77
Tax included
Tax included
Free Shipping
Items Available: 10
: 3
Ajax Relay: Dry contact for remote control 12-24V DC
Versatile configuration and low power consumption make Relay a universal tool for equipment control. The dry contact is not galvanically connected to the device's power circuit: it can be used in low- and high-voltage networks. Bistable and pulse modes are available. The relay can be easily powered by a power supply coupled with a backup battery.
- Pulse duration 1-255 seconds
- Power supply 7-24 V⎓
- Dry contact
Intelligent Safety with Relay Relay
Use automation scenarios so that your security system not only signals threats, but actively counteracts them.
- Anti-flooding system
- Scheduled water shut-off
- Automatic doors and shutters
- Scheduled heating
Advantages of using the Ajax Relay
Anti-flooding system
Set automatic water shut-off in case of washing machine failure or pipe breakage. Manage the facility's water supply via the app and according to schedule
Automatic gates or automatic barrier
Control opening and closing via the app and Button button. No compromise on convenience and security.
Electric locks
Controls opening and closing of locks via the app and Buton Button. Block access to rooms by alarm, or when you activate night mode, to sleep in peace.
Security smoke machine
Configure smoke machine activation by a detector alarm or DoubleButton emergency button. It is a reliable protection of people and valuables from thieves.
Motorized roller shutters and blinds
Control the equipment remotely by App, by pressing the Button button or according to the scenario: when changing the security mode, by time of day, by alarm.
SCA Lock
Configures the access control system (SCA) reader lock during system entry to prevent employees from accessing protected premises and avoid false alarms.
Compatibility - Ajax Devices Supported
| Ajax Device | Compatibility |
|---|---|
| Hub (2G) Jeweller | Compatible |
| Hub (4G) Jeweller | Compatible |
| Hub 2 (2G) Jeweller | Compatible |
| Hub 2 (4G) Jeweller | Compatible |
| Hub 2 Plus Jeweller | Compatible |
| Hub BP Jeweller | Compatible |
| Hub Hybrid (2G) | Compatible |
| Hub Hybrid (4G) | Compatible |
| Hub Hybrid (4G) (without enclosure) | Compatible |
| Hub Plus Jeweller | Compatible |
| ReX 2 Jeweller | Compatible |
| ReX Jeweller | Compatible |
Technical Specifications - Relay Jeweller
Power supply
| Parameter | Value |
|---|---|
| External power supply | 7-24 V⎓ |
| Note | Relay does not provide additional power to connected devices |
| Power consumption | Up to 1 W (standby mode) |
| Cable cross-section area | 0.75-1.5 mm² (22-14 AWG) |
Load Characteristics
| Load type | Limits |
|---|---|
| Resistive | Up to 5 A @ 24 V⎓ - Up to 13 A @ 110-230 V~ |
| Inductive / Capacitive | Up to 3 A @ 24 V⎓ - Up to 8 A @ 110-230 V~ |
| Voltage Protection | Min 6.5 V⎓ / Max 36.5 V⎓ - relay automatically shuts down out of range |
| Overheating protection | > +65 °C (ambient) / > +85 °C (internal relay) |
Communication Technology - Jeweller
| Feature | Value |
|---|---|
| Type | Ajax proprietary wireless for command, alarm and event transmission |
| Operating frequencies |
|
| Maximum radiated power (ERP) | Up to 25 mW |
| Modulation | GFSK |
| Communication range | Up to 1,000 m (in open field) |
| Encrypted communication | Block encryption with moving key |
| Frequency hopping | Active to avoid interference and inhibition |
Functional Features
| Feature | Details |
|---|---|
| Smartphone control | Configuration and notifications via Ajax app |
| Automation scenarios |
|
| Adjustable pulse duration | 0.5 to 255 seconds |
| Operating Modes | Pulse / Bistable |
| Contact status | Normally open / Normally closed |
Protection Antisabotage
| Type | Description |
|---|---|
| Counterfeiting | Device authentication |
| Loss of connection | After 36 s (dependent on Jeweller/Fiber settings) |
Case
| Parameter | Value |
|---|---|
| Dimensions | 39 × 33 × 18 mm |
| Weight | 25 g |
| Operating temperature range | -10 °C to +64 °C |
| Maximum humidity | Up to 75% |
| Protection class | IP20 |
Package Contents
| Element | Included |
|---|---|
| Device | Relay Jeweller |
| Mounting | Double-sided tape |
| Documentation | Quick guide |
Dispositivo già utilizzato e funziona come da specifiche del fornitore
ottimo prodotto, efficiente e facilissima la sua installazione
Il prodotto si presenta bene ma Non lo ho ancora provato
Data sheet
- Colour: Black
- Type: Relays
- System: Wireless
