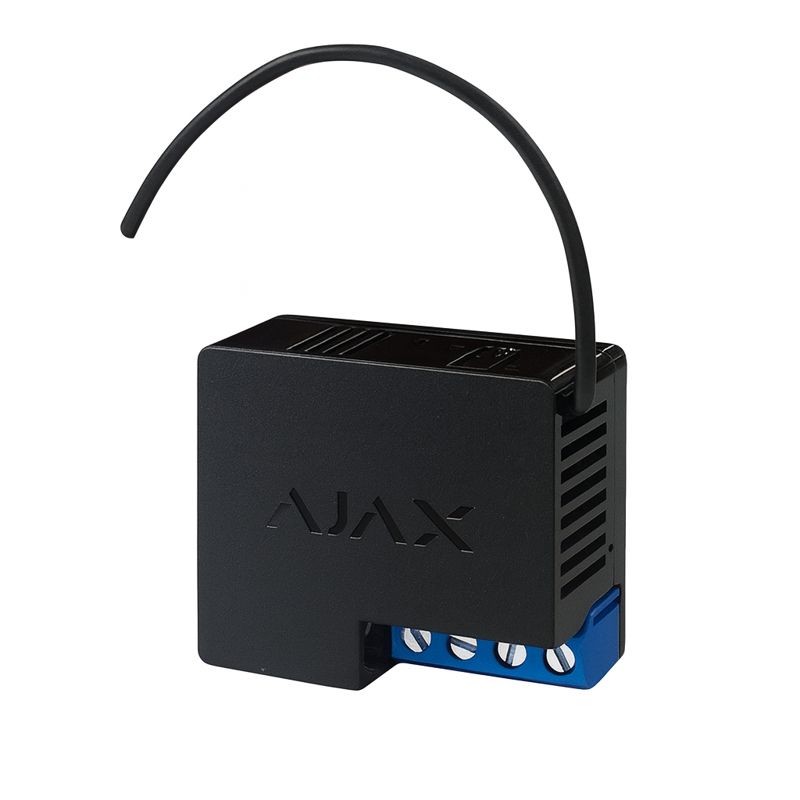

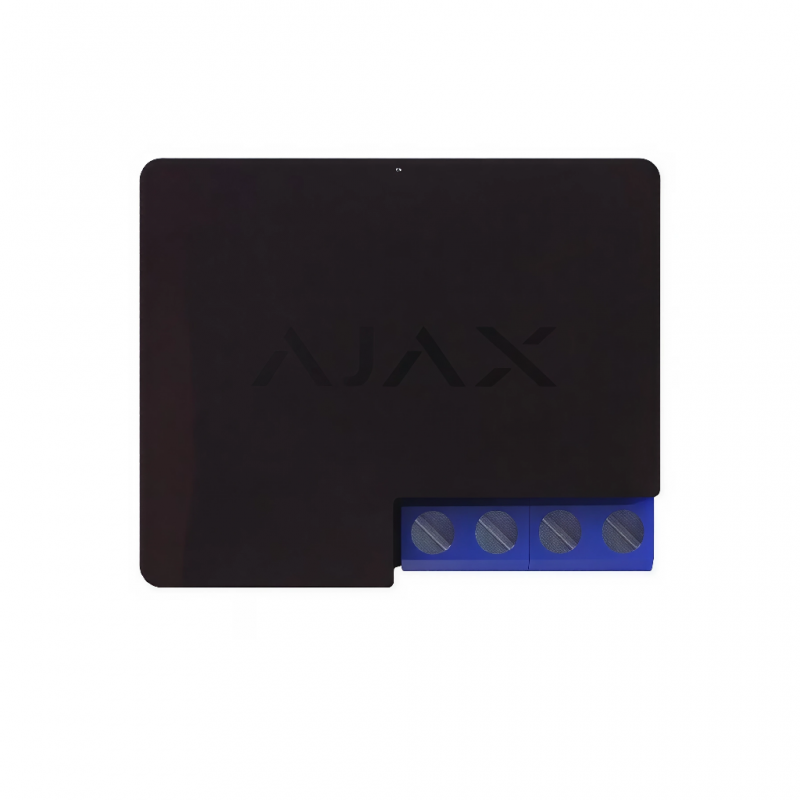

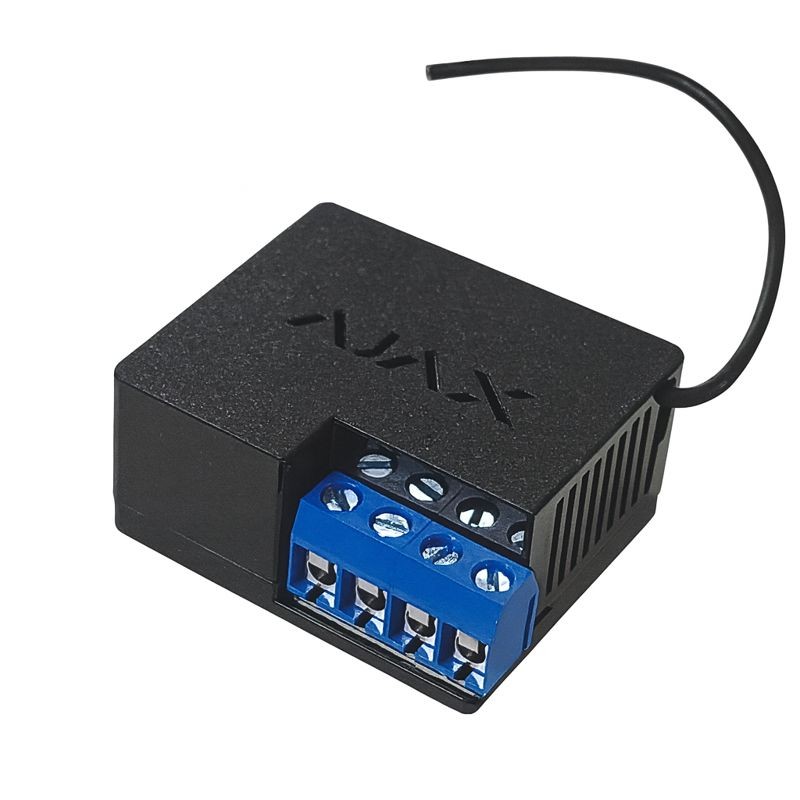

Ajax WallSwitch Jeweller Remote control relay
08T 38189
4823114015434
The Ajax WallSwitch Jeweller remote control relay allows managing loads (closes/opens circuit on command) up to 3 kW, protecting against surges and monitoring energy consumption directly through the Ajax app.
- Managing loads up to 3 kW
- Overvoltage and overcurrent protection
- Bistable or pulse mode
- Energy consumption monitoring via Ajax app
- Remote circuit open/close function for 110/230 V~ devices
- Easy installation and management via app
€59.50
€59.50
Tax included
Tax included
Free Shipping
Items Available: 6
: 2
Ajax WallSwitch Relay: Remote control of high loads
The Ajax WallSwitch Jeweller relay is an advanced solution for remote control of high-power devices requiring 110/230 V~ power. It can handle loads up to 3 kW, allowing it to control power-demanding devices, such as electric heaters, pumps, or large domestic or industrial equipment. Management is done directly through the Ajax app, allowing the circuit to be opened or closed remotely and securely.
Surge protection for sensitive devices
One of the WallSwitch's distinguishing features is its surge and overcurrent protection, which protects your connected devices from potential damage caused by voltage spikes or overloads. The built-in surge protection feature is critical for keeping your devices safe and operational even in environments with power fluctuations, ensuring long-lasting, uninterrupted operation.
Real-time power consumption monitoring
With built-in energy monitoring, the WallSwitch allows you to view the electricity consumption of connected devices directly in the Ajax app. This feature gives you a clear view of consumption, optimizing energy use and helping to reduce waste. With these statistics, you can make informed decisions to improve energy efficiency and save costs.
Flexible operation mode of the WallSwitch relay
The Ajax WallSwitch relay offers two modes of operation: bistable and pulsed. In bistable mode, the device remains in one state (open or closed) until commanded to change it, while in pulse mode, the relay changes state whenever a pulse is received. This flexibility allows you to tailor the device to your specific control needs.
Easy installation and management
Installation of the WallSwitch Jeweller is quick and simple. The device easily connects to a 110/230 V~ network and can be managed via the Ajax app, which allows you to control it from anywhere. In addition, being Ajax compatible, WallSwitch integrates seamlessly with other Ajax devices, providing centralized management of home or industrial security and automation.
Technical specifications of the WallSwitch Jeweller relay
Compatibility with Ajax devices
| Compatible Devices |
|---|
| Hub (2G) Jeweller |
| Hub (4G) Jeweller |
| Hub 2 (2G) Jeweller |
| Hub 2 (4G) Jeweller |
| Hub 2 Plus Jeweller |
| Hub BP Jeweller |
| Hub Hybrid (2G) |
| Hub Hybrid (4G) |
| Hub Hybrid (4G) (without casing) |
| Hub Plus Jeweller1 |
| ReX 2 Jeweller |
| ReX Jeweller |
Power supply
| Feature | Description |
|---|---|
| Power supply voltage | 110-230 V ± 10%, 50/60 Hz |
| Maximum continuous load current | 13 A |
| Output power | Up to 3.0 kW (resistive load at 230 V~) Up to 1.5 kW (resistive load at 110 V~) |
| Average consumption | Up to 1 W |
| Overcurrent protection | More than 11 A (when protection is on) More than 13 A (when protection is off) The device automatically shuts down when the current exceeds the selected value. |
| Voltage protection for 230 V~ power grid | Min: 184 V~ Max: 253 V~ The device automatically shuts down when the voltage exceeds the specified levels. |
| Voltage protection for 110 V~ power grid | Min: 92 V~ Max: 132 V~ Device automatically shuts down when voltage exceeds specified levels. |
| Overheating protection | More than +65 °C If the protection is activated, the device will shut down. |
| Protection class against electric shock | Class II |
Jeweller communication technology
| Feature | Description |
|---|---|
| Communication | Proprietary wireless communication to transmit commands, alarms and events. |
| Two-way communication | Yes |
| Anti-sabotage system | Advanced |
| Block encryption | With mobile key |
| Instant notifications | Yes |
| Remote control | Configuration in Ajax apps |
| Operating frequencies | 866.0-866.5 MHz, 868.0-868.6 MHz, 868.7-869.2 MHz, 905.0-926.5 MHz, 915.85-926.5 MHz, 921.0-922.0 MHz (depending on sales region) |
| Maximum effective radiated power (ERP) | Up to 25 mW |
| Radio signal modulation | GFSK |
| Radio communication range | Up to 1,000 m between the relay and the hub (or repeater) in the open field |
| Encrypted communication | All saved and transmitted data are protected by block encryption with a moving key |
| Frequency hopping | To prevent radio interference and signal inhibition |
Key features
| Feature | Description |
|---|---|
| Control via smartphone | User can set relay configurations and receive notifications in an Ajax app |
| Automation scenarios | For on/off, scheduling, alarm, temperature, humidity, CO2 concentration (when LifeQuality Jeweller is added to the system) |
| Energy consumption monitoring | Monitoring of current, voltage, power consumption and power consumed by connected appliances |
| Adjustable pulse duration | From 1 to 255 s |
| Modes of operation | Pulse, bistable (available with firmware version 5.54.1.0 or later, manufactured after March 5, 2020) |
| Contact status | Normally open, normally closed |
Anti-sabotage protection
| Feature | Description |
|---|---|
| Protection against counterfeiting | Device authentication |
| Detection of communication loss | Within 36 s |
| Detection time | Depends on Jeweller or Jeweller/Fiber settings |
Case
| Feature | Description |
|---|---|
| Dimensions | 39 × 33 × 18 mm |
| Weight | 30 g |
| Operating temperatures | 0 °C to +64 °C |
| Maximum allowable humidity | Up to 75% without condensation |
| Protection class | IP20 |
Package contents
| Feature | Description |
|---|---|
| WallSwitch Jeweller | 1 piece |
| Cables | 2 pieces |
| Quick Guide | 1 piece |
Il prodotto non era disponibile in sede come invece indicato, i tempi si sono allungati.
ottimo prodotto facilità di configurazione
prodotti di ottima qualità e con documentazione eccellente . consiglio
Prodotto già acquistato, rispecchia totalmente le caratteristiche riportate dal produttore
Data sheet
- Colour: Black
- Type: Relays
- System: Wireless
