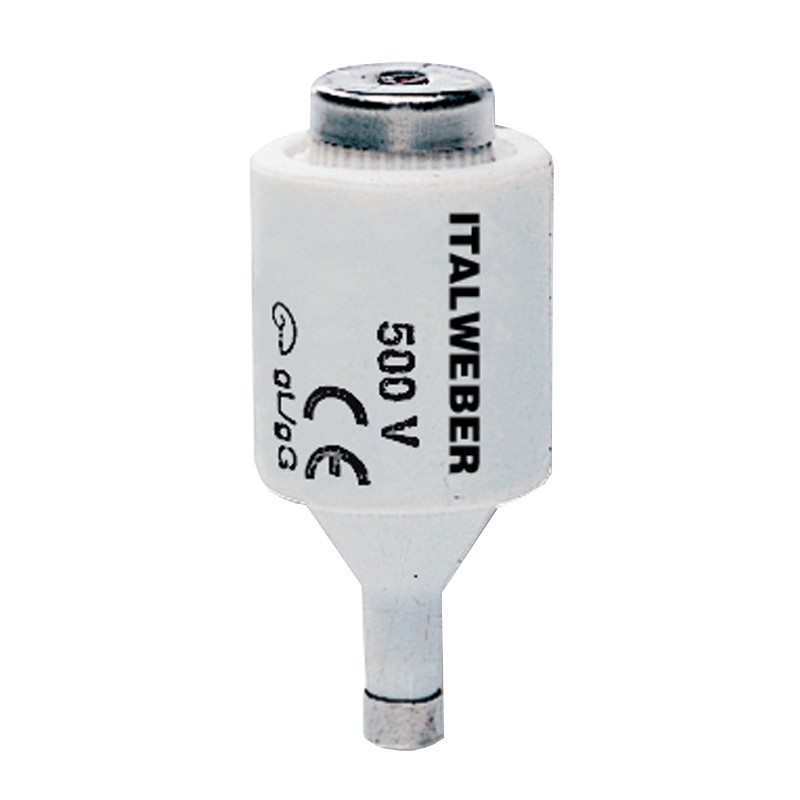

Diazed Italweber DII fuse step E27 quick curve 6A 500V 1221006
ITW 1221006
8024873046486
Diazed Italweber fuse, with the following characteristics:
- Fuse type DII (pitch E27)
- Fast curve tripping characteristic
- Rated current 6A
- Rated voltage 500Vac
- Interrupting power 50kA AC
- Dissipated power 3,0W

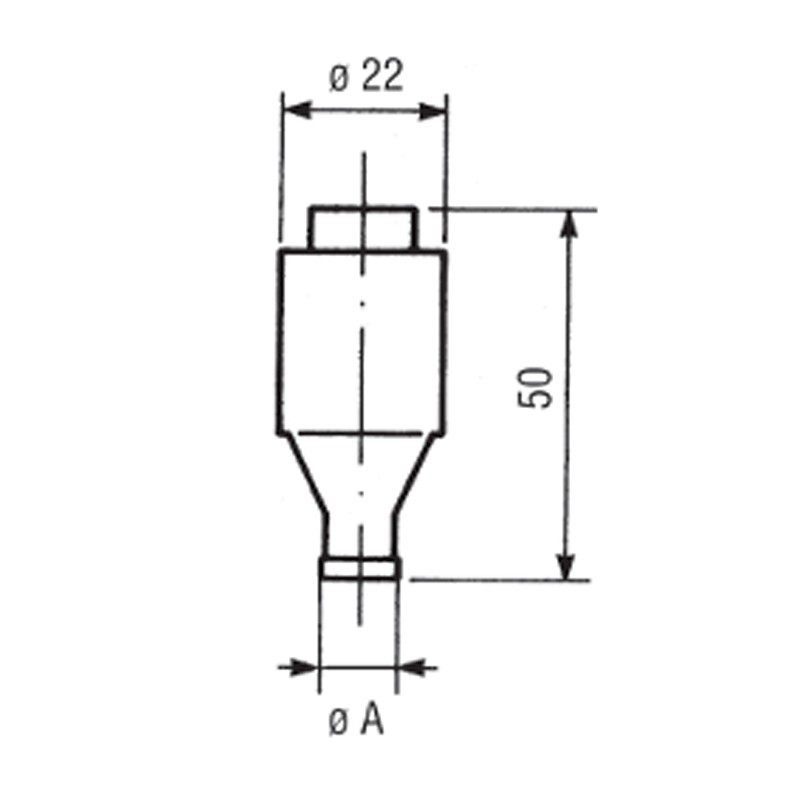

- Dimensions 22X50
![](https://www.elettronew.com/41254-large_default/diazed-italweber-dii-fuse-step-e27-quick-curve-6a-500v-1221006.jpg)
Diazed Italweber DII fuse step E27 quick curve 6A 500V 1221006
€0.91
€0.91
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 41
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Fuse type DII (pitch E27)
- Fast curve tripping characteristic
- Compliant with IEC standards CEI 32-1, CEI 32-5, IEC 60269-1, IEC 60269-3
- Rated current 6A
- Rated voltage 500Vac
- Steatite body
- Contacts in silvered copper
- Interrupting capacity 50kA AC
- Dissipated power 3,0W
- Dimensions 22X50
Data sheet
- Type:
- Fuses (Diazed/Neozed)
- Size:
- 22X50
- Voltage:
- 500VAC
- Breaking capacity:
- 50KA
- Amps:
- 6A
- Material:
- Steatite
