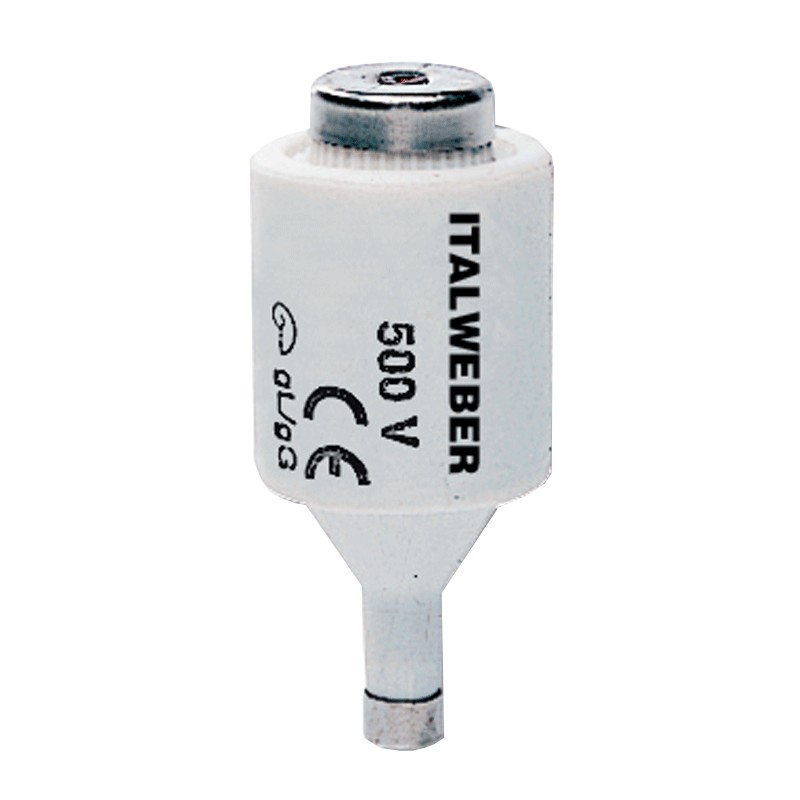

Diazed Italweber DII fuse step E27 quick curve 16A 500V 1221016


ITW 1221016 8024873046509

Diazed Italweber fuse, with the following characteristics:

  • Fuse type DII (pitch E27)
  • Fast curve tripping characteristic
  • Rated current 16A
  • Rated voltage 500Vac
  • Interrupting power 50kA AC
  • Dissipated power 3,7W

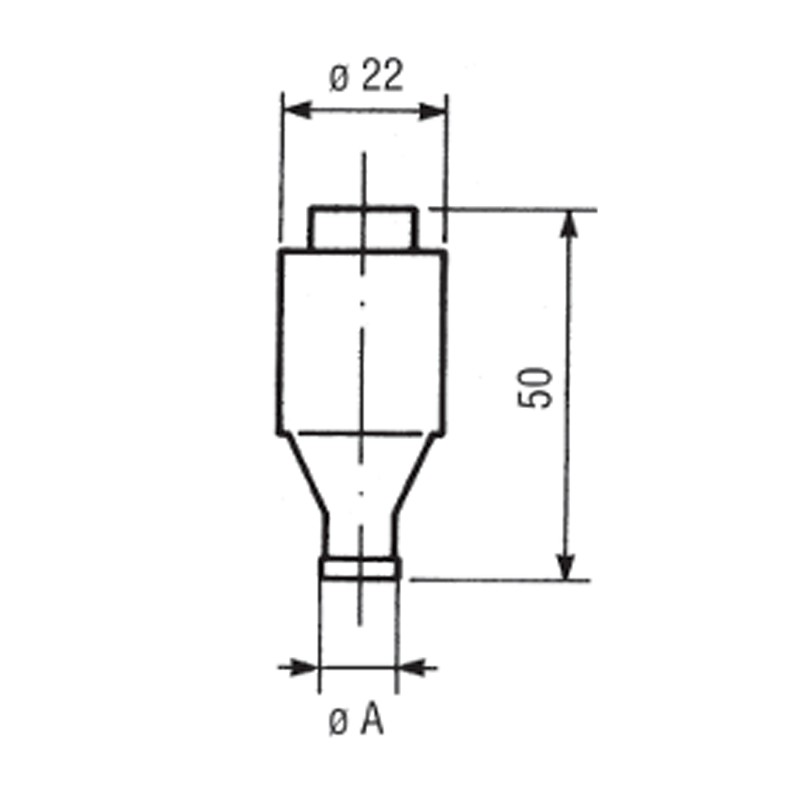

  • Dimensions 22X50
Request info about this product

Diazed Italweber DII fuse step E27 quick curve 16A 500V 1221016

€0.91
€0.91

Diazed Italweber DII fuse step E27 quick curve 16A 500V 1221016

€0.91
Tax included
klarna Pay in installments with Klarna
qty

Diazed Italweber DII fuse step E27 quick curve 16A 500V 1221016

€0.91

Buy it within and receive it from Monday, 22 April
Two-year warranty
Secure Payment
Easy return within 14 days

An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.

Features:

  • Italweber series
  • Fuse type DII (pitch E27)
  • Fast curve tripping characteristic
  • Compliant with IEC standards CEI 32-1, CEI 32-5, IEC 60269-1, IEC 60269-3
  • Rated current 16A
  • Rated voltage 500Vac
  • Steatite body
  • Contacts in silvered copper
  • Interrupting capacity 50kA AC
  • Dissipated power 3,7W
  • Dimensions 22X50

Data sheet

Type:
Fuses (Diazed/Neozed)
Size:
22X50
Voltage:
500V
Amps:
16A
Material:
Ceramic
