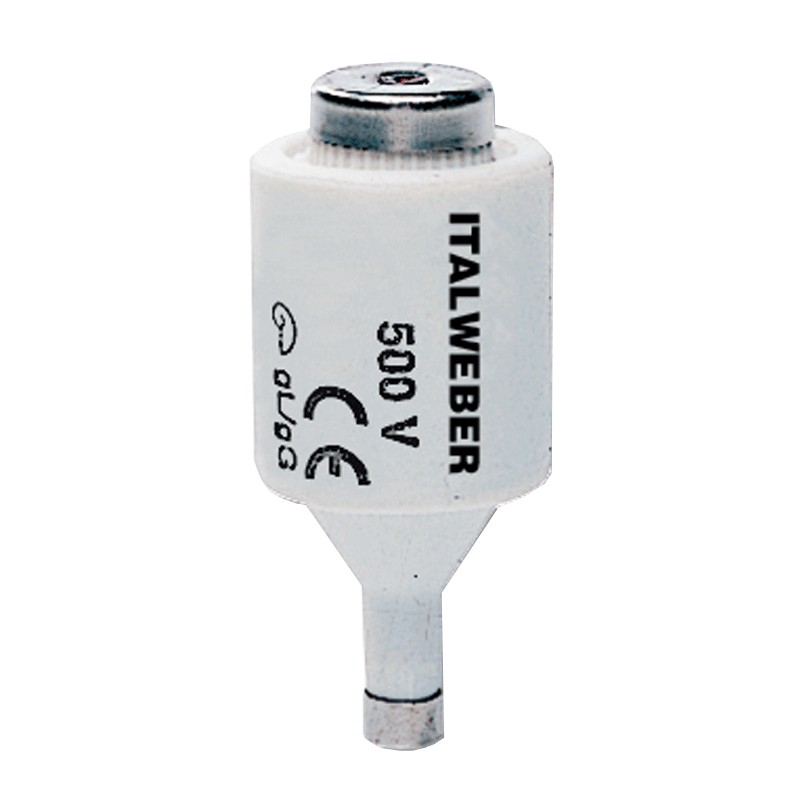

Diazed Italweber DII fuse step E27 quick curve 10A 500V 1221010

Italweber
Italweber
ITW 1221010 8024873046493

Diazed Italweber fuse, with the following characteristics:

  • Fuse type DII (pitch E27)
  • Fast curve tripping characteristic
  • Rated current 10A
  • Rated voltage 500Vac
  • Interrupting power 50kA AC
  • Dissipated power 3,4W

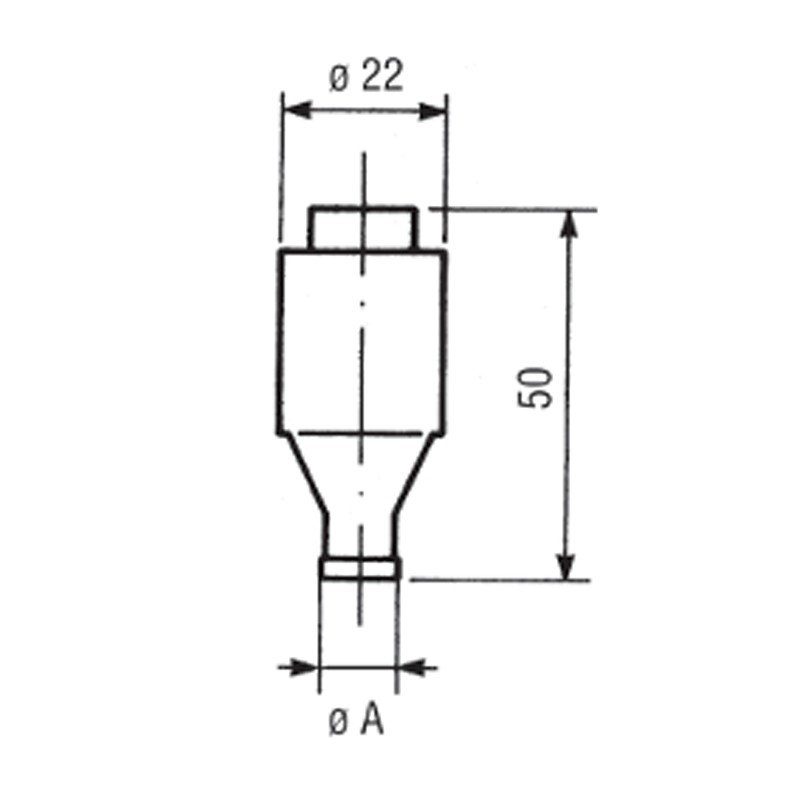

  • Dimensions 22X50
Do you have questions about this product or did you not find what you were looking for? Ask us!
Diazed Italweber DII fuse step E27 quick curve 10A 500V 1221010
€0.86
€0.86

€0.86
Tax included
Calculate shipping cost
Items Available: 40
Further availability of the manufacturer
€0.86

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.

Features:

  • Italweber series
  • Fuse type DII (pitch E27)
  • Fast curve tripping characteristic
  • Compliant with IEC standards CEI 32-1, CEI 32-5, IEC 60269-1, IEC 60269-3
  • Rated current 10A
  • Rated voltage 500Vac
  • Steatite body
  • Contacts in silvered copper
  • Interrupting capacity 50kA AC
  • Dissipated power 3,4W
  • Dimensions 22X50

There are no reviews

Data sheet

Type:
Fuses (Diazed/Neozed)
Size:
22X50
Voltage:
500VAC
Breaking capacity:
50KA
Amps:
10A
Material:
Steatite
