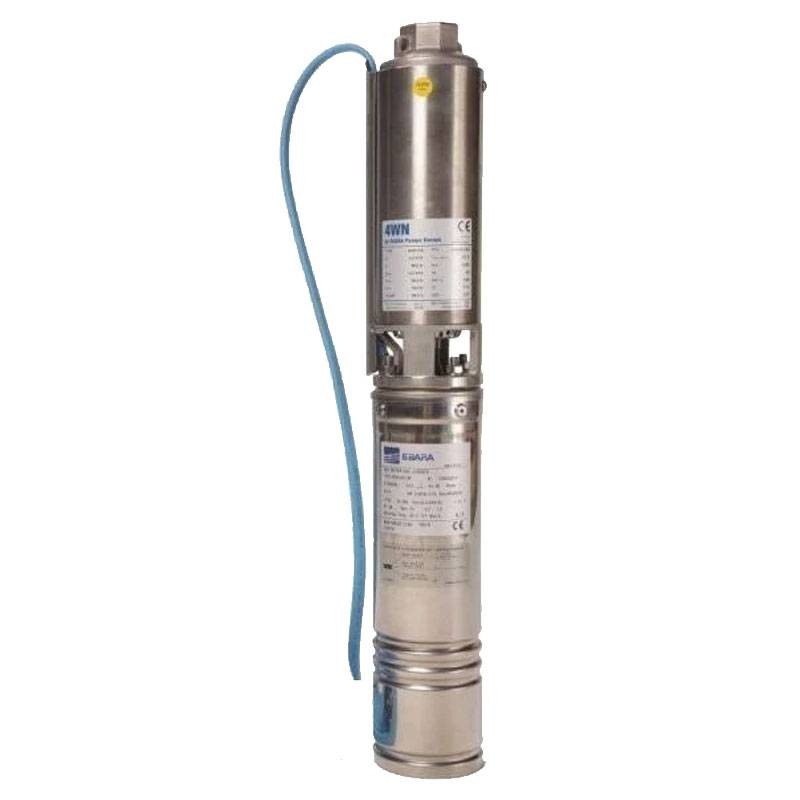

Ebara Single-phase Submersible Centrifugal Pump OF 4" 4WN5-12/1.1

Ebara Pompe
Ebara Pompe
EBA 2588050012

Ebara 4" submersible centrifugal electric pump MODEL 4WN5-12/1.1M OF:



  • For 4" wells
  • 5 m3/h at maximum efficiency
  • Number of impellers 12
  • Motor power 1.5 HP - 1.1kW
  • Power supply Single-phase 230V
  • Oil-bath motor
  • DNM connection G 1-1/2 inches
  • Weight 14.4 kg



Applications:

  • Water supply
  • Fountains and water features
  • Pressurization
  • Irrigation
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Ebara Single-phase Submersible Centrifugal Pump OF 4" 4WN5-12/1.1
€366.35
€355.36
€355.36

Lowest price in 30 days:
€366.35
Save 3%
€355.36
Tax included
Calculate shipping cost
Offer expires in
Items Available: 2
Further availability of the manufacturer
€355.36

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

AISI 304 4-gauge submersible pumps with a front shim ring. Equipped with a special Noryl floating impeller system that allows the extremely abrasion-resistant configuration. The 4WN is characterized by high quietness and is suitable for horizontal operation.




Technical features:

  • Floating impellers, extremely abrasion-resistant configuration
  • Upper and lower supports made for high strength and durability
  • Check valve made to relieve the weight of the water column and minimize water hammering
  • Hexagonal pump shaft
  • Construction in accordance with NEMA standards
  • FDA-compliant materials



Pump technical data:

  • Pumped fluid: clean, non-corrosive and non-abrasive
  • Maximum presence of sand: 50 g/m3
  • Maximum ambient temperature (liquid): 35 °C with water flow of at least 0.08 m/s
  • Maximum installation depth: 150 m
  • Maximum liquid temperature +35 Degrees (depends on the maximum motor temperature)
  • Poles 2
  • Insulation class F
  • Degree of protection IP58 (oil-bath motor version)
  • Minimum head 72 meters - 35 l/minute
  • Maximum head 31 meters - 100 l/minute



Technical data Motor:

  • 220-240V, 50Hz single-phase voltage
  • Maximum number of restarts per hour: 30



Materials:

  • Glass fiber reinforced PPO impeller
  • Outer jacket Stainless steel AISI 304 (EN 1.4301)
  • Shaft Stainless steel AISI 304 (EN 1.4301)
  • Outlet port Stainless steel AISI 304 (EN 1.4301)
  • Motor connection Stainless steel AISI 304 (EN 1.4301)



Cable sizing for applications:

  • For 22 meters cable 4x1 mm2
  • For 33 meters cable 4x1.5 mm2
  • For 53 meters cable 4x2.5 mm2
  • For 85 meters cable 4x4 mm2
  • For 127 meters cable 4x6 mm2
  • For 210 meters cable 4x10 mm2



Dimensions:

  • 818 mm height

There are no reviews

Data sheet

Type:
Electric submersible pumps
Connections:
1-1/2 inches
