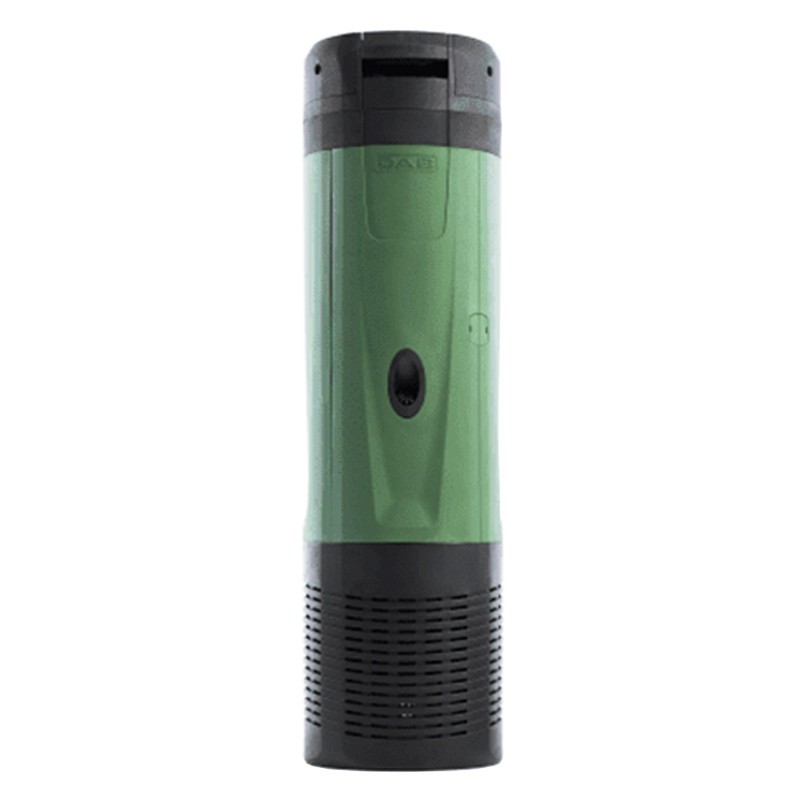

It is suitable for use in homes and residential for pressurization, reuse of rainwater and the activity of gardening and irrigation. You can install the pump in horizontal. Available in version X with the filler neck 1 and kit X that includes the intake pipe is 1 metre and the float to prevent the intake of impurities from the bottom. The entire pump is rated IP 68, with the accessory DOC68 (provided separately), becomes a pump to the surface, IP 68 for use under head. On request is available the version certified for drinking water. The expansion vessel is built in, you do not need an expansion vessel additional.
CONSTRUCTION FEATURES PUMP
Pump body in techno-polymer to resist corrosion and oxidation. Non-return valve integrated. Filter debris integrated. Pressure relief valve to resist the formation of ice in the pipes and protect from water hammer. On the pump body is a vent valve that improves the priming during the initial installation or in the event of the emptying of the cistern/well and a carrying handle in technopolymer. Expansion vessel built in which does not require maintenance or recharging, capacity of 0.04 liters sized to not cycle the pump in case of small leaks and to compensate for surges. The coupling between the three impellers made of technopolymer, the ring floating disk and the wear plate both in stainless steel allow it to wear limited hydraulics. The suction height is adjustable using the appropriate accessory: 3,5 - 4 - 6 - 8 cm.
CONSTRUCTION FEATURES MOTOR
Motor asynchronous submersible, cooled by the pumped liquid. The motor shaft-side hydraulic stainless steel AISI 303. Double mechanical seal in the room of oil, which ensures the water tightness of the pump. Starting capacitor and thermal protection anti-overheating of the engine integrated. Cable-coupling/quick-release for easy installation within tanks or cisterns. Connection of the power cord strain relief.
THE CHARACTERISTICS OF THE ELECTRONIC
The operation of the electronic allows the pump to start and switch off automatically according to the requirements of the plant and protects it from dry running. Pocket NFC (Near Field Communication) for the use of a floating sensor (supplied separately) can be connected without opening the pump, thus maintaining the watertight seal.
Features:
- Power 2 nominal 0,6 kW - 0,8 HP
- Power supply 50Hz 1 x 220-240 V ~
- P1 0,93 kW
- In 4.2 A
- Maximum immersion depth: 7/12 m
- Type of pumped liquid: Clean, free from solids or abrasive material, not viscous, not aggressive, not crystallised and chemically neutral
- Free passage: 2 mm
- Minimum level of suction: 110 mm
- Water level residual minimum: 35 mm
- Temperature min. and max. of the liquid: From +0°C to +50°C
- Ambient temperature max.: <0°C / +50°C
- Maximum immersion depth: 15 m
- Flange or thread outlet: Threaded, 1 1/4
- Material of construction impeller/s: Technopolymer/stainless Steel AISI304
- Maximum number of starts per hour: 60/h
- Degree of protection of the pump: IP 68
- Suitable for continuous use: Yes
- Thermal classification of the motor insulation: F
- Type of installation: Fixed, horizontal or vertical. Submerged or semisommersa. Is it possible to install on the surface, under the sash, in vertical position with external accessory DOC68 (provided separately).
