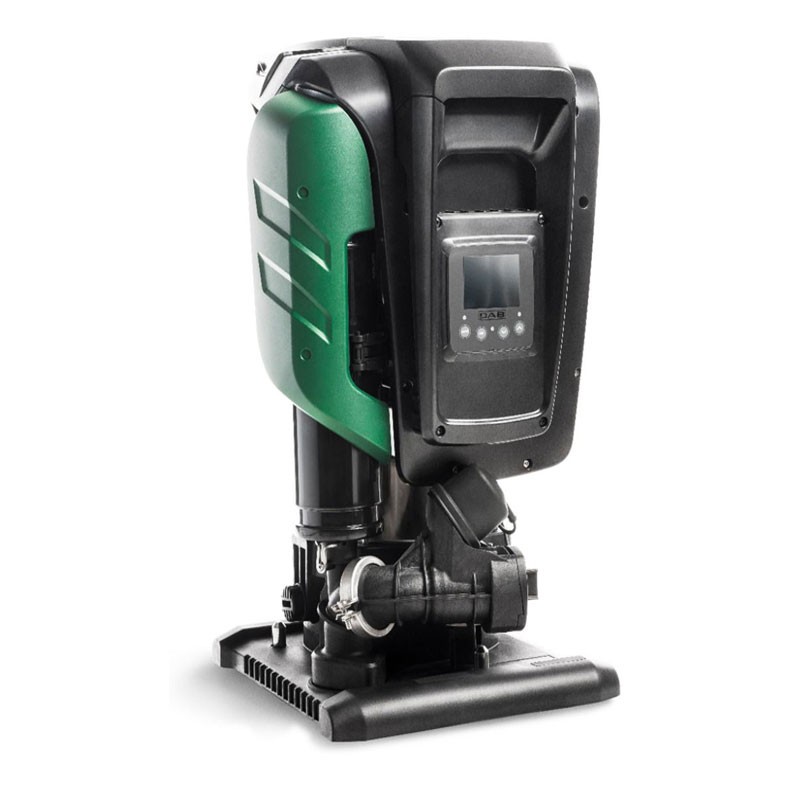

Electronic Pressure Booster System Dab ESYBOX MAX 60/120 Single-phase 60199039

Dab
Dab
DAB 60199039 8059893247346

Electronic Pressurization System with inverter Dab ESYBOX MAX 60/120 in residential, civil and commercial areas.

  • 3 Impellers
  • Power supply 1x208-240 V
  • Integrated inverter
  • Suction connection 2"
  • Integrated WIFI
  • Delivery connection 11/4
  • Pump body material in technopolymer.

Applications: Water supply for livestock, Pressure boosting building / condominium, Garden irrigation, Pressurization in house / apartment, Domestic use of rainwater.

  • wifi
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Electronic Pressure Booster System Dab ESYBOX MAX 60/120 Single-phase 60199039
€2,472.58
€2,398.40
€2,398.40

Lowest price in 30 days:
€2,472.58
Save 3%
€2,398.40
Tax included
Calculate shipping cost
Offer expires in
Items Available: 6
Further availability of the manufacturer
€2,398.40

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

PUMP FEATURES

  • Electronic vertical multi-impeller pump, with display, two pressure sensors (suction and delivery), check valve on delivery and integrated expansion tank. Pump body and impellers in technopolymer with steel jacket.

MOTOR CHARACTERISTICS

  • Water-cooled permanent magnet motor, stainless steel motor jacket. Motor shaft in AISI 303 stainless steel.

ELECTRONIC FEATURES

  • The presence of the inverter keeps the pressure constant by varying the number of motor revolutions according to the request. The expansion module (esy I/O, available as an accessory) gives the possibility to interface Esybox Max with the other elements of the system (BMS). Integrated protections: dry running, amperometric and abnormal voltage protection, overtemperature, frost, anti-blocking and anti-cycling.

DCONNECT

  • Thanks to the DConnect app and integrated wi-fi, you can configure and view the operating parameters on the large display of Esybox Max, on site or remotely with DConnect service active and with Internet connection. Directly from your smartphone or tablet you can control and manage system pressure, alarms and instantaneous and historical consumption. DSync technology optimizes the Esybox Max user experience. Using their smartphone or tablet, the installer interfaces with the pump which automatically detects the language, time and unit of measure of the installation location. In the case of a multiple system, once the facilitated installation of the first pump is completed, the Esybox Maxes automatically synchronize with each other. the DSync allows dialogue with external systems through the Modbu protocol.

Features:

  • Voltage 230 V
  • Power 2680 Watt
  • Amperage 11,5
  • Frequency 50/60 Hz
  • Degree of protection IPX5
  • Insulation class F
  • Sound level < 45 dB
  • Maximum temperature of the liquid 50°C
  • Maximum suction depth 8 Meters
  • Number of simultaneous sprinklers/users 5+ pieces
  • Continuous use (>3 hours) Yes
  • Automatic On/Off Yes
  • Pump Dry Run Protection Yes
  • Variable water supply (inverter) Yes

There are no reviews

Data sheet

Type:
Pressurizing water
