DAB E.SYBOX electronic pressurization system
Suitable for use with potable water, in domestic, gardening and irrigation systems, suitable for creating groups of up to 4 pumps. E.SYBOX does not require any additional components for its installation.
Esybox is DAB's new integrated system for water pressurization in domestic and residential environments. Esybox does not require any additional components for its installation. It consists of a self-priming multistage pump, Inverter management electronics, pressure and flow sensors, a high-resolution swiveling LCD display, and an integrated 2-liter expansion tank.

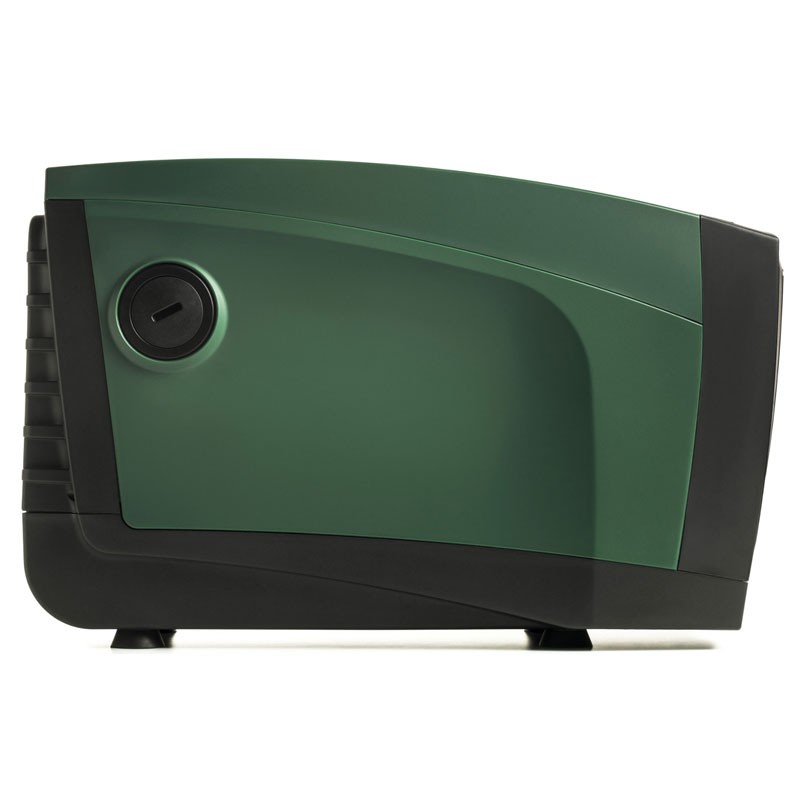

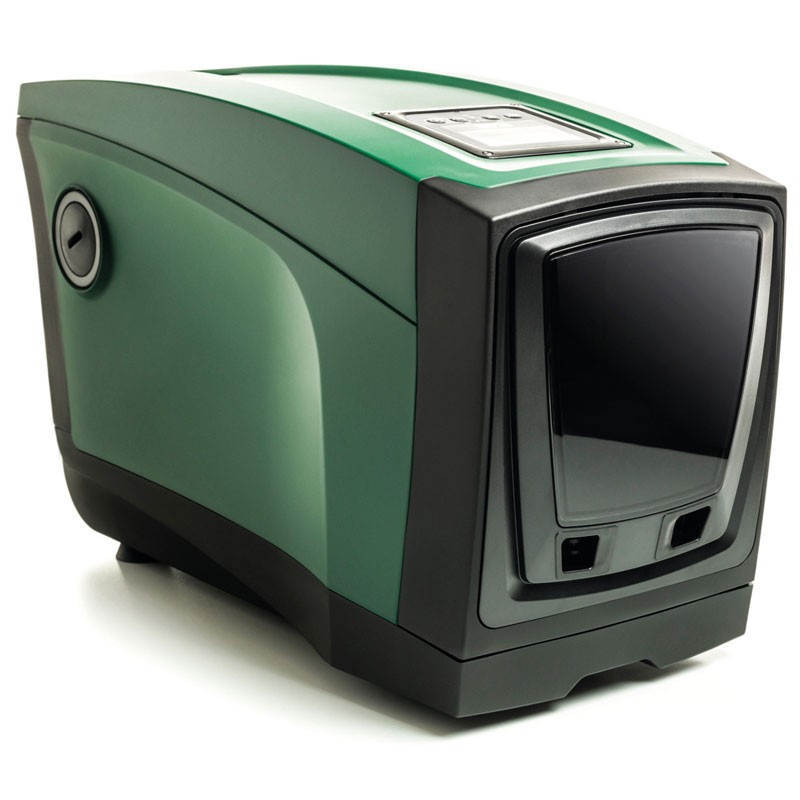

It can be installed either vertically or horizontally and even in tight spaces without high air exchange. The water-cooled motor, protective ABS hulls with sound-absorbing function, anti-vibration feet and electronics make it an absolutely silent (45 dB(A)) and compact product. The wireless device facilitates the creation of pressurization groups and connectivity with other DAB devices.
Construction features:
- It consists of a self-priming multistage pump, electronic management inverter, pressure and flow sensors, high-resolution swiveling LCD display, and an integrated 2-liter expansion tank.
- It can be installed both vertically and horizontally and even in tight spaces without high air exchange.
- Accessories (e.sywall, e.sydock, e.sytwin, e.sytank) enable a variety of installation possibilities
- The water-cooled motor, protective ABS hulls with sound-absorbing function, anti-vibration feet and electronics make it an absolutely silent (45 dB in standard use) and compact product.
- The wireless device facilitates the creation of pressurization groups and connectivity with other DAB devices (such as e.sylink).
- Constant pressure can be set from 1 to 6 bar for E.SYBOX.
Efficient and integrated
The features and design of Esybox make it an easily adaptable system for any type of installation. Horizontal or Vertical, in a ventilated room or in a recess, any environment will be perfect to make the best use of Esybox, which guarantees a reduction of at least 30 percent in footprint compared to any other traditional system.
External connections

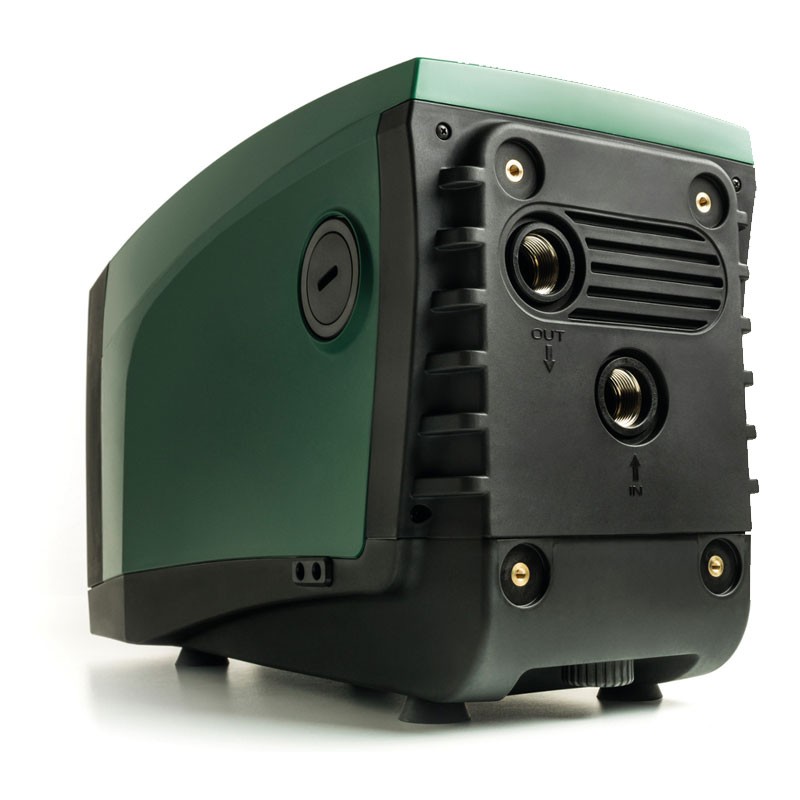

Connections covered by plugs equipped with a gasket. Easy to remove, they allow you to choose which system inputs and outputs to use depending on the installation.
Display

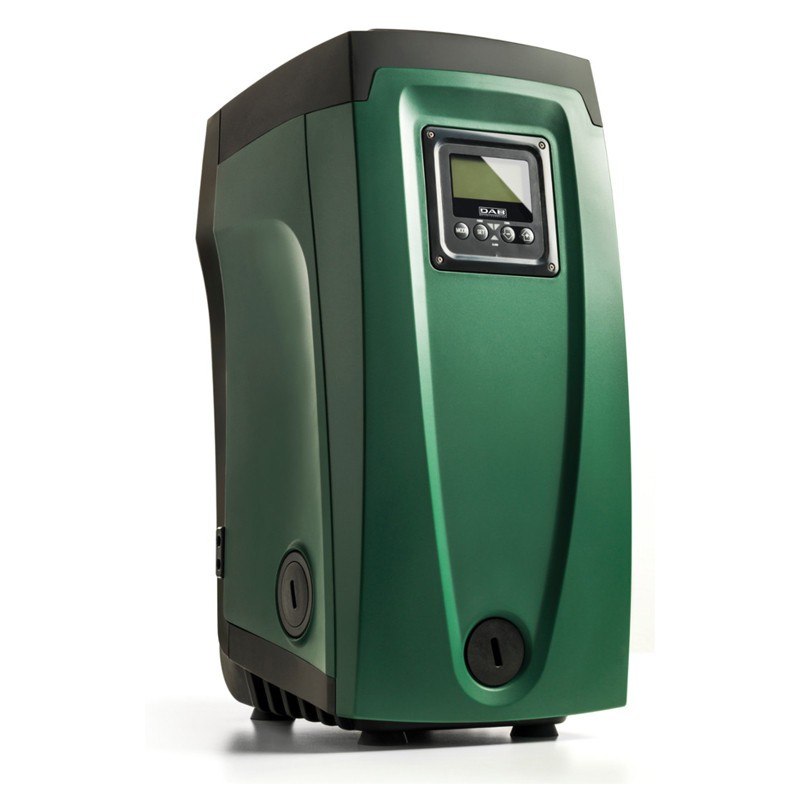

High-resolution 70x40 mm LCD display that can be oriented to adapt readability to different installations. The intuitive interface allows access to all information and customization of the main settings according to the specificity of the application.
Technical compartment
Allows easy access to the rotor shaft to the vertical load cap and expansion tank. It is also a convenient storage for maintenance tools and user guide, which are functional in the use of the system.
| Feature | Detail |
|---|
| Suitable for. |
Villas and small apartment buildings up to 6 floors and maximum 9 apartments |
| Flow rate |
Up to 7.2 m³/h |
| Headroom |
Up to 65 m |
| Power supply |
Single-phase 220/240 V / 50 Hz |
| Maximum power |
1.55 kW |
| Pumped liquid |
Clean, free of solids or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral |
| Maximum liquid temperature |
40°C |
| Maximum ambient temperature |
50°C |
| Maximum suction depth |
Self-priming up to 8 meters |
| Maximum operating pressure |
8 bar (800 kPa) |
| DNA GAS |
1" |
| DNM GAS |
1" |
| Motor protection rating |
IPX4 |
| Motor insulation class |
F |
| Impellers |
Made of technopolymer |
| No. of impellers |
5 |
| Inverter |
Integrated |
| Display |
Adjustable high resolution LCD |
| Noise level |
Extremely quiet (45 dB(A)) |
| Power cord |
1.5 m with schuko plug |
| Installation |
Fixed, horizontal, vertical or wall-mounted (via special accessory) |
| Expansion tank |
2 liters built-in |
| Connection |
Up to four Esyboxes can be connected together |
| Remote control |
Through DConnect service (DConnect Box required, not included) |
| Certifications |
WRAS, ACS, NSF |
| Dimensions |
36.2 cm length, 26.3 cm width, 56.4 cm height |
| Weight |
27 kg |
