Wilo Isar water pressure boosting pump BOOST5-E-3-2G
WIL 4271548
4062679450308
The Wilo Isar BOOST5-E-3-2G booster pump is an automatic and silent Plug & Pump solution, ideal for domestic use, irrigation, and rainwater harvesting. Constant pressure regulation up to 5.5 bar.
- Nominal flow rate: 3 m³/h
- Motor power: 0.75 kW
- Nominal current: 7.5 A
- Rotational speed: 3600 rpm
- Adjustable pressure: up to 5.5 bar
- Suction/discharge connections: G 1”
- Protection class: IPX4
- Automatic and silent operation
- Integrated frequency converter
€658.80
Items Available: 3
Wilo Isar BOOST5-E-3-2G: efficient and silent pressurization
The Wilo Isar BOOST5-E-3-2G is an automatic and self-priming water pressure boosting pump, designed to ensure constant water supply in domestic and residential settings. Thanks to its horizontal multistage construction, it offers high hydraulic efficiency and extremely silent operation, ideal for homes, gardens, and rainwater harvesting systems.
The Plug & Pump system allows for quick and uncomplicated installation: just connect it, set the desired pressure via the integrated LED display, and the pump is ready to use.
Automatic regulation and energy saving
Equipped with an integrated frequency converter, the Isar BOOST5-E-3-2G automatically modulates the motor speed according to water demand, maintaining constant pressure and minimizing electrical consumption.
The electronic regulation ensures stable operation even in case of flow variations, avoiding annoying pressure fluctuations. The start-up is progressive (soft start), to protect both the pump and the system from water hammer and mechanical stress.
Total safety and protection
Wilo has integrated numerous electronic safety systems into the BOOST5-E-3-2G, ensuring reliability and long life:
- Dry-running protection
- Overpressure protection
- Overtemperature control for motor and electronics
- Overcurrent and voltage variation protection (over/under)
These functions protect the device and ensure service continuity even in difficult conditions.
Compact design and ease of use
The machine body features a modern and compact structure, easily integrable into any technical or domestic environment.
The backlit LED display with control buttons allows real-time monitoring of pressure and operational status, making use simple and intuitive. Thanks to the integrated silencers, the pump operates at an extremely low noise level, ensuring optimal acoustic comfort.
Simplified installation and maintenance
The pump is supplied in a complete version with cable and plug, ready to use. The self-priming system allows for quick installation without the need for additional components. The package includes assembly, use, and maintenance instructions, for safe and immediate product management.
Technical characteristics
| HYDRAULIC DATA | |
|---|---|
| Nominal flow rate (QN) | 3 m³/h |
| Maximum liquid temperature (Tmax) | 40 °C |
| Minimum liquid temperature (Tmin) | 0 °C |
| Minimum ambient temperature | 0 °C |
| Maximum ambient temperature | 40 °C |
| MATERIALS | |
| Pump body | PA66-GF50 |
| Impeller | PPE/PS-GF20 |
| Shaft | Stainless steel |
| Shaft seal | BQ7P2GG |
| MOTOR DATA | |
| Nominal motor power (P2) | 0.75 kW |
| Nominal current (IN) | 7.5 A |
| Nominal speed (n) | 3600 1/min |
| Insulation class | F |
| Motor protection rating | IPX4 |

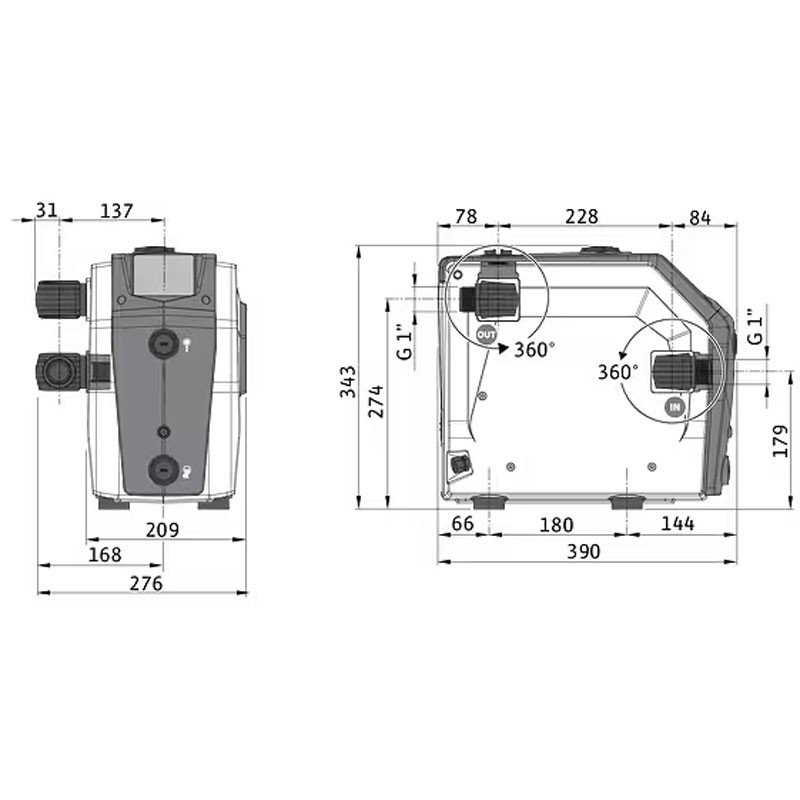

| MOUNTING DIMENSIONS | |
| Suction side connection (DNs) | G 1" |
| Discharge side connection (DNd) | G 1" |
Produit de bonne qualité, facile à installer, un peu bruyant quand même (par rapport à un SCALA2)
Data sheet
- Type: Pressurizing water
