DAB Pressure booster pump assembly 2 E.sybox with E.sytwin 60170272
DAB 60218693
8059893344670
The DAB 2 E.sybox Pump Unit with E.sytwin is the ideal solution for water pressurization in residential and commercial environments. This autoclave pump system is perfect for apartment buildings and villas due to its ability to provide constant and stable pressure while reducing energy consumption.The item consists of:
-

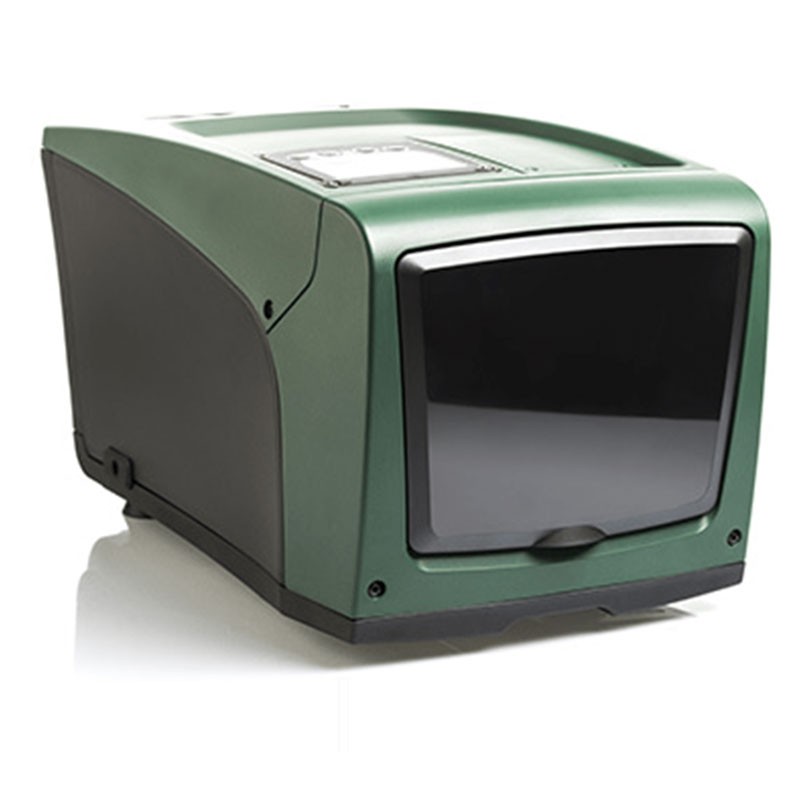

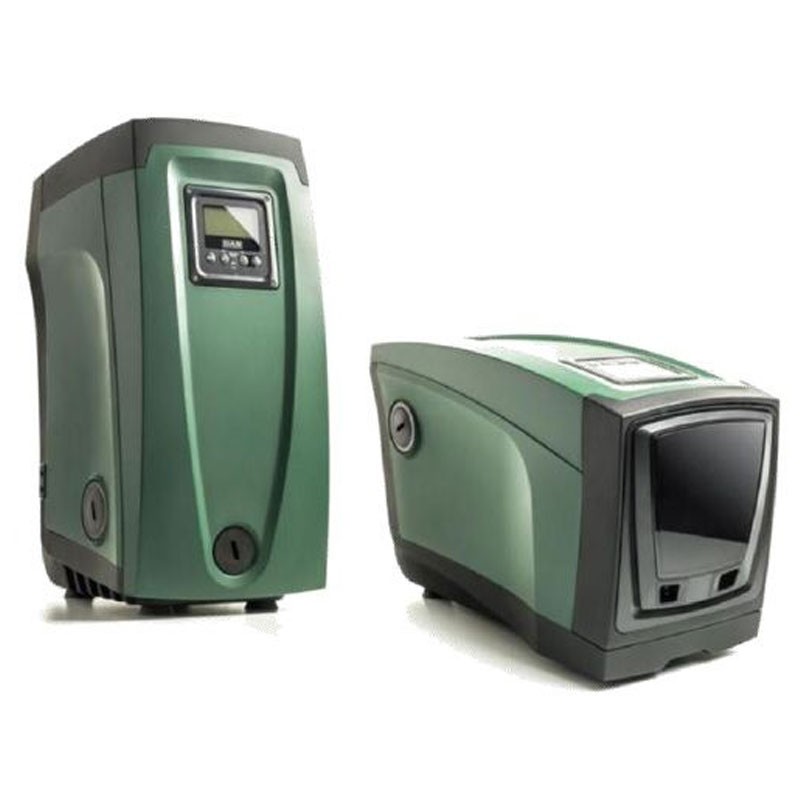

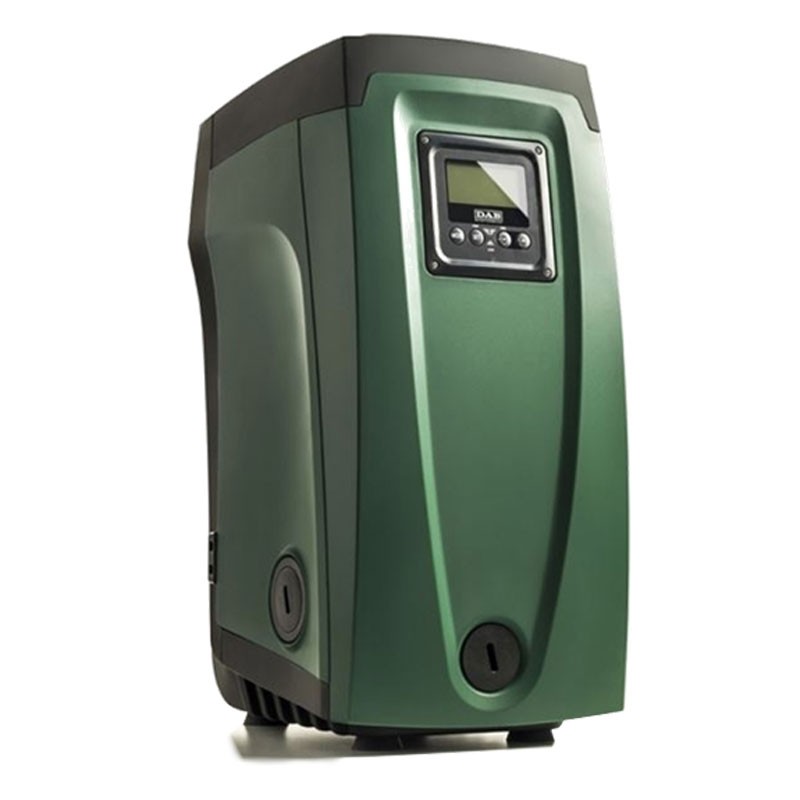

2 E.sybox pressurization pumps
-

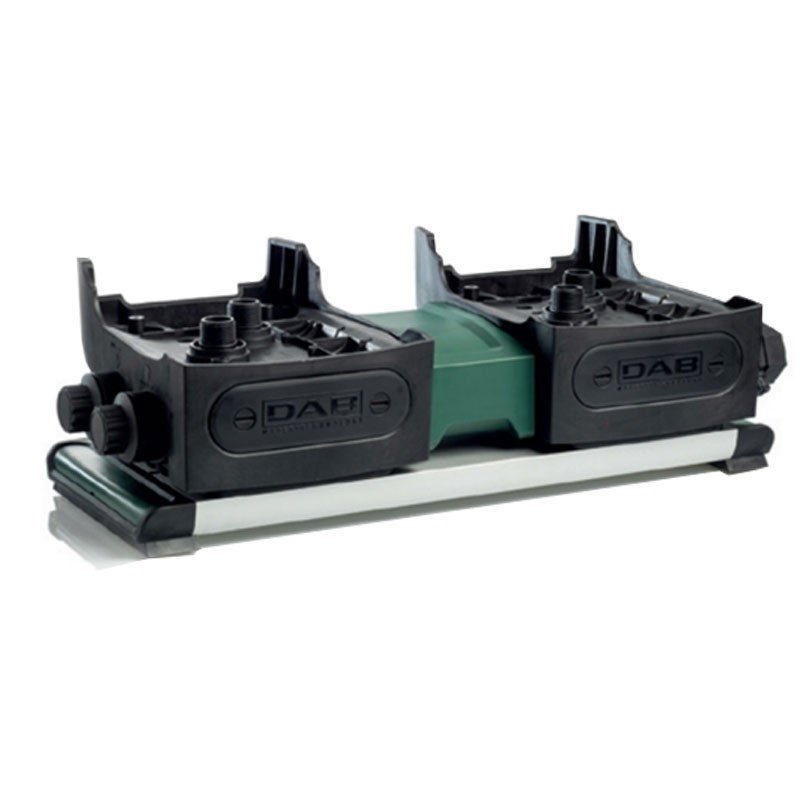

1 E.sytwin quick connection base
-
Flow rate up to 240 l/min
-
Head up to 65 m
-
2 x 1.55 kW motors with 5 impellers
-
Outlet 11/4
€2,528.47
Items Available: 3
DAB 2 E.sybox Pump Group with E.sytwin
The DAB 2 E.sybox Pump Group with E.sytwin is an advanced solution for water pressurization, consisting of two E.sybox units connected via the E.sytwin base . With integrated inverter technology, the system adjusts the speed of the motors according to water demand, ensuring constant pressure and optimizing energy consumption. This unit is perfect for domestic, commercial and gardening water systems, ensuring high reliability and performance.
Key advantages of the DAB 2 E.sybox pump unit with E.sytwin
One of the distinguishing features of this system is its quiet operation. With a noise level of only 45 dB(A), the system is ideal for installation in noise-sensitive environments such as residences and offices. Energy efficiency is another strong point: thanks to inverter technology, the system automatically adjusts power according to demand, resulting in energy savings of up to €1,000 per year.
Applications of the DAB 2 E.sybox Pump Group with E.sytwin
The DAB 2 E.sybox Pump Group with E.sytwin is perfect for a wide range of applications, including:
- Domestic pressurization: ideal for apartment buildings up to 9 floors with up to 17 apartments.
- Irrigation: great for gardens, vegetable gardens and rainwater collection tanks.
- Wells and water from natural springs: thanks to self-priming pumps, the system can draw water from wells up to 8 meters deep.
Ease of Installation and Maintenance.
This pressurization system is designed to be easily installed even in small spaces, thanks to its compact size. Installation is quick and easy thanks to the E.sytwin base, which allows the components to be assembled without complications. In addition, the ability to manage the system remotely via the DAB DConnect app (optional interface) enables comprehensive management and constant monitoring of operations.
Detailed Technical Specifications
- Maximum flow rate: 240 l/min (120 l/min per unit)
- Maximum head: 65 m
- Power per unit: 1.55 kW (2.11 HP)
- Suction depth: up to 8 m (self-priming)
- Operating pressure: 5-6 bar adjustable
- Dimensions (WxDxH): 730 x 750 x 350 mm
- Weight: 66 kg (assembled kit)
- Material: Self-priming multistage pump with technopolymer impellers
- Expansion tank: 2 liters per unit
- Remote control: via DAB DConnect app (optional interface)
There are no reviews
Data sheet
- Type: Pressurizing water
