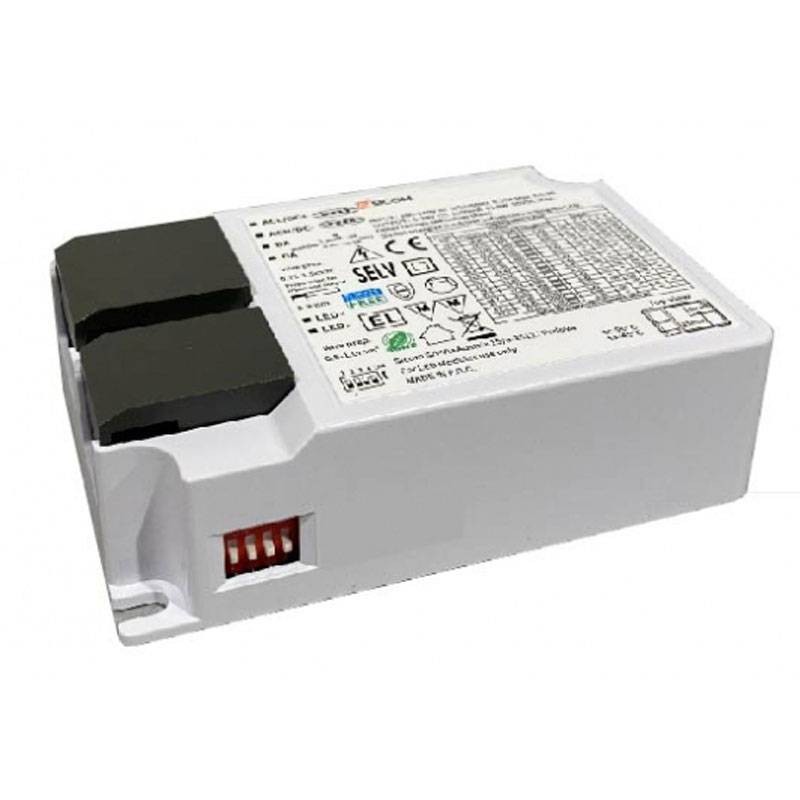

Sicom Dali Push 42W 450-1100mA Led Power Supply Driver 5601319
SOL 5601319
8050038308816
Sicom Dali Push constant current Led Driver Power Supply with the following characteristics:
- Output power: 42 watts
- Input voltage: 200-240VAC
- Output voltage: 6-42V
- Output current: 450-1100 mA
- Degree of protection: IP20
- Soft dimming and flicker-free at each brightness level

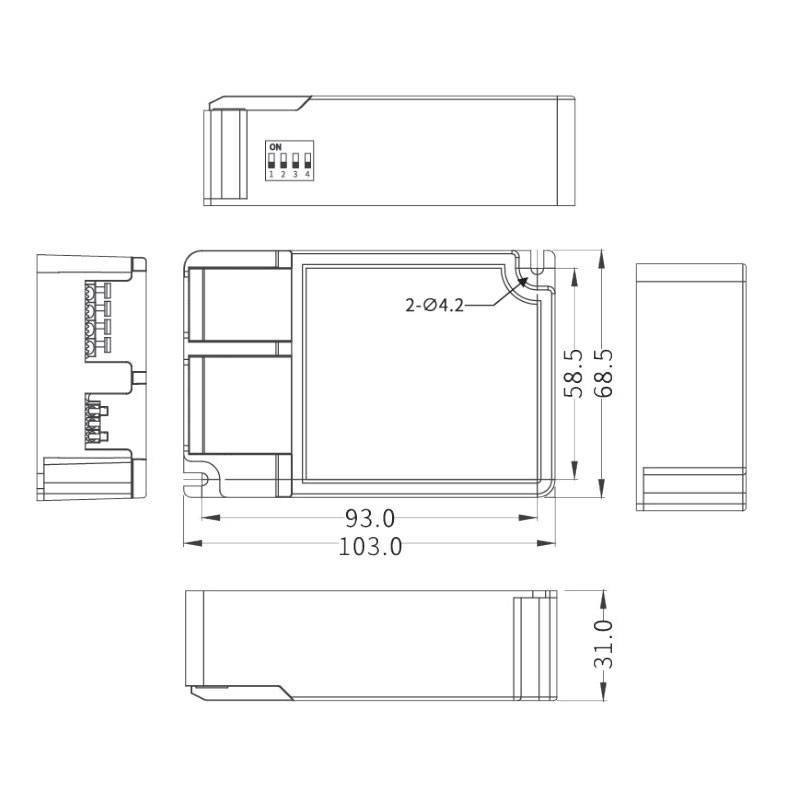

- Dimensions: 103x68.5x31 mm (LxBxH)
€33.81
Items Available: 17
: 16
Features:
- Up to 16 DIP-switch selectable output current levels, ease in setting light intensity
- Soft and flicker-free dimming at each brightness level, in line with new requirements for ErP certification
- Output current is the same for multiple simultaneously dimmed drivers
- Dimming range from 1% -100% with 2% output current accuracy
- Input power standard <0.5W, in line with new requirements for ErP certification
- High power factor, high efficiency, low THD
- Screwless mounting system for easy installation
- Independent input and output terminal block with pressure clamping
- Input cable cross section for proper clamping 0.75-2.5mm²
- Intelligent hot-plug protection
- SELV and Class II design, suitable for installation in the lamp head
Features:
- Rated voltage: 200-240VAC/200-240VDC
- Operating voltage range: 180-264VAC/180-264VDC
- Protection Class II, SELV
- Output current accuracy 1%
- Dimming range 1-100%
- Power-on time <0.6s
- Standby power <0.5W
- Open circuit voltage <50V
- Isolation voltage L-N: 2KV
- Fliker-free Pst LM <1,SVM <0.4
- Operating temperature -20°C - +45°C
- IP rating IP20
- Rated service life 100,000 hours
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: 41 to 50W
- Output voltage: 42 Vdc
- Input voltage: 200/240V
