Sicom Dali Push 30W 250-800mA Led Power Supply Driver 5601316


SOL 5601316 8050038308809

Sicom Dali Push constant current Led Driver Power Supply with the following characteristics:



  • Output power: 30 watts
  • Input voltage: 200-240VAC
  • Output voltage: 6-42V
  • Output current: 250-800 mA
  • Degree of protection: IP20
  • Soft dimming and flicker-free at each brightness level

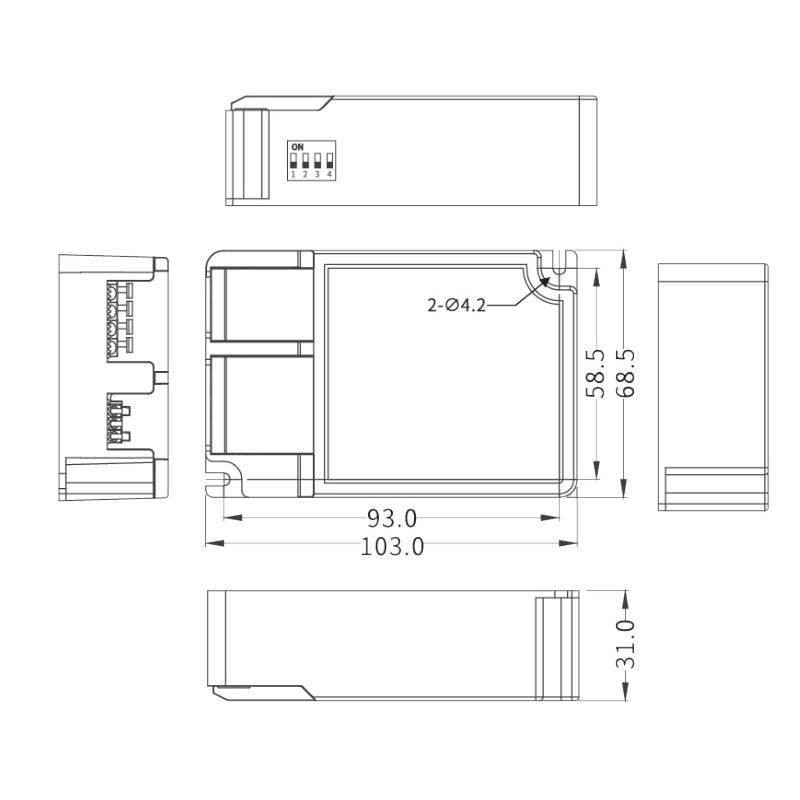

  • Dimensions: 103x68.5x31 mm (LxBxH)
  • dimmable
  • Request info about this product

    Sicom Dali Push 30W 250-800mA Led Power Supply Driver 5601316

    €31.67
    €31.67

    Sicom Dali Push 30W 250-800mA Led Power Supply Driver 5601316

    €31.67
    Tax included
    klarna Pay in installments with Klarna
    qty

    Sicom Dali Push 30W 250-800mA Led Power Supply Driver 5601316

    €31.67

    Buy it within and receive it from Wednesday, 29 May
    Two-year warranty
    Secure Payment
    Easy return within 14 days

    Features:

    • Up to 16 DIP-switch selectable output current levels, ease in setting light intensity
    • Soft and flicker-free dimming at each brightness level, in line with new requirements for ErP certification
    • Output current is the same for multiple simultaneously dimmed drivers
    • Dimming range from 1% -100% with 2% output current accuracy
    • Input power standard <0.5W, in line with new requirements for ErP certification
    • High power factor, high efficiency, low THD
    • Screwless mounting system for easy installation
    • Independent input and output terminal block with pressure clamping
    • Input cable cross section for proper clamping 0.75-2.5mm²
    • Intelligent hot-plug protection
    • SELV and Class II design, suitable for installation in the lamp head




    Features:

    • Rated voltage: 200-240VAC/200-240VDC
    • Operating voltage range: 180-264VAC/180-264VDC
    • Protection Class II, SELV
    • Output current accuracy 1%
    • Dimming range 1-100%
    • Power-on time <0.6s
    • Standby power <0.5W
    • Open circuit voltage <50V
    • Isolation voltage L-N: 2KV
    • Fliker-free Pst LM <1,SVM <0.4
    • Operating temperature -20°C - +45°C
    • IP rating IP20
    • Rated service life 100,000 hours

    Data sheet

    Type:
    Power supplies
    Voltage:
    6-42V
    Degree of protection:
    IP20
    Watts:
    10 to 50W
    Dimmable:
    Yes
