Osram Ledvance Led Strips Power Supply 30W 24V IP66 DRPFM3024P
LDV DRPFM3024P
4058075239890

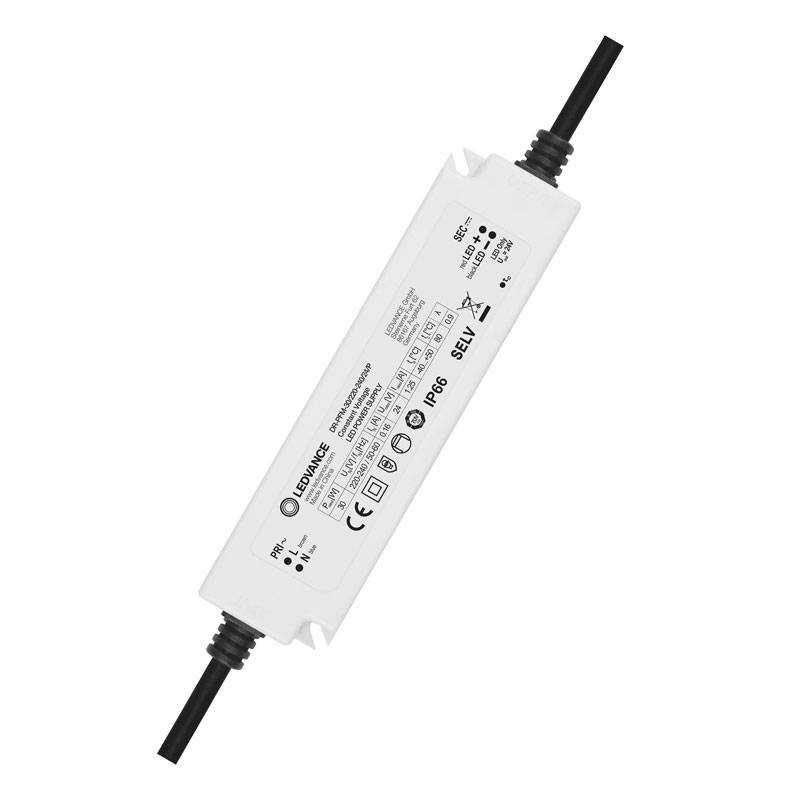

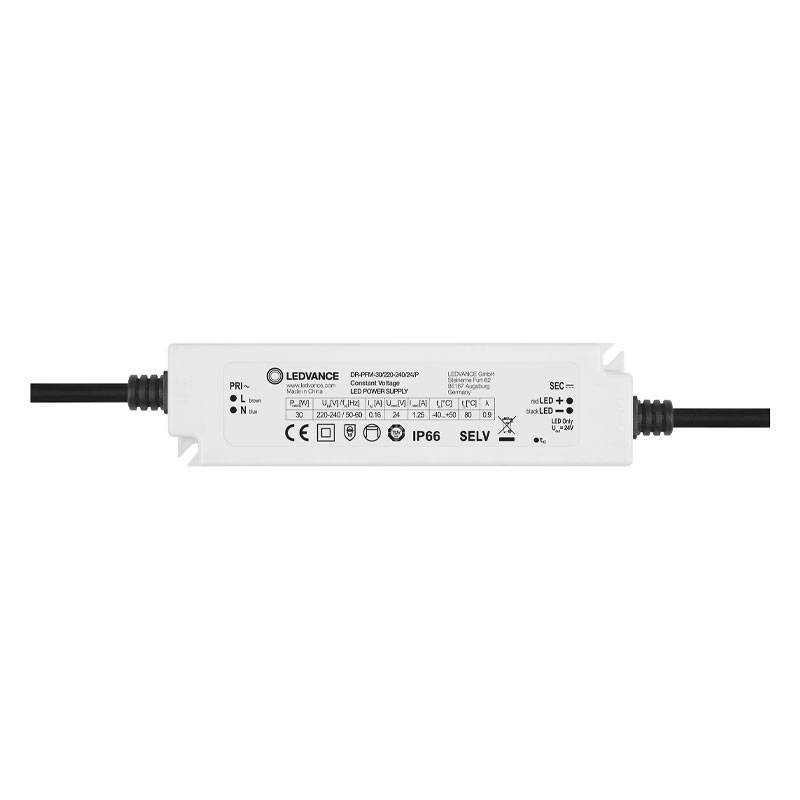

Osram Ledvance DR-PFM-30 power supply for Led strips with the following characteristics:
- Power: 30 Watts
- Voltage: 220/240 V
- Output voltage: 24 V
- Current type: DC
- Degree of protection: IP66
- Non-dimmable
€27.41
Items Available: 25
: 14
Characteristics:
- Rated current: 164 mA
- Rated output current: 1250 mA
- Inrush current: 37 A
- Output ripple current (100 Hz): 2.27%
- Mains frequency: 50/60 Hz
- Overvoltage capability (L/N-ground): 6kV
- Peak capacity (LN): 4kV

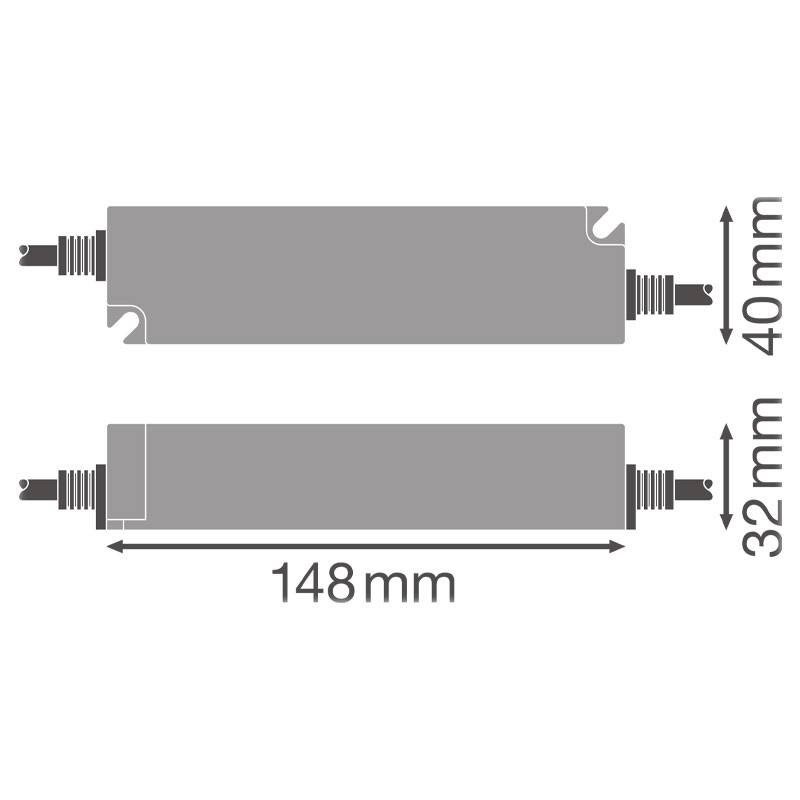

- Length: 148mm
- Distance between mounting holes, length: 136mm
- Width: 40mm
- Height: 32mm
- Input/output side cable cross-section: 1mm²
- Pre-wired
- Ambient temperature range: -40/+50 degrees
- Maximum temperature at test point tc: 80 degrees C
- Temperature range during operation: -40/+50 degrees
- Service life: up to 50,000 h (at maximum temperature tc)
Product advantages:
- Perfectly matched to flexible 24 V LED strips
- Very stable power output
- Quick and easy installation due to pre-wiring
- High efficiency and reliability
- Installation in very cold and hot environments
Areas of application:
- Suitable for indoor and outdoor installations
- Lighting of facades and buildings
- Ideal for lighting public spaces
- Bathrooms, kitchens and outdoor areas
- Offices, shopping malls, hospitals, restaurants, hotels
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP66
- Watts: From 21 to 30W
- Output voltage: 24 Vdc
- Input voltage: 220/240V
