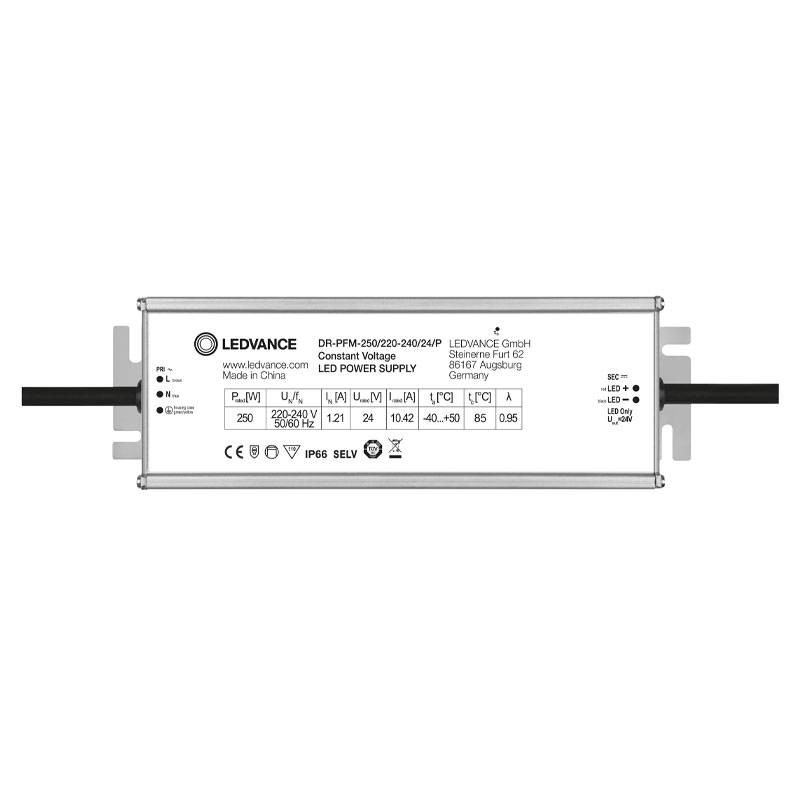

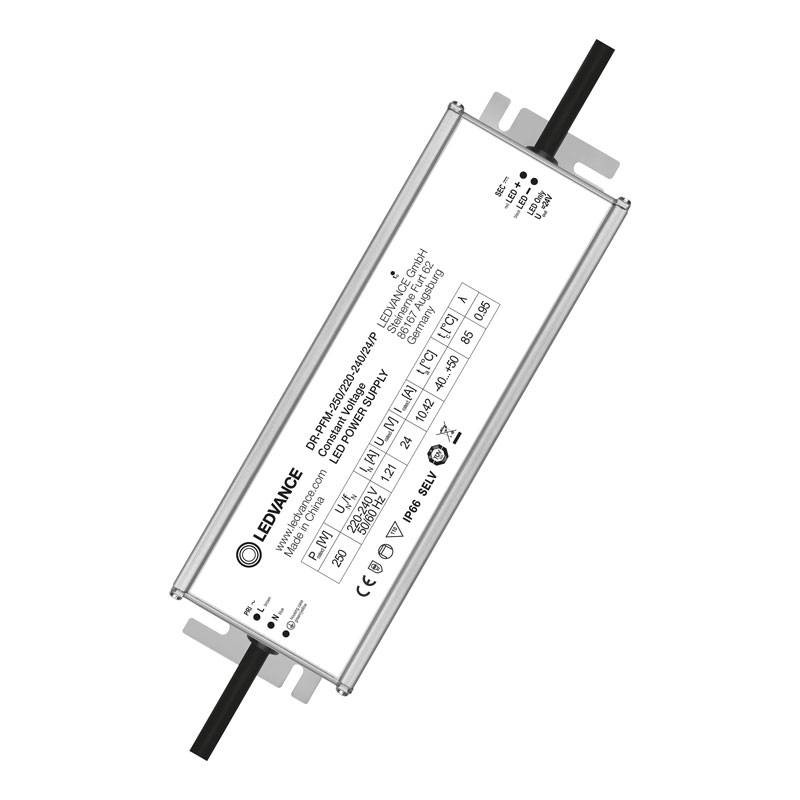

Osram Ledvance Led Strips Power Supply 250W 24V IP66 DRPFM25024P
LDV DRPFM25024P
4058075240032
Osram Ledvance DR-PFM-250 power supply for Led strips with the following characteristics:
- Power: 250 Watts
- Voltage: 220/240 V
- Output voltage: 24 V
- Current type: DC
- Degree of protection: IP66
- Non-dimmable
€104.55
Items Available: 49
: 40
Characteristics:
- Rated current: 1239 mA
- Rated output current: 10420 mA
- Inrush current: 60 A
- Output ripple current (100 Hz): 3.33%
- Mains frequency: 50/60 Hz
- Overvoltage capability (L/N-ground): 6kV
- Peak capacity (LN): 6kV
- Length: 233mm
- Distance between mounting holes, length: 215mm
- Width: 74 mm
- Height: 42 mm
- Input/output side cable cross-section: 1mm² - 2.5mm²
- Pre-wired
- Ambient temperature range: -40/+50 degrees
- Maximum temperature at test point tc: 85 °C
- Temperature range during operation: -40/+50 degrees
- Service life: up to 50,000 h (at maximum temperature tc)
Product advantages:
- Perfectly matched to flexible 24 V LED strips
- Very stable power output
- Quick and easy installation due to pre-wiring
- High efficiency and reliability
- Installation in very cold and hot environments
Areas of application:
- Suitable for indoor and outdoor installations
- Lighting of facades and buildings
- Ideal for lighting public spaces
- Bathrooms, kitchens and outdoor areas
- Offices, shopping malls, hospitals, restaurants, hotels
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP66
- Watts: 201 to 500W
- Output voltage: 24 Vdc
- Input voltage: 220/240V
