Osram Ledvance Led Strips Power Supply 100W 24V IP66 DRPFM10024P
LDV DRPFM10024P
4058075239937

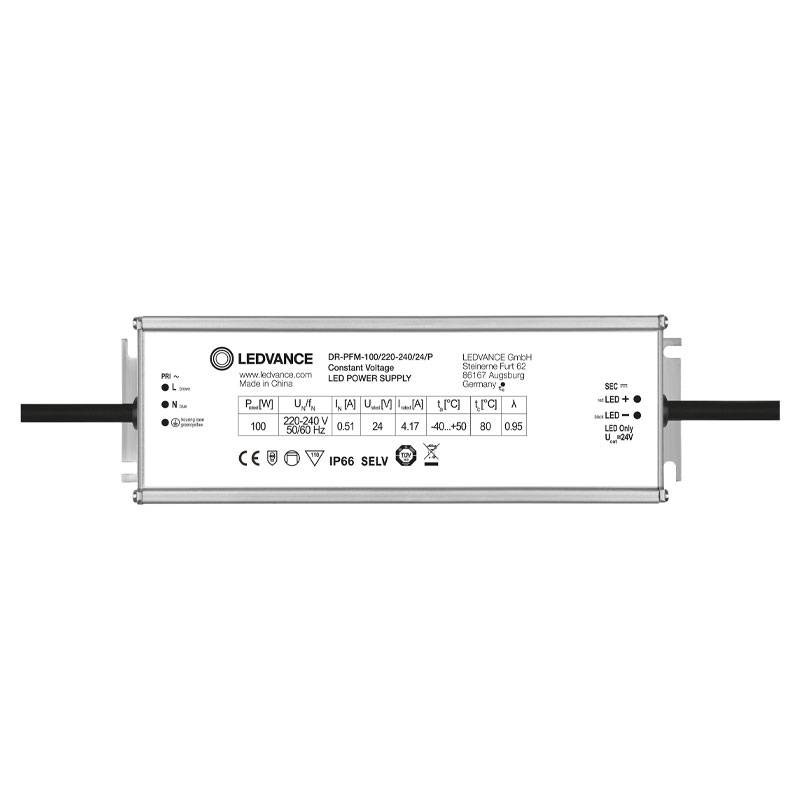

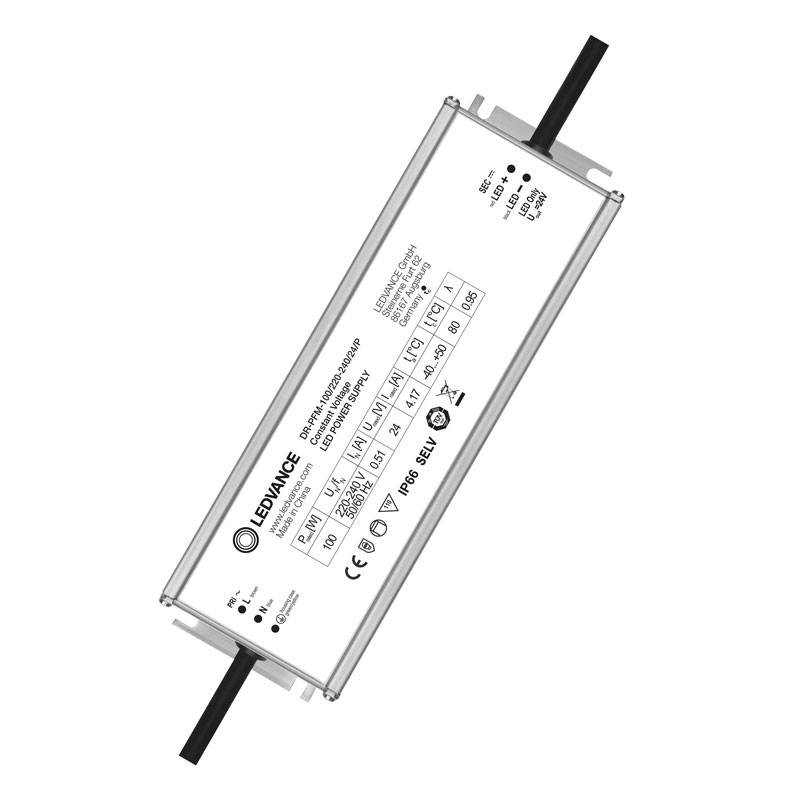

Osram Ledvance DR-PFM-100 power supply for Led strips with the following characteristics:
- Power: 100 Watts
- Voltage: 220/240 V
- Output voltage: 24 V
- Current type: DC
- Degree of protection: IP66
- Non-dimmable
![non dimmable](https://www.elettronew.com/img/tag-img/Non_Dimmable.png)
![](https://www.elettronew.com/72233-large_default/osram-ledvance-led-strips-power-supply-100w-24v-ip66-drpfm10024p.jpg)
Osram Ledvance Led Strips Power Supply 100W 24V IP66 DRPFM10024P
€55.91
€55.91
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 33
Features:
- Rated current: 525 mA
- Rated output current: 4170 mA
- Inrush current: 46 A
- Output ripple current (100 Hz): 5.21%
- Mains frequency: 50/60 Hz
- Overvoltage capability (L/N-ground): 6kV
- Peak capacity (LN): 6kV

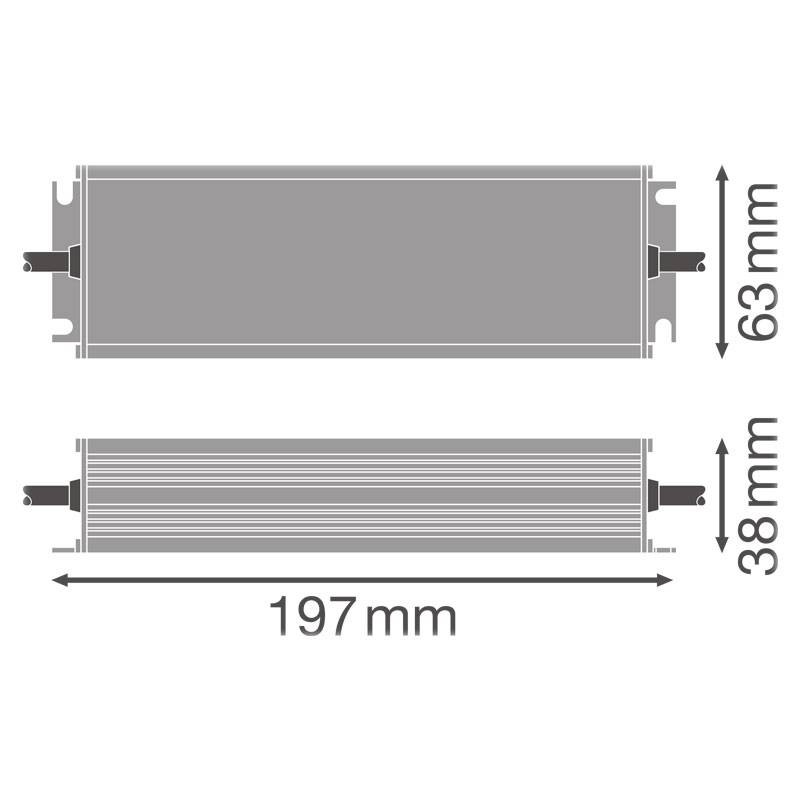

- Length: 197mm
- Distance between mounting holes, length: 188 mm
- Width: 63 mm
- Height: 38 mm
- Input/output side cable cross-section: 1mm²
- Pre-wired
- Ambient temperature range: -40/+50 degrees
- Maximum temperature at test point tc: 80 degrees C
- Temperature range during operation: -40/+50 degrees
- Service life: up to 50,000 h (at maximum temperature tc)
Product advantages:
- Perfectly matched to flexible 24 V LED strips
- Very stable power output
- Quick and easy installation due to pre-wiring
- High efficiency and reliability
- Installation in very cold and hot environments
Areas of application:
- Suitable for indoor and outdoor installations
- Lighting of facades and buildings
- Ideal for lighting public spaces
- Bathrooms, kitchens and outdoor areas
- Offices, shopping malls, hospitals, restaurants, hotels
Data sheet
- Type:
- Power supplies
- Voltage:
- 24V
- Shape:
- Rectangular
- Degree of protection:
- IP66
- Watts:
- 51 to 100W
- Dimmable:
- No
