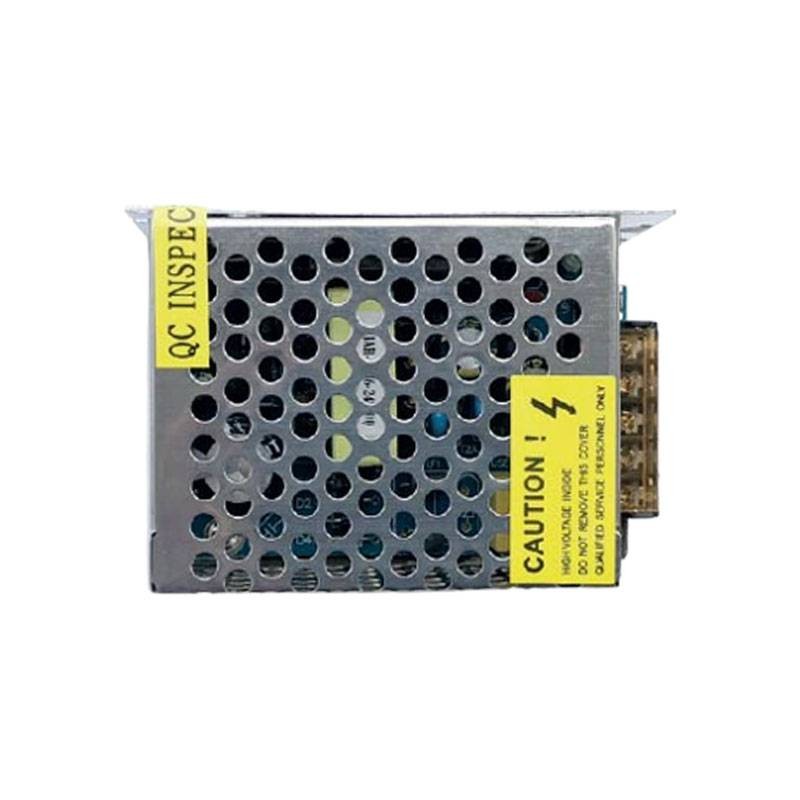

Ledco Transformer for LED Strips 25W 24Vdc IP20 TR2425
2AV TR2425
Ledco transformer for LED strips with the following features:
- Voltage: 110-240 Vac - 24Vdc
- DC input current 40A - 230V AC
- Frequency: 50/60 Hz
- Power output: 25W - 1.04A
- Power on time < 1S (input 230V, Io=100%)
- Overload/overpower protection: 105 - 150 %
- Degree of protection: IP20
- Insulation Class: Class 1
- Safety Standards: GB4943, UL60950-1,EN60950-1
€14.03
Items Available: 4
: 1
Features:
- Intended Use: Interior
- Installation: Wall Mounting - Ceiling Mounting
- Fixing: With screws not included
- Body - Structure: Metal
- Power supply: 110-240 Volt alternating current
- Working temperature: -20°/+60°C/ 20% ~ 90%RH (no frost)
- Storage temperature: -40°/+85°C/ 10% ~ 95%RH (no frost)
- Weight: 0.114 kg

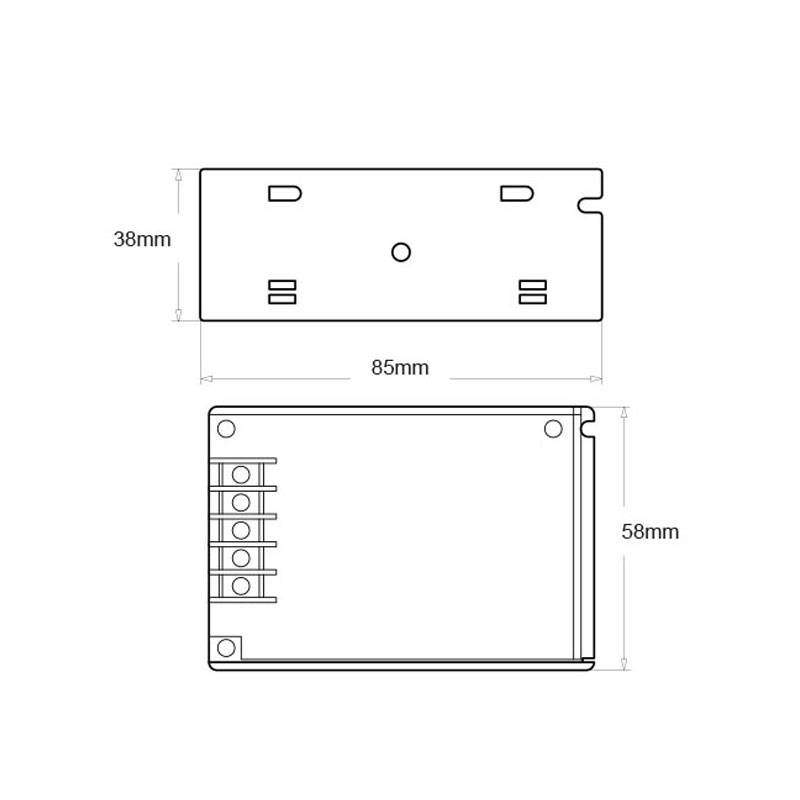

- Dimensions: 85 x 57 x 37 mm
- Cooling: forced ventilation
- Glow wire: 650 C°
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 21 to 30W
- Output voltage: 24 Vdc
- Input voltage: 110/240V
