Led Power Supply Pro Flat 30 Dip Switch 350-700 mA IP20 127572
ILA 127572

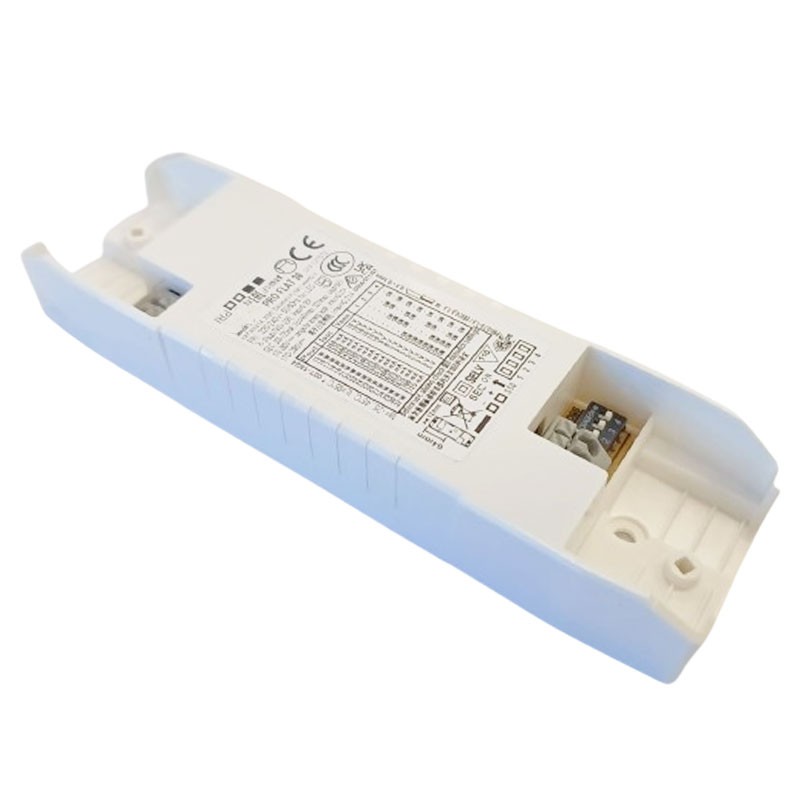

Power supply for Led Pro Flat 30 Dip Switch with the following features:
- Nominal Voltage: 220-240 V
- Output Voltage: 350-725 mA constant
- Output power: 32 watts
- Equipped with dip-switch for output current selection (3 ÷ 32 W)
- Can be used for luminaires in protection class I and II
- Degree of protection: IP20
- Non-dimmable

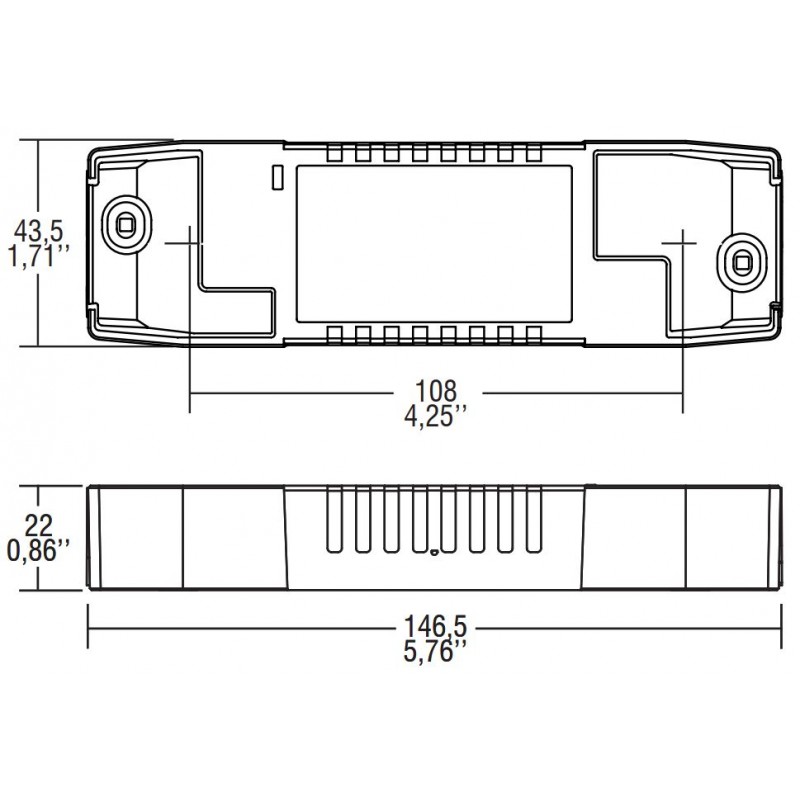

- Dimensions: 146x22x43 mm
€17.18
Items Available: 22
: 20
Features:
- Multi-power supply provided with dip-switch for output current selection
- Power supply to be incorporated
- Can be used for luminaires in protection class I and II
- PFC active
- Current regulated ±5 % including temperature variations
- Opposing input and output terminals (cable cross section up to 1.5 mm2/AWG15)
- Clamping on primary and secondary for cable diameters: min. 3 mm - max. 10 mm
- Fixing of power supply via screw slots
- Protections: thermal and short-circuit; against mains extra-voltages; against overloads
- Thermal protection = C.5.a
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: 31 to 40W
- Output voltage: 44 Vdc
- Input voltage: 220/240V
