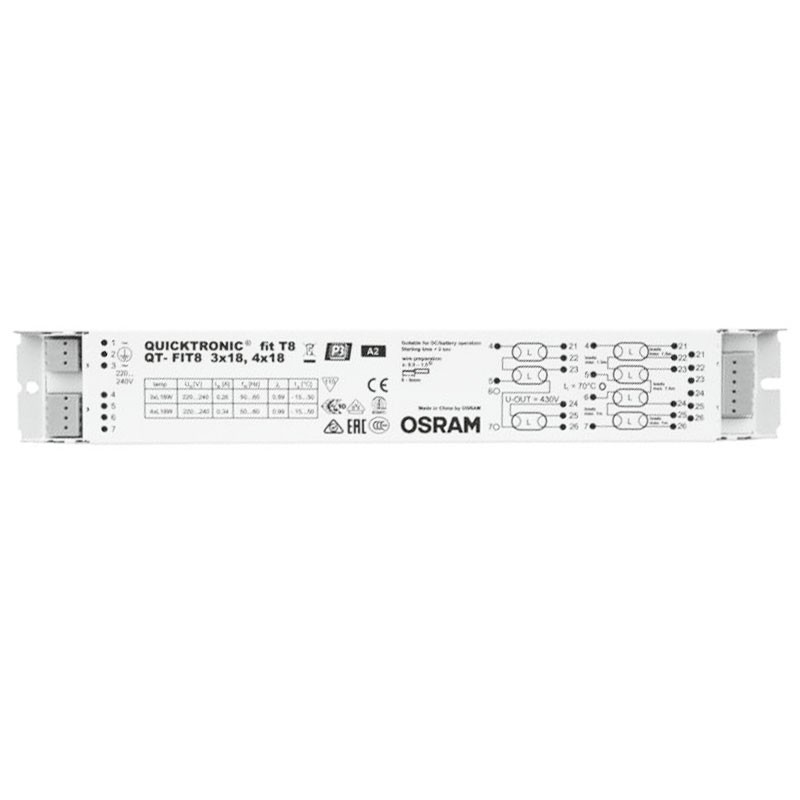

Electronic ballast for T5 fluorescent lamps Osram QT-FIT8 3X18,4X18 QTFIT834X18
LDV QTFIT834X18
4008321294302
Electronic ballast for Osram QT-FIT8 3X18,4X18 T5 fluorescent lamps:
- Supply voltage: 220/240 V
- Line voltage: 198/264 V
- Line frequency: 50/60 Hz
- Lamp ignition with optimal filament preheating
- Energy efficiency index EEI: A2
- Automatic shutdown of defective lamps at end of life (EoL T.2)
- Lamp operation: in accordance with EN 60929
- Safety: according to EN 61347-2-3
€32.29
Items Available: 7
: 1
Advantages:
- Long lamp life
- No negative impact for frequent on/off cycles
- Automatic restrike after lamp replacement
- Perfect lamp ignition for motion sensor applications
- VDE/VDE EMC certified system
- Very high energy efficiency thanks to cut-off technology
Features:
- Length 280.0 mm
- Width 40.0 mm
- Height 28.0 mm
- Distance between fixing holes-length 270.0 mm
- Product weight 219.00 g
- Cable cross section, output side 0.51.5 mm² 1
- Cable cross-section, input side 0.51.5 mm
- Ambient temperature -15+50 °C
- 585 % relative humidity
- Degree of protection IP20
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: 51 to 100W
- Input voltage: 220/240V
