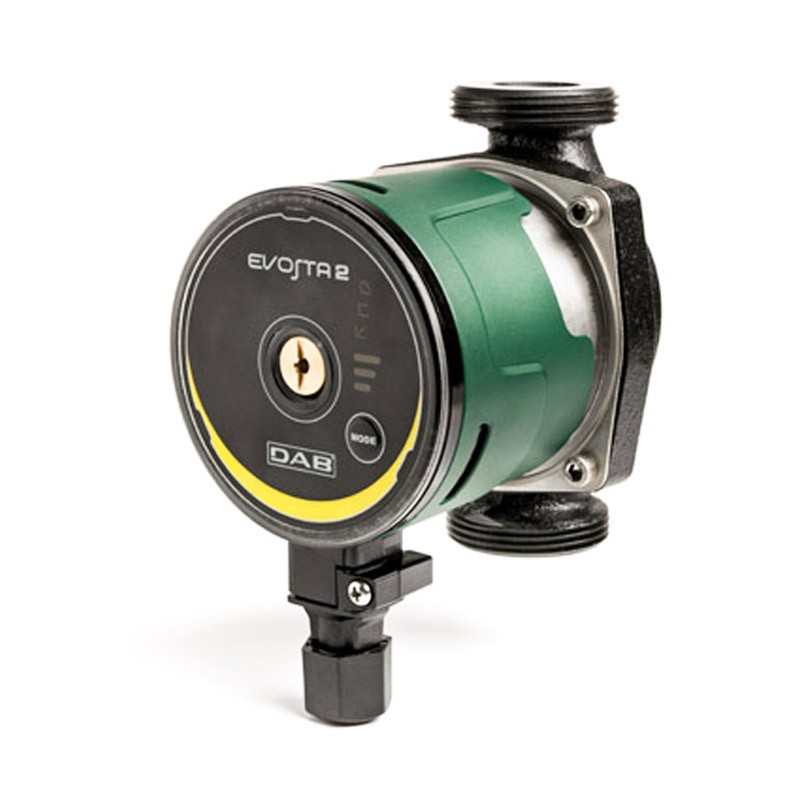

The electronic circulator DAB EVOSTA2 40-70/180X 1" 1/4 60186050

DAB EVOSTA2 40-70/180X 2" inch 180mm electronic circulator 60186050

Dab
Dab
DAB 60186050 8059893168184

DAB EVOSTA2 40-70/180X electronic circulator, energy-saving for water circulation in all types of domestic heating and air-conditioning systems:



  • Insulation class: F
  • Max. operating pressure (bar): 10
  • Center distance (mm): 180
  • Pump connections: DN32 threaded (G 2")
  • Maximum head (m): 6.9
  • Single-phase power supply
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
The electronic circulator DAB EVOSTA2 40-70/180X 1" 1/4 60186050
DAB EVOSTA2 40-70/180X 2" inch 180mm electronic circulator 60186050
€134.41
€130.38
€130.38

Lowest price in 30 days:
€134.41
Save 3%
€130.38
Tax included
Calculate shipping cost
Offer expires in
Items Available: 6
Further availability of the manufacturer
€130.38

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

EVOSTA 2 is the new range of DAB circulators capable of offering the robustness of the mechanical circulator combined with the advantages of the electronic one. The permanent magnet synchronous motor, frequency converter, efficiency index EEI ? 0.18 combined with the IPX5 protection rating and integrated breather cap make the EVOSTA 2 family one of the best-in-class products in terms of efficiency and reliability. The EVOSTA 2 range of circulators lends itself very well to the replacement of older three-speed circulators both because of its compact size and the completeness offered in terms of performance. It is also a product that can simplify the work of the installer, having a single sequential setting button, and direct access to the motor shaft for eventual unblocking.



CONSTRUCTION FEATURES



Cast iron pump body with cataphoresis treatment and wet rotor motor. Steel motor case, technopolymer impeller. Ceramic motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Stainless steel rotor sleeve, stator sleeve and end flange. Graphite thrust ring. EPDM seal rings and brass air vent plug. Due to the internal motor protection, the pump requires no overload protection.



Features:

  • Power supply 50Hz 1x230 V ~
  • Max power 35W
  • In 0.043 to 0.32A
  • Liquid temperature: 2° C to +95° C
  • Degree of protection: IPX5
  • Insulation class: F
  • Installation: with the axis of the motor horizontal
  • Power consumption: 35 W
  • Power supply: single phase 230v
  • Body material: cast iron
  • Liquid: Clean with the characteristics of water
  • Dimensions: 180x134.6x91mm
  • Nozzle type: DN32 G2"

1 acquisto .molto soddisfatto tutto ok arrivato nei tempi stabiliti.grazie

Perfetto funziona benissimo malgrado le sue dimensioni

Read all reviews

Data sheet

Type:
Circulating pumps
Version:
Single
Connections:
2 inches
Axle base:
180mm
Consulta scheda EPREL info_outline
