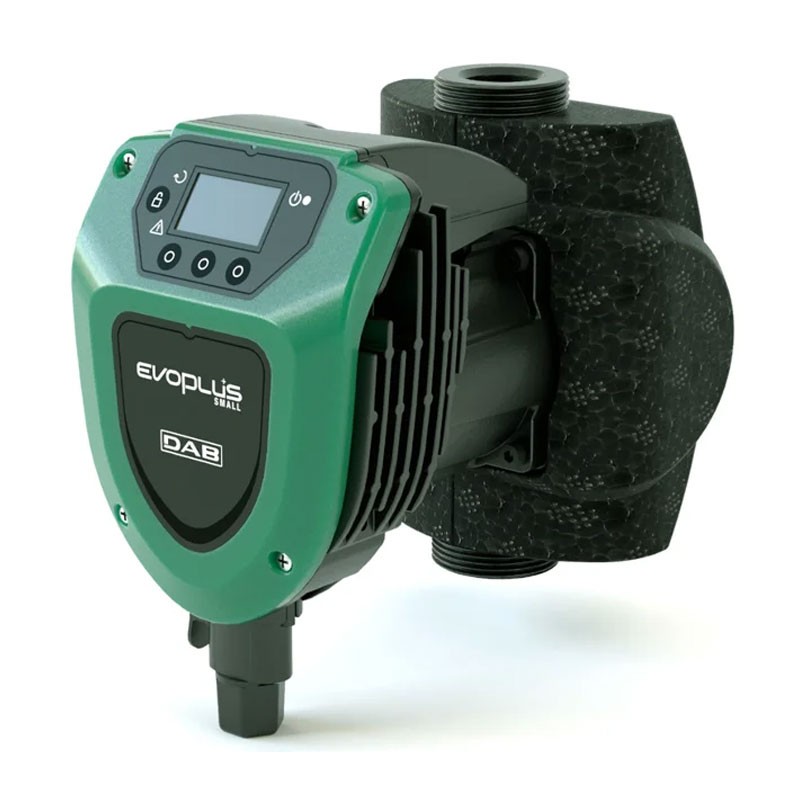

DAB Evoplus 80/180M SMALL: Efficiency and versatility for every system
The DAB Evoplus 80/180M SMALL is designed to ensure high performance and low energy consumption, automatically adapting to the different flow and pressure requirements of the system. Thanks to the electronically controlled wet rotor motor, it ensures quiet operation, greater comfort, and significant savings on operating costs. It is the ideal solution for heating, ventilation, and air conditioning systems in:
- residential buildings or condominiums,
- clinics, schools, and public facilities,
- offices and small commercial activities.
Applications in heating
The Evoplus Small pump automatically adjusts the flow based on the actual needs of the system, always maintaining a constant and optimal flow.
This ensures:
- greater thermal efficiency,
- reduction in electrical consumption,
- quieter operation.
Thanks to electronic regulation, it adapts to temperature variations or the closure of circuits in more complex systems, always maintaining the right pressure and flow.
Applications in air conditioning
Unlike conventional pumps, the DAB Evoplus 80/180M SMALL can also be used in cooling systems, where the fluid temperature is lower than the ambient temperature. Its structure is designed to resist condensation formation, ensuring optimal drainage and no risk of damage to electronic or mechanical components.
Robust construction and quality materials
The circulator is a monoblock with a high-efficiency cast iron hydraulic part and a synchronous motor with permanent magnets. The smooth internal surfaces and spiral geometry of the pump body optimize hydraulic efficiency.
- Impeller: made of high-strength technopolymer
- Motor shaft: made of alumina on self-lubricating graphite bearings
- Rotor sleeve: made of stainless steel with ceramic thrust ring
- Seals: made of ethylene propylene
- Stator sleeve: carbon fiber reinforced composite
- Motor body: made of die-cast aluminum
Easy installation and reduced maintenance
The Evoplus 80/180M SMALL circulator is supplied with a standard connector and plug, simplifying electrical connection without the need for complex wiring. It also includes insulation shells to reduce thermal losses in heating or condensation formation in cooling.
Thanks to its compact structure (only 22.4 cm deep) and light weight, it is ideal for installations even in confined spaces or boiler rooms with limited space.
Technical characteristics
| HYDRAULIC DATA |
| Operating range |
Up to 7.2 m³/h with head up to 8.2 m |
| Pumped liquid |
Clean, free of solid substances and mineral oils, non-viscous, chemically neutral, similar to water (glycol max. 30%) |
| Liquid temperature range |
From -10 °C to +110 °C |
| Maximum operating pressure |
16 bar (1600 kPa) |
| Maximum ambient temperature |
+40 °C |
| Centre distance |
180 mm |
| Pump connections |
1” 1/2 |
| Installation |
With horizontal motor shaft |
| ELECTRICAL CHARACTERISTICS |
| Power supply voltage |
Single-phase 220 ÷ 240 V – 50/60 Hz |
| Maximum power |
130 W |
| Insulation class |
F |
| Protection degree |
IP44 |
| CONSTRUCTION CHARACTERISTICS |
| Unions on request |
Standard: 1” F
Special: 3/4” F – 1” 1/4 M |
| Version |
Single with 1” 1/2 threaded connections |
| PERFORMANCE AND FUNCTIONALITY |
| Quietness |
Sound pressure ≤ 33 dB(A) |
| Operating costs |
Reduced |
| Remote control |
Possible via D.Connect service (D.Connect Box required, not included) |
| COMPATIBILITY AND STANDARDS |
| Electromagnetic compatibility |
EN 61800-3, category C2 |
| Emissioni elettromagnetiche |
Suitable for residential environment |
| Conducted emissions |
Residential environment |
| Reference standards |
EN 61800-3, EN 60335-1, EN 60335-2-51 |
