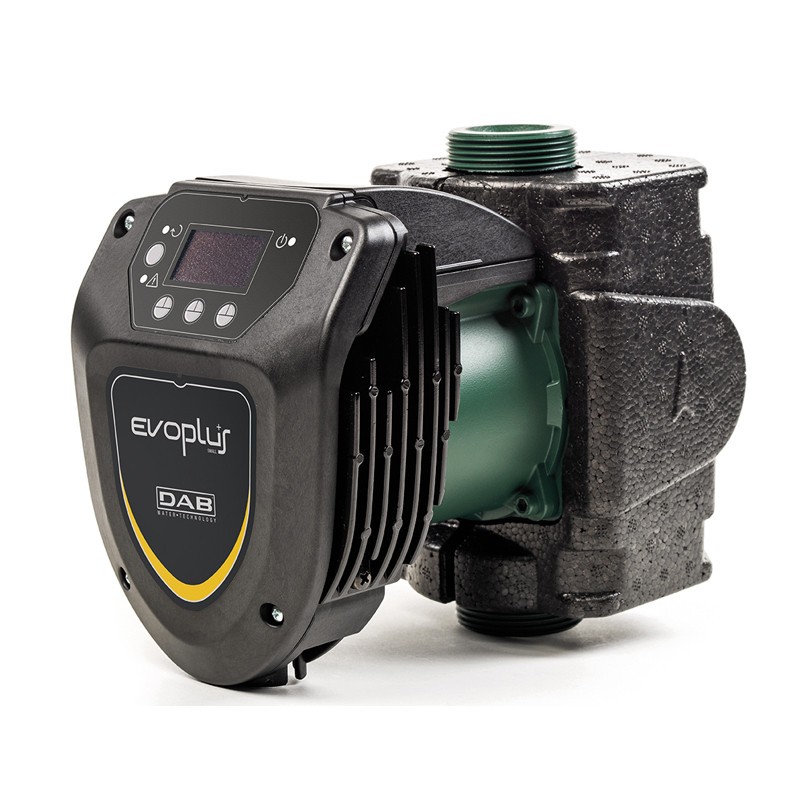

DAB EVOPLUS Small 80/180 XM 2" 180mm electronic circulator 60150944
DAB 60150944
8059893013736
Electronic circulator DAB EVOPLUS Small 80/180 XM SMALL single spout can be used in heating, ventilation and air conditioning systems for residential and commercial buildings:
- Center distance (mm): 180
- Pump connections: 2"
- Maximum flow rate (m³/h): 7.2
- Maximum head (m): 8.1
- Single-phase power supply
€530.31
Items Available: 4
he EVOPLUS SMALL electronic circulator ensures sufficient energy, quieter/comfortable operation and a significant reduction in operating costs at all times.
EVOPLUS SMALL can be used in heating, ventilation and air conditioning systems for residential and commercial buildings such as:
- Large residential buildings
- Condominiums and apartment buildings
- Dwellings
- Real estate
- Clinics and hospitals
- Schools
- Office buildings
Construction characteristics.
One-piece circulation pump formed by cast iron hydraulic part and wet rotor synchronous electric motor. Aluminum motor case. Spiral pump body with high hydraulic efficiency due to particularly accurate design and polished internal surfaces. In-line suction and discharge ports. Equipped as standard with insulation shells to prevent heat loss and/or condensation on the pump body. The circulator connects to the power supply line by means of a handy connector with its plug supplied as standard, making operation quick and easy. Technopolymer impeller, alumina motor shaft mounted on graphite bushings lubricated by the pumped liquid itself. Stainless steel rotor shroud. Ceramic thrust ring, ethylene propylene seal rings, and composite stator sleeve with carbon fiber. Synchronous type motor with permanent magnet rotor.
APPLICATIONS IN HEATING
The heating required in different applications varies greatly during the day/night due to the outdoor temperature and the more or less constant presence of people inside the premises. To the above must be added the different needs of various rooms and the possible opening or closing of various branches in complex systems. Electronically regulated wet rotor pumps ensure at all times, almost in all correctly sized systems, a sufficient amount of energy and at the same time greater quietness/comfort and a significant reduction in operating costs.
APPLICATIONS IN AIR CONDITIONING
Unlike conventional electronic pumps, EVOPLUS electronic circulation pumps can also be used in air conditioning systems where the temperature of the pumped liquid is lower than the ambient temperature. Under these conditions on the outer surface of the circulator condensation occurs, which does not affect the proper functioning of both the electronic and mechanical parts. In fact, the particular construction is designed and sized to allow condensate drainage without damage to the construction components.
Features:
- Operating range: up to 7.2 m³/h with head up to 8.1 meters
- Voltage: single-phase 220/240 V - 50/60 Hz
- Maximum power: 130 W
- Pumped liquid: clean, free of solids and mineral oils, non-viscous, chemically neutral, close to the characteristics of water (glycol max. 30%)
- Liquid temperature range: -10°C to +110° C
- Maximum operating pressure: 16 bar (1600 kPa)
- Maximum ambient temperature: +40°C
- Wheelbase: 180 mm
- Degree of protection: IP44
- Insulation class: F
- Pump connections: 2"
- Installation with horizontal motor axis
- Electromagnetic compatibility: complies with EN 61800-3, category C2
- Electromagnetic emissions: residential environment
- Conducted emissions: residential environment
- Nozzles on request:
- Standard: 1" 1/4 F
Possibility of remote control thanks to D.Connect service (D.Connect Box required, not included) - Low noise: sound pressure ≤ 33 dB(A)
- Low operating costs
- Complies with European standard EN 61800-3 - EN 60335-1 - EN 60335-2-51
- Single version with 2" threaded ports
- Dimensions length, 12.4 cm width, 20.4 cm height
- Weight kg 4.7
qualité DAB, article identique à l'original 9 ans après.
Notice d’installation et d’emploi à améliorer
Data sheet
- Type: Circulating pumps
- Version: Single
- Model: Electronic
- Connections: 2 inches
- Axle base: 180mm
