High-efficiency DAB Evoplus Small circulating pump for civil and commercial systems

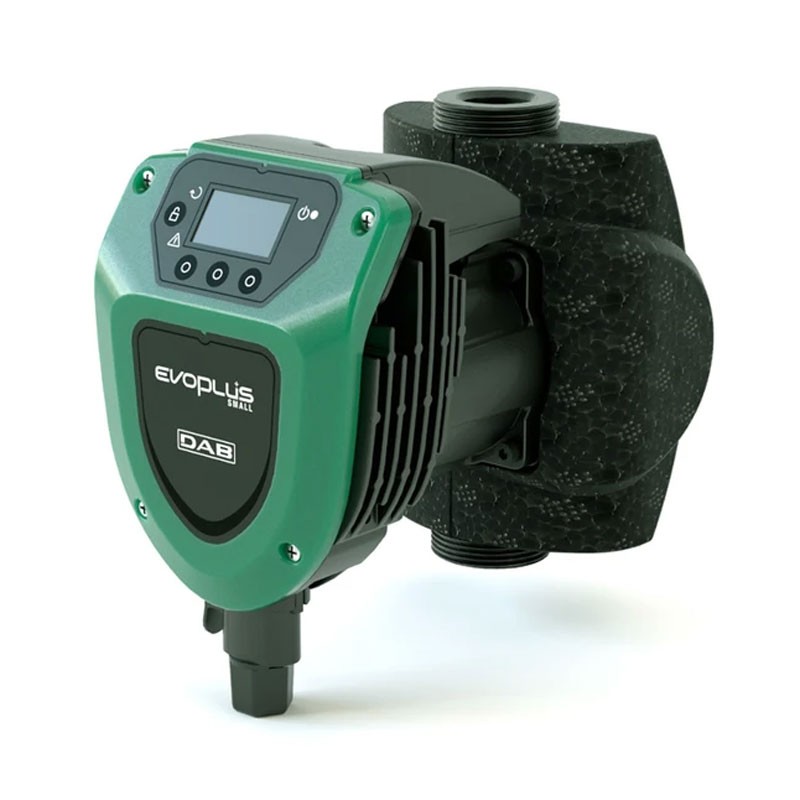

The DAB Evoplus Small 110/180M is a single-block electronic circulator with a wet rotor designed to ensure maximum energy efficiency, quietness, and reliability in heating, ventilation, and air conditioning systems. Designed for small and medium residential and commercial systems, it ensures a flow rate of up to 7.2 m³/h and a maximum head of 11.1 meters, offering high performance in a compact and robust structure.
The electronic regulation ensures the correct amount of energy based on the actual needs of the system, reducing waste and operational costs and improving acoustic comfort.
Applications in heating and air conditioning
The circulator is ideal for:
- large residential buildings and condominiums
- domestic systems
- clinics, schools, and offices
- centralized systems and complexes with variable branches
In heating, the energy requirement can change rapidly based on the external temperature, the number of active rooms, and usage times. Evoplus Small automatically adjusts the speed, always ensuring the correct heat supply and reducing consumption and noise emissions.
Unlike traditional electronic pumps, Evoplus Small works perfectly even in air conditioning systems where the pumped liquid can have a temperature lower than the surrounding air. Its structure is designed to handle condensation formation without compromising electronics and mechanical components.
High-quality construction structure
The circulating pump is made with:
- high-efficiency hydraulic cast iron pump body, with smooth internal surfaces
- impeller in technopolymer
- motor shaft in alumina
- graphite bushings lubricated by the pumped liquid
- stainless steel rotor protection sleeve
- ceramic thrust ring
- stator sleeve in composite material with carbon fibre
- permanent magnet synchronous motor
The pump is supplied with insulation shells, useful for reducing thermal dispersion and condensation.
| MAIN FEATURES |
| Model |
Evoplus Small 110/180M |
| Centre distance |
180 mm |
| Connections |
1”1/2 |
| Power |
170 W |
| Power supply |
Single-phase 220–240 V, 50/60 Hz |
| Protection degree |
IP44 |
| Insulation class |
F |
| Quietness |
≤ 33 dB(A) |
| Remote control |
Prepared for D.Connect (accessory not included) |
| DIMENSIONS |
| Length |
22.4 cm |
| Width |
12.4 cm |
| Height |
20.4 cm |
| Weight |
4.5 kg |
| PERFORMANCE |
| Operating range |
Up to 7.2 m³/h with max head 11.1 m |
| Pumped liquid |
Clean water or with glycol (max 30%) |
| Liquid temperature |
From -10°C to +110°C |
| Max ambient temperature |
+40°C |
| Max operating pressure |
16 bar |
| Installation |
With horizontal motor axis |
| ELECTROMAGNETIC COMPATIBILITY |
| EMC standard |
EN 61800-3 category C2 |
| Emissions |
Conducted and radiated suitable for residential environments |
