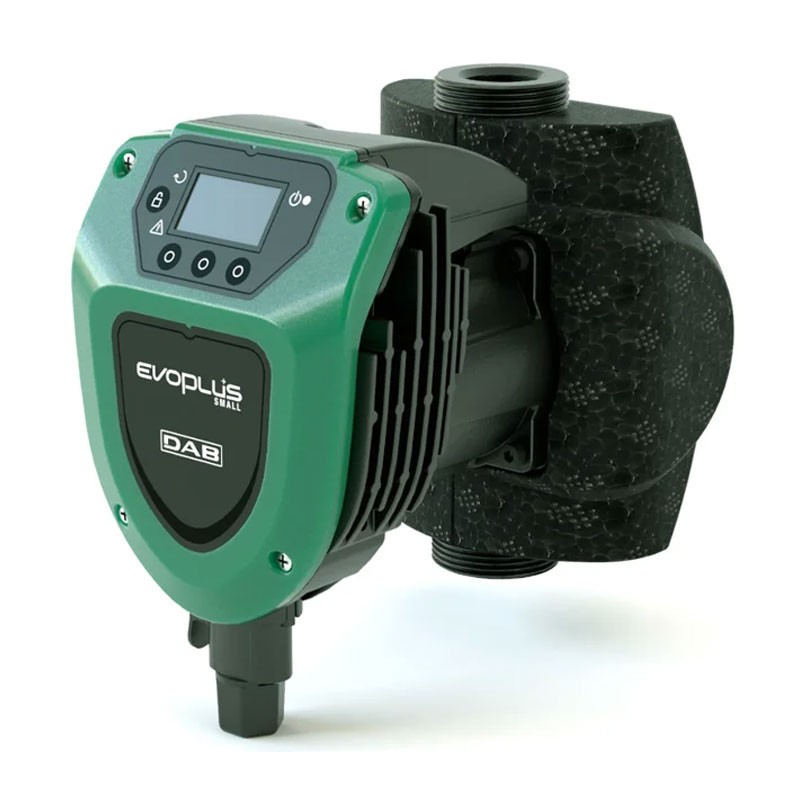

DAB EVOPLUS Small Electronic circulator 110/180 XM 2" 180mm
DAB 60231358
8059893358882
The DAB Evoplus Small 110/180 XM 2” electronic circulator is the ideal choice for small to medium-sized heating and air conditioning systems. Quiet, efficient, and reliable, it ensures high performance and energy savings.
-
Threaded connections: 2”
-
Maximum flow rate: 9.6 m³/h
-
Maximum head: 11.3 m
-
Centre distance: 180 mm
-
Power supply: single-phase
-
Protection rating: IP44
-
Insulation class: F
-
Maximum operating pressure: 16 bar
-
Dimensions (LxWxH): 12.4 × 22.4 × 20.4 cm
-
Pump body: high-efficiency hydraulic cast iron
-
Motor: synchronous with permanent magnets, wet rotor
-
Insulation: standard insulating shells
€584.21
Items Available: 4
: 1
Evoplus Small 110/180 XM: performance and reliability for every system
The DAB Evoplus Small 110/180 XM is a high-efficiency electronic circulator designed for heating, air conditioning, and ventilation systems in residential or commercial buildings. Thanks to the electronically controlled synchronous motor with a wet rotor, it ensures quiet operation, precise flow control, and significant energy savings.
It is ideal for applications in:
- large residential buildings and condominiums,
- offices and commercial complexes,
- schools, hospitals, and clinics,
- single or multi-family homes.
Efficiency in heating and air conditioning
The DAB Evoplus circulator automatically adjusts the flow rate according to thermal demand, maintaining constant pressure and optimizing consumption. In heating, it ensures uniform thermal comfort and noise reduction even during load or temperature variations.
Unlike traditional electronic pumps, the Evoplus Small can also be used in air conditioning systems, where the pumped liquid is colder than the surrounding environment. The internal structure is designed to drain condensation and protect electronic and mechanical components, ensuring maximum reliability over time.
Quality structure and materials
The DAB Evoplus 110/180 XM is a compact monoblock that combines robustness, efficiency, and ease of use:
- Cast iron pump body, with spiral profile for high hydraulic efficiency;
- Synchronous motor with permanent magnet rotor for greater efficiency;
- Aluminium motor casing for better heat dissipation;
- Corrosion-resistant technopolymer impeller;
- Alumina motor shaft mounted on self-lubricating graphite bearings;
- Stainless steel protective sleeve and ceramic thrust ring;
- Seals in ethylene propylene (EPDM) and stator sleeve in carbon fibre reinforced composite.
The circulator is supplied complete with insulation shells to prevent thermal dispersion in heating or condensation formation in air conditioning.
Easy installation and reduced maintenance
Thanks to the electrical connector with standard plug, connection is quick and safe. The inline suction and delivery ports facilitate installation even in confined spaces, while the compact design (22.4 cm depth) allows integration into boiler rooms or technical compartments with minimal space. Maintenance is minimal, as the wet rotor is lubricated by the same circulating liquid, reducing wear and operating costs.
Comfort, savings, and quietness
The electronically controlled motor automatically modulates the rotation speed, ensuring optimal flow and reduced consumption. The result is a more efficient, quieter system with greater longevity. This technology allows for a reduction in operating costs of up to 50% compared to traditional fixed-speed circulators.
Technical characteristics
| HYDRAULIC DATA | |
|---|---|
| Operating range | Up to 9.6 m³/h with head up to 11.3 m |
| Pumped liquid | Clean, free of solid substances and mineral oils, non-viscous, chemically neutral, similar to water (glycol max. 30%) |
| Liquid temperature range | From -10 °C to +110 °C |
| Maximum operating pressure | 16 bar (1600 kPa) |
| Maximum ambient temperature | +40 °C |
| Centre distance | 180 mm |
| Pump connections | 2” |
| Installation | With horizontal motor axis |
| ELECTRICAL CHARACTERISTICS | |
| Power supply voltage | Single-phase 220 ÷ 240 V – 50/60 Hz |
| Maximum power | 170 W |
| Insulation class | F |
| Protection degree | IP44 |
| CONSTRUCTIVE CHARACTERISTICS | |
| Unions on request | Standard: 1” 1/4 F |
| Version | Single with 2” threaded ports |
| Dimensions (L x D x H) | 22.4 x 12.4 x 20.4 cm |
| Weight | 4.7 kg |
| PRESTAZIONI E FUNZIONALITÀ | |
| Quietness | Sound pressure ≤ 33 dB(A) |
| Operating costs | Reduced |
| Remote control | Possible via D.Connect service (D.Connect Box required, not included) |
| COMPATIBILITY AND STANDARDS | |
| Electromagnetic compatibility | EN 61800-3, category C2 |
| Electromagnetic emissions | Suitable for residential environment |
| Conducted emissions | Residential environment |
| Reference standards | EN 61800-3, EN 60335-1, EN 60335-2-51 |
same as description, excellent product , easy to connect, seems to have good performance if the indications of display are correct. Good description on the site, this is the second I order, the first one is installed. Each time, only one piece in stock.
Data sheet
- Type: Circulating pumps
- Version: Single
- Model: Electronic
- Connections: 2 inches
- Axle base: 180mm
