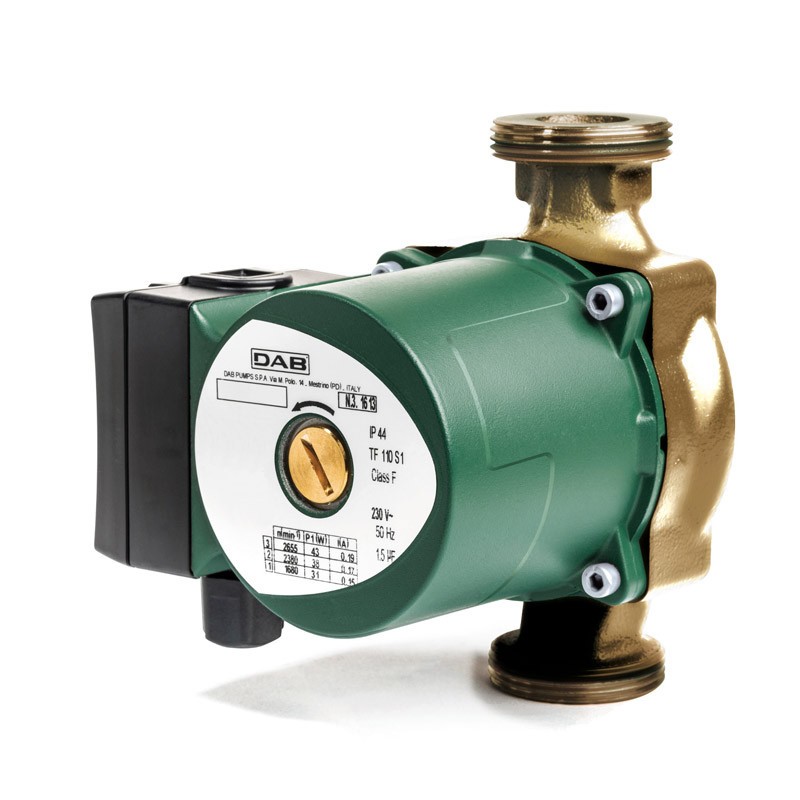

Circulator DAB VS 8/150M, wet rotor 60182217H

DAB VS 8/150M wet rotor circulator 1 1/2 inches 150mm 60182217H

Dab
Dab
DAB 60182217H 8059893159090

DAB VS 8/150M wet rotor circulator for circulating hot water in closed and pressurized or open vessel type domestic central heating and air conditioning systems.



  • Axle 150mm
  • Pump connections 1 1/2 inches



Download data sheet

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Circulator DAB VS 8/150M, wet rotor 60182217H
DAB VS 8/150M wet rotor circulator 1 1/2 inches 150mm 60182217H
€181.65
€176.20
€176.20

Lowest price in 30 days:
€181.65
Save 3%
€176.20
Tax included
Calculate shipping cost
Offer expires in
Items Available: 1
Further availability of the manufacturer
€176.20

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Power supply 50Hz 1x230 V ~
  • Axle 150mm
  • Pump connections 1 ½
  • Unions on request Brass, 1/2 F - 3/4 F - 1 F COPPER d22 e d28
  • Max power 22W
  • In The 0.14 To
  • Operating range: from 0.6 to 3.7 m3/h with head up to 6 metres
  • Temperature range of the liquid: from -10°C to +85°C for use health and +110°C for other uses
  • To avoid the phenomenon of limestone should not exceed 65°C and provide an anti-scale system when the degree of hardness of the water exceeds 15 French degrees
  • Pumped liquid: clean, free from solid substances and mineral oils, not viscous, chemically neutral, close to characteristics of water (glycol max 30%)
  • Maximum operating pressure: 10 bar (1000 kPa)
  • Installation: with lASSE HORIZONTAL MOTOR
  • Single body formed by the hydraulic part in the bronze and motor wet rotor
  • Motor casing in die-cast aluminium
  • Impeller in technopolymer
  • Motor shaft in stainless steel tempered and mounted on bronze bushings with graphite lubricated by the pumped liquid
  • Shirt of the rotor, jacket stator, and closing flange in stainless steel
  • Thrust ring ceramic
  • o-rings in silicone and the cap air vent brass
  • Motor two-pole asynchronous wet rotor is protected for resistance, and requires no overload protection
  • Operation three-speed
  • Degree of protection: IP 44
  • Insulation class: F
  • Cable gland: PG 11
  • Installation: with lasse horizontal motor.

Fournisseur efficace, livraison rapide, Je recommande

Read all reviews

Data sheet

Type:
Circulating pumps
Version:
Single
Model:
Wet rotor
Connections:
1-1/2 inches
Axle base:
150mm
