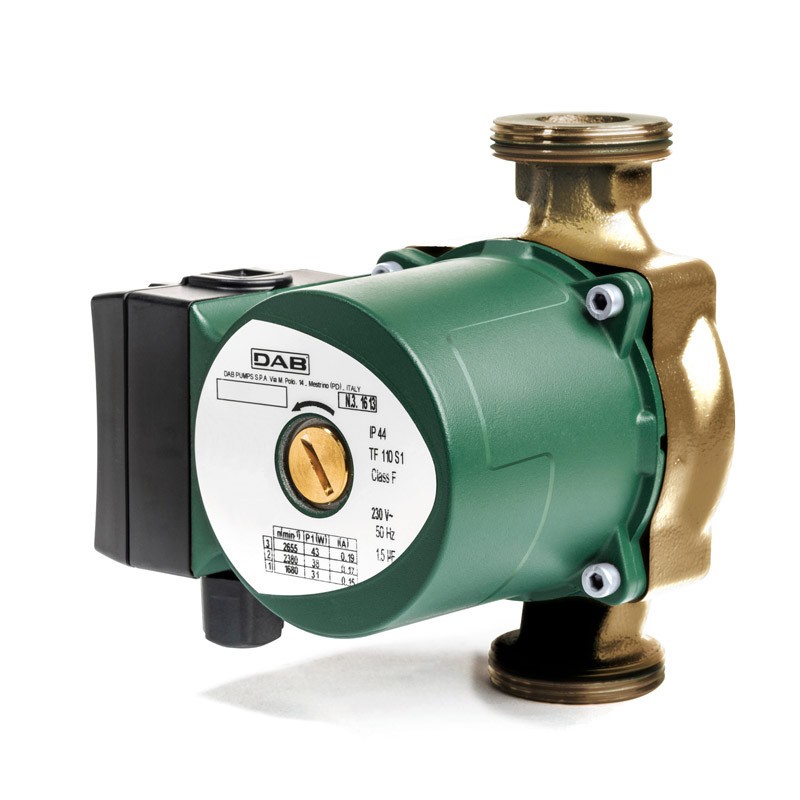

Circulator DAB VS 65/150M wet rotor 60182213H

DAB VS 65/150M wet rotor circulator 1 1/2 inches 150mm 60182213H

Dab
Dab
DAB 60182213H 8059893159069

DAB VS 65/150M wet rotor circulator for circulating hot water in closed and pressurized or open vessel type domestic central heating and air conditioning systems.

  • Center distance 150mm
  • Pump connections 1 1/2 inches
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Circulator DAB VS 65/150M wet rotor 60182213H
DAB VS 65/150M wet rotor circulator 1 1/2 inches 150mm 60182213H
€262.16
€254.30
€254.30

Lowest price in 30 days:
€262.16
Save 3%
€254.30
Tax included
Calculate shipping cost
Offer expires in
Items Available: 12
Further availability of the manufacturer
€254.30

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Pump for circulating hot water in domestic central heating and air conditioning systems of closed and pressurized or open vessel type.

Construction features

  • Single body formed by the hydraulic part made of bronze and wet rotor motor
  • Die-cast aluminum motor case
  • Technopolymer impeller
  • Hardened stainless steel motor shaft mounted on graphite bushings lubricated by the pumped liquid
  • Stainless steel rotor sleeve, stator sleeve and end flange
  • Ceramic thrust ring, silicone seal rings and brass air vent plug
  • Two-pole, asynchronous, wet-rotor motor is resistance protected and requires no overload protection
  • Three-speed operation
  • Degree of protection: IP 44
  • Insulation class: F
  • Cable entry: PG 11
  • Installation: with the motor axis horizontal
  • Series voltage: single-phase 230 V / 50 Hz

Features:

  • 50Hz power supply 1x230 V ~
  • Wheelbase 150mm
  • Pump connections 1 ½ inch
  • Outlets on request Brass 1/2 F - 3/4 F - 1 F Copper d22 and d28
  • Max power 41W
  • In 0.19A
  • Operating range: 0.6 to 3.7 m3/h with head up to 6 meters
  • Liquid temperature range: -10°C to +85°C for sanitary use and +110°C for other uses
  • To avoid the phenomenon of limescale, it is advisable not to exceed 65°C and to provide an anti-scale system when the water hardness level exceeds 15 degrees French
  • Pumped liquid: clean, free of solids and mineral oils, not viscous, chemically neutral, close to the characteristics of water (glycol max 30%)
  • Maximum operating pressure: 10 bar (1000 kPa)
  • Installation: with HORIZONTAL MOTOR HASE.
  • Single body formed by bronze hydraulic part and wet rotor motor
  • Die-cast aluminum motor case
  • Technopolymer impeller
  • Hardened stainless steel motor shaft mounted on graphite bushings lubricated by pumped liquid
  • Stainless steel rotor sleeve, stator sleeve and end flange
  • Ceramic thrust ring
  • Silicone seal rings and brass air vent plug
  • Two-pole asynchronous, wet rotor motor is resistance protected and requires no overload protection
  • Three-speed operation
  • Degree of protection: IP 44
  • Insulation class: F
  • Cable gland: PG 11
  • Installation: with horizontal motor lasse.

Broke down after 4 weeks in my heatsystem.

Lo compré para sustituir otro igual averiado por lo que la instalación del mismo no ha tenido ningún problema, todo ha funcionado como se espera.

Lo stesso prodotto di altri fornitori a metà prezzo

Read all reviews

Data sheet

Type:
Circulating pumps
Version:
Single
Model:
Wet rotor
Connections:
1-1/2 inches
Axle base:
150mm
