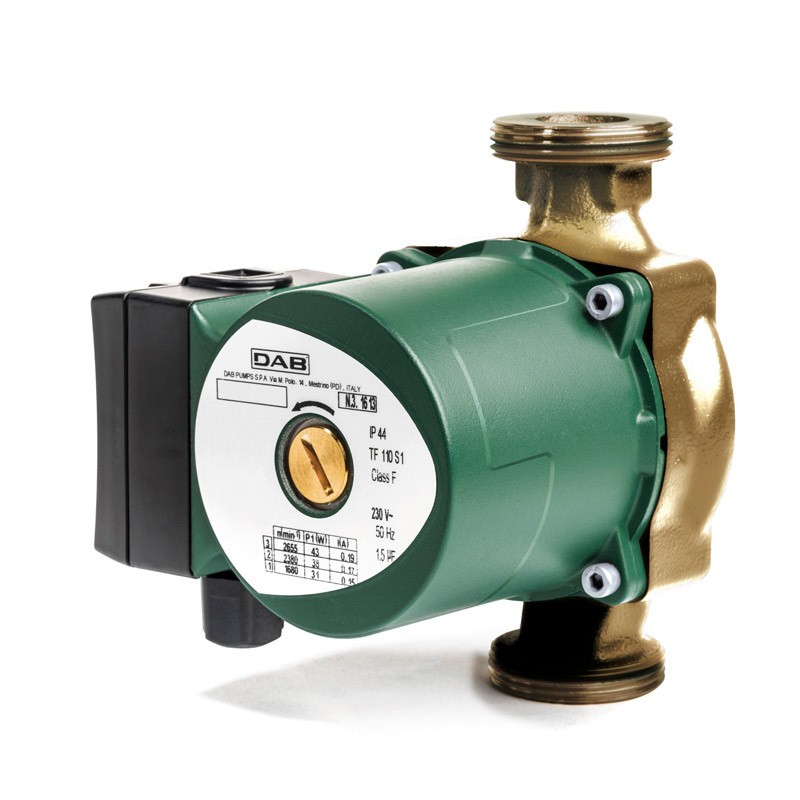

DAB VS 35/150M wet rotor 1"1/2 inch 150mm circulator 60182215H
DAB 60182215H
8059893159076
DAB VS 35/150M wet rotor circulator for circulating hot water in closed and pressurized or open vessel type domestic central heating and air conditioning systems.
- Center spacing 150 mm
- Pump connections 1"1/2 inch
€245.53
Items Available: 5
Pump for circulating hot water in domestic central heating and air conditioning systems of closed and pressurized or open vessel type.
Construction features
- Single body formed by the hydraulic part made of bronze and wet rotor motor
- Die-cast aluminum motor case
- Technopolymer impeller
- Hardened stainless steel motor shaft mounted on graphite bushings lubricated by the pumped liquid
- Stainless steel rotor sleeve, stator sleeve and end flange
- Ceramic thrust ring, silicone seal rings and brass air vent plug
- Two-pole, asynchronous, wet-rotor motor is resistance protected and requires no overload protection
- Three-speed operation
- Degree of protection: IP 44
- Insulation class: F
- Cable entry: PG 11
- Installation: with the motor axis horizontal
- Series voltage: single-phase 230 V / 50 Hz
Features:
- 50Hz power supply 1x230 V
- Center spacing 150 mm
- Pump connections 1"1/2
- Fittings on request Brass 1/2 F - 3/4 F - 1 F Copper d22 and d28
- Power max 55W
- In 0.24 Un
- Operating range: 0.6 to 3.7 m3/h with head up to 6 meters
- Liquid temperature range: -10°C to +85°C for sanitary use and +110°C for other uses
- To avoid the phenomenon of limescale, it is recommended not to exceed 65°C and to provide an anti-scale system when the water hardness degree exceeds 15 French degrees
- Pumped liquid: clean, free of solids and mineral oils, non-viscous, chemically neutral, close to the characteristics of water (glycol max 30%)
- Maximum operating pressure: 10 bar (1000 kPa)
- Installation: with horizontal motor axis
- Single body formed by bronze hydraulic part and wet rotor motor
- Motor housing made of die-cast aluminum
- Technopolymer impeller
- Hardened stainless steel motor mounted on bronze bushings with graphite lubricated by pumped liquid
- Stainless steel rotor mesh, stator shroud and flange closure
- Ceramic thrust ring
- Silicone O-ring and brass air outlet cover
- Resistance protected two-pole wet rotor asynchronous motor , no overload protection required
- Three-speed operation
- Degree of protection: IP44
- Insulation class: F
- Cable gland: PG 11
- Installation: with horizontal motor axis
Funciona muy bien la anterior ha durado 17 años
J ai remplacé la pompe défectueuse, super
Data sheet
- Type: Circulating pumps
- Version: Single
- Model: Wet rotor
- Connections: 1-1/2 inches
- Axle base: 150mm
