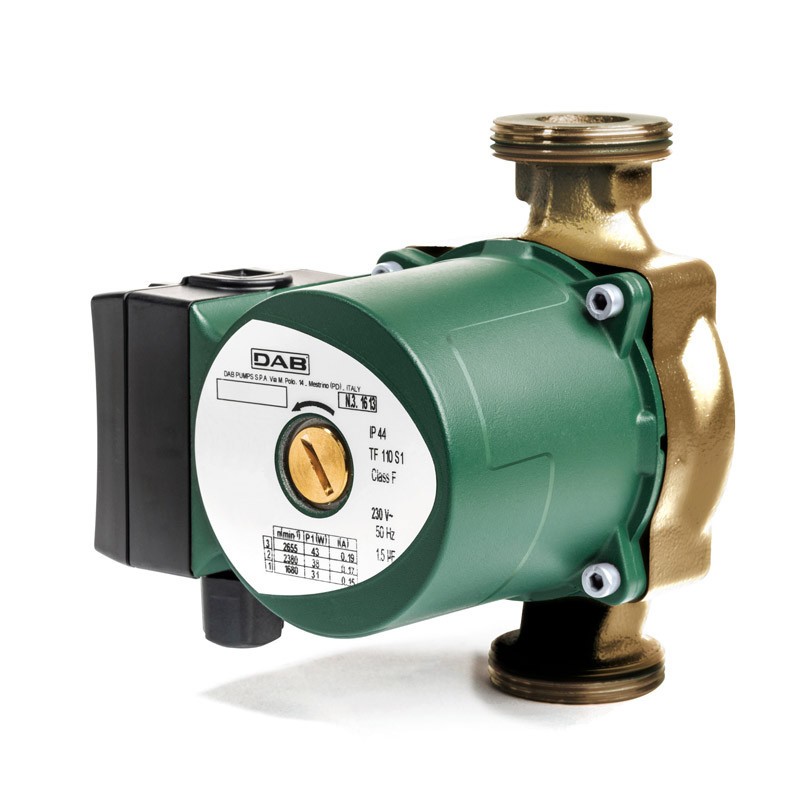

Circulator DAB VS 16/150M wet rotor 60182216H

DAB VS 16/150M wet rotor circulator 1 1/2 inches 150mm 60182216H

Dab
Dab
DAB 60182216H 8059893159083

DAB VS 16/150M wet rotor circulator for circulating hot water in closed and pressurized or open vessel type domestic central heating and air conditioning systems.

  • Center distance 150mm
  • Pump connections 1 1/2 inches
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Circulator DAB VS 16/150M wet rotor 60182216H
DAB VS 16/150M wet rotor circulator 1 1/2 inches 150mm 60182216H
€219.58
€212.99
€212.99

Lowest price in 30 days:
€219.58
Save 3%
€212.99
Tax included
Calculate shipping cost
Offer expires in
Items Available: 10
Further availability of the manufacturer
€212.99

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Pump for circulating hot water in domestic central heating and air conditioning systems of closed and pressurized or open vessel type.

Construction features

  • Single body formed by the hydraulic part made of bronze and wet rotor motor
  • Die-cast aluminum motor case
  • Technopolymer impeller
  • Hardened stainless steel motor shaft mounted on graphite bushings lubricated by the pumped liquid
  • Stainless steel rotor sleeve, stator sleeve and end flange
  • Ceramic thrust ring, silicone seal rings and brass air vent plug
  • Two-pole, asynchronous, wet-rotor motor is resistance protected and requires no overload protection
  • Three-speed operation
  • Degree of protection: IP 44
  • Insulation class: F
  • Cable entry: PG 11
  • Installation: with the motor axis horizontal
  • Series voltage: single-phase 230 V / 50 Hz

Features:

  • 50Hz power supply 1x230 V ~
  • Wheelbase 150mm
  • Pump connections 1 ½ inches
  • Outlets on request Brass 1/2 F - 3/4 F - 1 F Copper d22 and d28
  • Max. power 41W
  • In 0.19A
  • Operating range: 0.6 to 3.7 m3/h with head up to 6 meters
  • Liquid temperature range: -10°C to +85°C for sanitary use and +110°C for other uses
  • To avoid limescale phenomenon, it is advisable not to exceed 65°C and to provide an anti-scale system when the water hardness degree exceeds 15 degrees French
  • Pumped liquid: clean, free of solids and mineral oils, not viscous, chemically neutral, close to the characteristics of water (glycol max 30%)
  • Maximum operating pressure: 10 bar (1000 kPa)
  • Installation: with HORIZONTAL MOTOR AXIS
  • Single body formed by the bronze hydraulic part and wet rotor motor
  • Die-cast aluminum motor case
  • Technopolymer impeller
  • Hardened stainless steel motor shaft mounted on graphite bushings lubricated by pumped liquid
  • Stainless steel rotor sleeve, stator sleeve and end flange
  • Ceramic thrust ring
  • Silicone seal rings and brass air vent plug
  • Two-pole asynchronous, wet rotor motor is resistance protected and requires no overload protection
  • Three-speed operation
  • Degree of protection: IP 44
  • Insulation class: F
  • Cable gland: PG 11
  • Installation: with horizontal motor lasse.

Buen precio buen producto llego rapido. Bomba de termo antiguo y es exacta a la que tenia antes

Read all reviews

Data sheet

Type:
Circulating pumps
Version:
Single
Model:
Wet rotor
Connections:
1-1/2 inches
Axle base:
150mm
