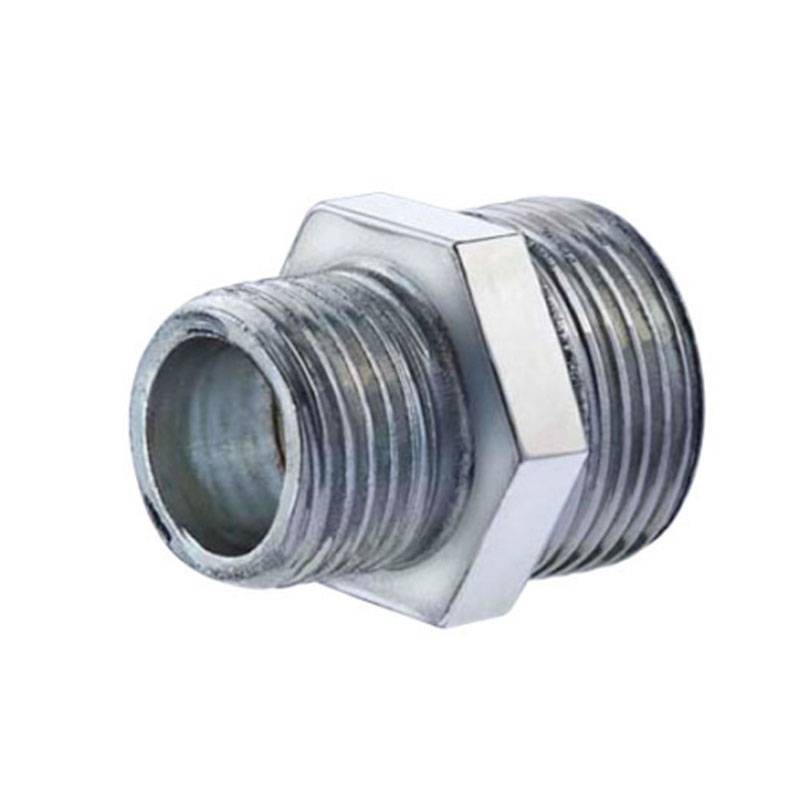

Threaded fitting for Oter galvanized steel pipes M/M 3/4 x 3/8 24509
OTR 24509
Threaded fitting for Oter pipe Reduction with screw with the following features:
- Connection: Male/Male
- Fittings: 3/4 x 3/8
- Material: Galvanized steel
- Inside diameter ØI: 19 mm
- Inner diameter Øi: 11 mm

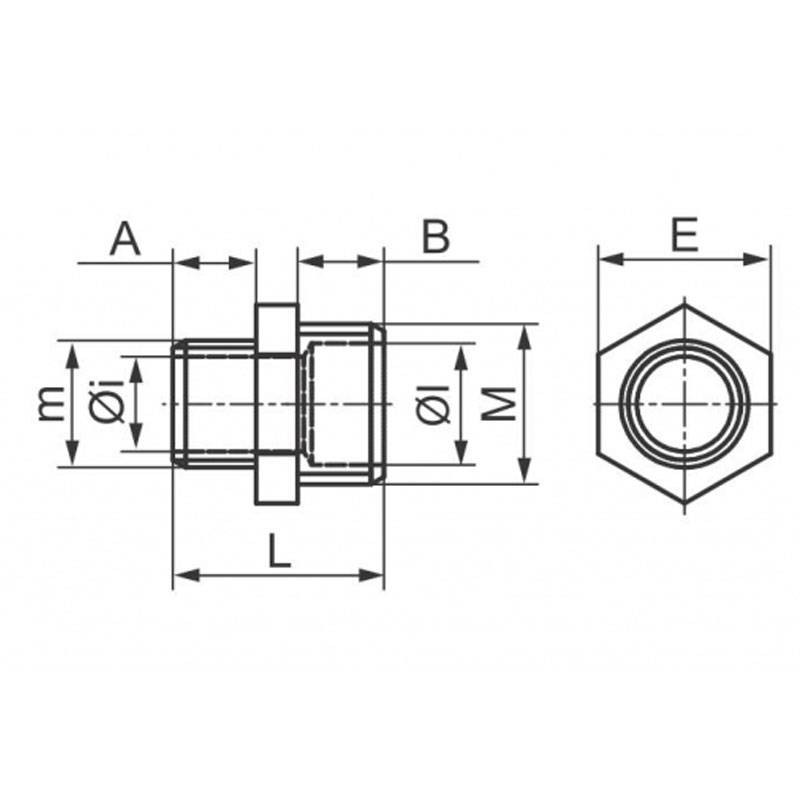

- Dimensions: 13.5x13.5x27x34 (A-B-E-L)
Steel threaded fitting suitable for joining two pipes.
€1.25
Items Available: 98
: 80
Features:
- Material: steel C4C EN 10263
- Thread UNI - ISO 228/1 CL.B
- Electrolytic galvanizing UNI ISO 2081:2018 sp. 6 ÷ 9 µm
- Complies with RoHS2 directive 2011/65/EU and the transport of drinking water according to DM 174 06-04-04
There are no reviews
Data sheet
- Type: Fittings
- Connection: M/M
- Model: Threaded
- Connections: 3/4 inches
- Material: Steel
3/8 inches
