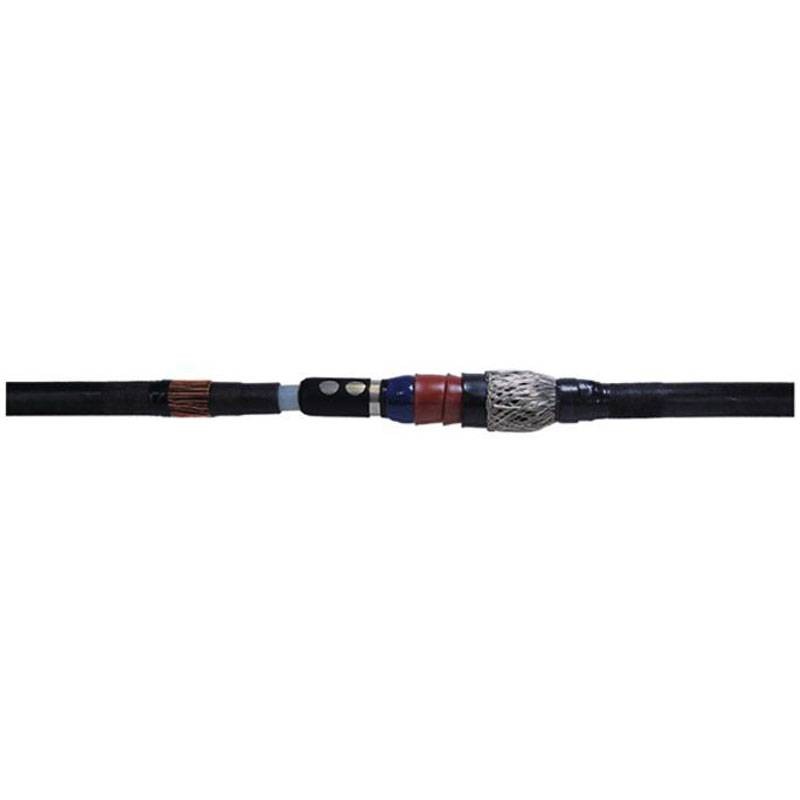

Straight single-pole hybrid joint CELLPACK screw connectors 1P 24KV 258142
CEL 258142
4010311139685
CELLPACK hybrid single-core straight joint complete with screw connectors for single-core shielded extruded-insulator cables up to 36 kV with the following characteristics:
- Voltage levels: U0/U (Um) 12/20 (24) kV - 12.7/22 (24) kV
- Length: 600 mm
- Diameter above core insulation after removal of outer conductive layer min: 19.9 mm
- Nominal 24 kV cross-section min: 95 mm²
- Nominal cross-section 24 kV max: 240 mm²
Straight single-pole hybrid joint CELLPACK screw connectors 1P 24KV 258142
€187.66
€187.66
Tax included
Tax included
Pay in installments with Klarna
Items Available: 6
Frequently bought together
CHMSV hybrid straight couplings are suitable for all single-core plastic cables (PVC, PE, VPE, EPR). They allow the connection of cables with different cross-sections and conductive materials, even with different cable structures with respect to the conductive layer (graphitized, removable or strippable) and the realization of the shielding (copper wire or ribbon). With screw connector.
Can also be used for Um = 7.2 kV cables, in which case check the minimum diameter on the cable insulation.
Properties:
- Safe field control due to permanently elastic silicone field control elements.
- For both Cu and AI conductors
- For all cables with copper wire or ribbon shielding
- Large cable and conductor cross sections
- Quick, easy and safe assembly
- Ready for immediate applications
- Wide range of applications due to integrated screw connector
Applications:
- Indoor environment
- Outdoor
- Ground
- Water
- Cable ducts
- Conduit
