Straight gel joint Cellpack 1x50/16 without connectors 360366
CEL 360366
4010311174563

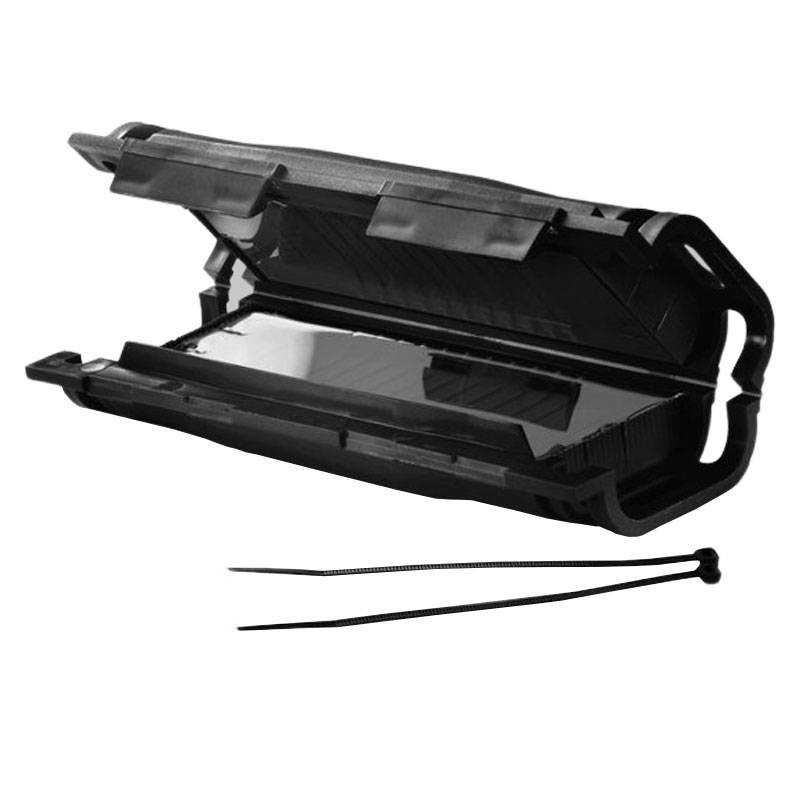

Cellpack EASYCELL 2 straight gel junction without connectors with the following characteristics:
- Voltage levels: U0/U (Um) 0.6/1 (1.2) kV
- Min cable diameter: 11 mm
- Cable diameter max: 19 mm
- Dimensions: 86x47x27 (Length-Width-Height)
Universally usable for connecting all standard plastic cables (e.g., N(A)YY, NYM, H05) with cross-sections in the range of 1.5 mm² to 25 mm². Suitable for copper and aluminum conductors.
Package contents: Gel straight joint, Cable tie, Mounting instructions.
€14.40
Items Available: 83
: 44
Properties:
- Rated cross-section Unreinforced polymer cable for conductor 3x min: 1.5 mm²
- Rated cross-section of unreinforced polymer cable per conductor 3x max: 2.5 mm²
- The connection area is completely sealed by gel, ready to use
- Various types of connectors can be used: terminal blocks, box terminals, screwable connection blocks and crimp C-connectors
- Fire-retardant, UV and impact-resistant plastic casing
- Quick, easy and safe assembly
Applications:
- Indoor environment (installation in buildings and on cable trays)
- Exterior
- Ground
- Water (according to test standard)
There are no reviews
Data sheet
- Type: Connections
