Cellpack 5x16 gel straight joint without connectors 360369
CEL 360369
4010311174587
Cellpack EASYCELL 4 straight gel junction without connectors with the following characteristics:
- Voltage levels: U0/U (Um) 0.6/1 (1.2) kV
- Min cable diameter: 15 mm
- Cable diameter max: 23 mm
- Dimensions: 180x69x40 (Length-Width-Height)
Universally usable for connecting all standard plastic cables (e.g., N(A)YY, NYM, H05) with cross-sections in the range of 1.5 mm² to 25 mm². Suitable for copper and aluminum conductors.

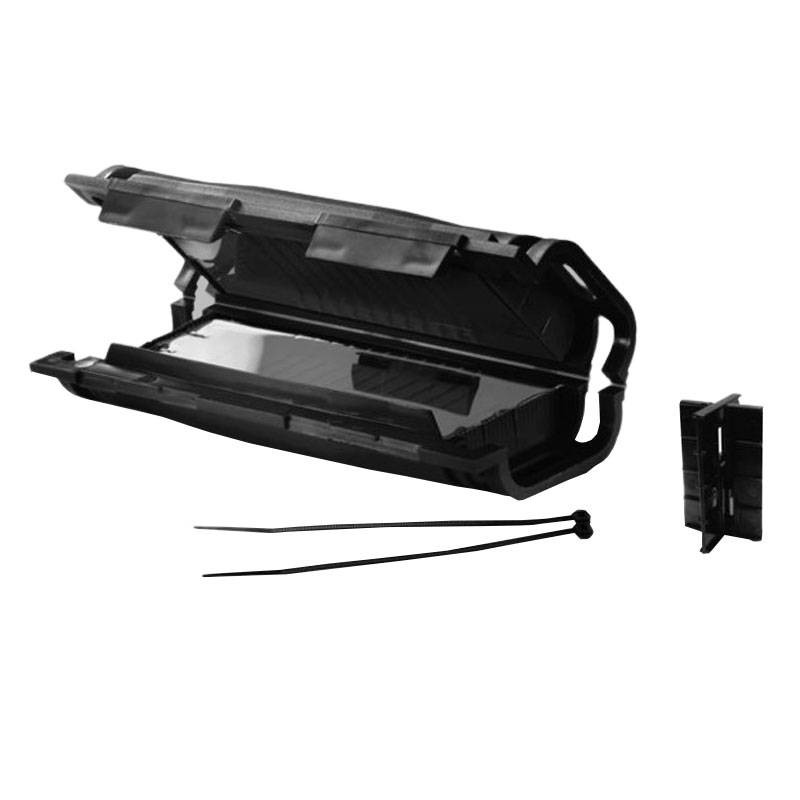

Package contents: Gel straight joint, Spacers, Cable tie, Mounting instructions.
€38.29
Items Available: 27
: 15
Properties:
- Rated cross-section Unreinforced polymer cable for conductor 3x min: 6 mm²
- Rated cross-section of unreinforced polymer cable for conductor 3x max: 16 mm²
- Nominal unreinforced polymeric cable cross-section per conductor 4x min: 6 mm²
- Rated unreinforced polymeric cable cross-section per conductor 4x max: 16 mm²
- Nominal unreinforced polymeric cable for conductor 5x min: 6 mm²
- Nominal unreinforced polymeric cable cross-section per conductor 5x max: 16 mm²
- Connection area is completely sealed by gel, ready to use
- Various types of connectors can be used: terminal blocks, box terminals, screwable connection blocks and crimp C-connectors
- Fire-retardant, UV and impact-resistant plastic casing
- Quick, easy and safe assembly
Applications:
- Indoor environment (installation in buildings and on cable trays)
- Exterior
- Ground
- Water (according to test standard)
There are no reviews
Data sheet
- Type: Connections
