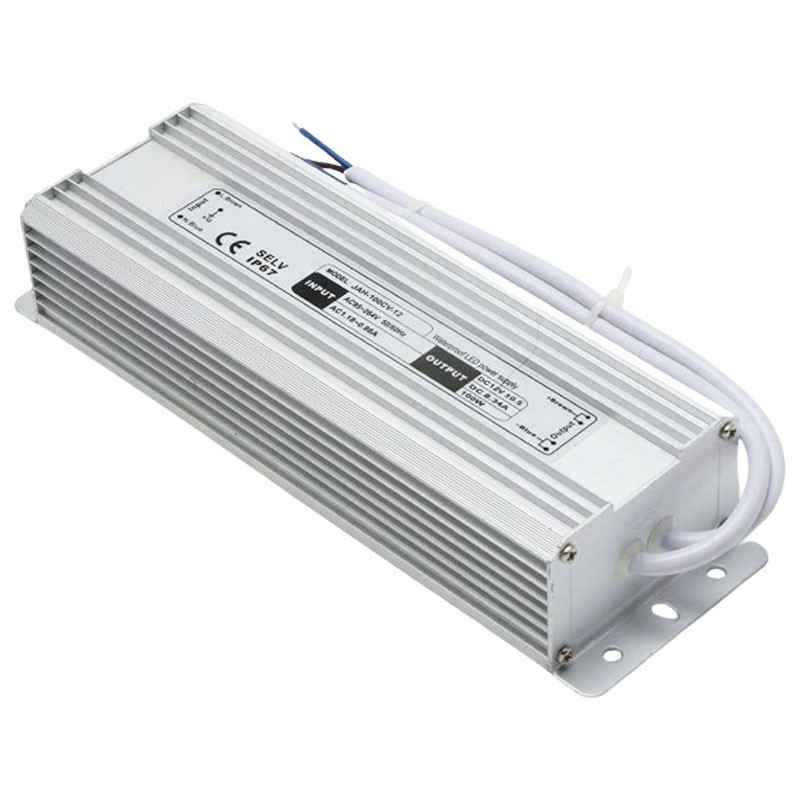

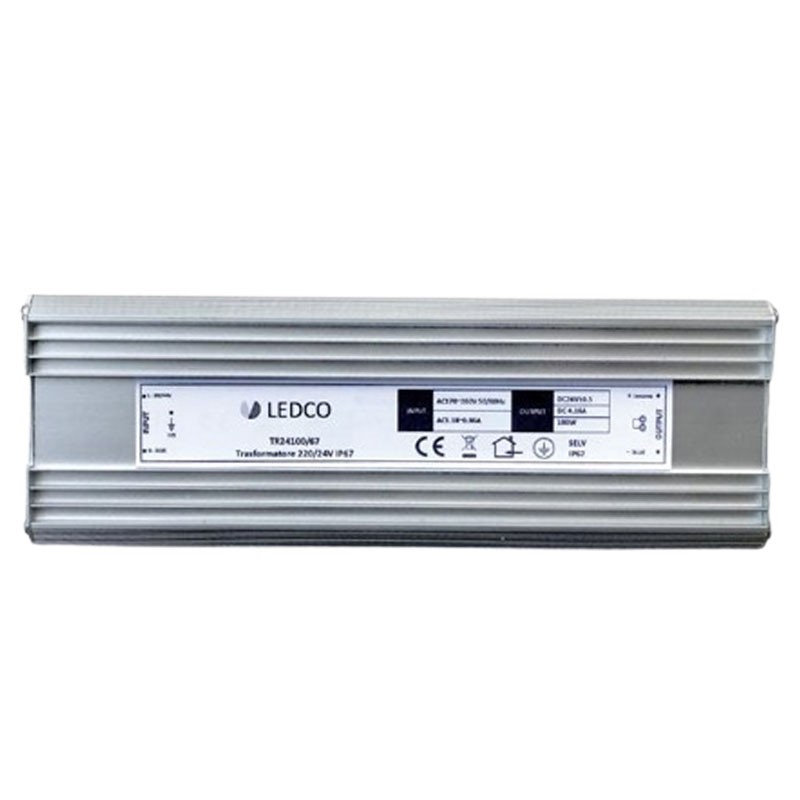

Power supply for led Ledco 100W 24V IP67 TR24100/67
2AV TR24100/67
Power supply unit/transformer for Ledco LEDs, with the following features:
- Intended use: Indoor/outdoor
- Installation: Wall/ceiling mount
- Fixing: With screws, not supplied
- Body / Structure: Aluminium
- Power supply: 110-240 Volt alternating current
- DC input current 40A/230V AC
- Frequency: 50/60 Hz
- Power output 100 Watts - 4.17A
€52.38
Items Available: 12
: 3
Other technical features:
- Switch-on time < 1S (input 230V, Io=100%)
- Overload/overfeed protection: 105 - 150
- IP67 degree of protection
- Working humidity: 20-90%RH (waterproof)
- Insulation class: Class 1
- Safety Standards: EN61347-2-13:2006 EN61347- 1:2008+A1:2011+A2:2013
- Working temperature: -30°~60° c / 20%~90%RH (no frost)
- Storage temperature: -40°~85° c / 10% ~ 90%RH (no frost)

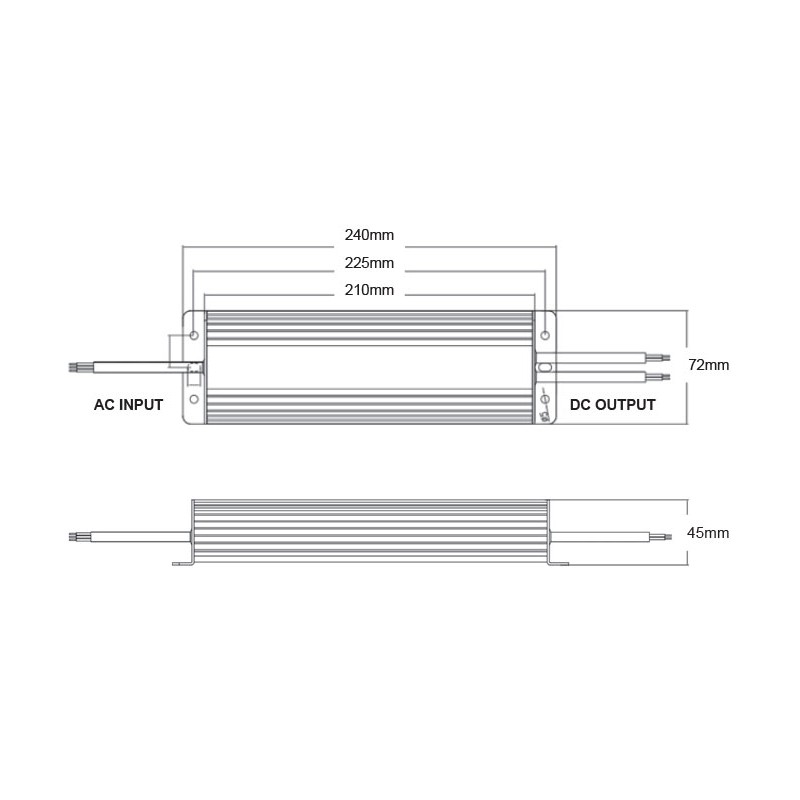

- Dimensions: 230 x 72 x 45mm
- Cooling: Natural ventilation Glow wire: 650 C°
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP67
- Watts: 51 to 100W
- Output voltage: 24 Vdc
- Input voltage: 110/240V
