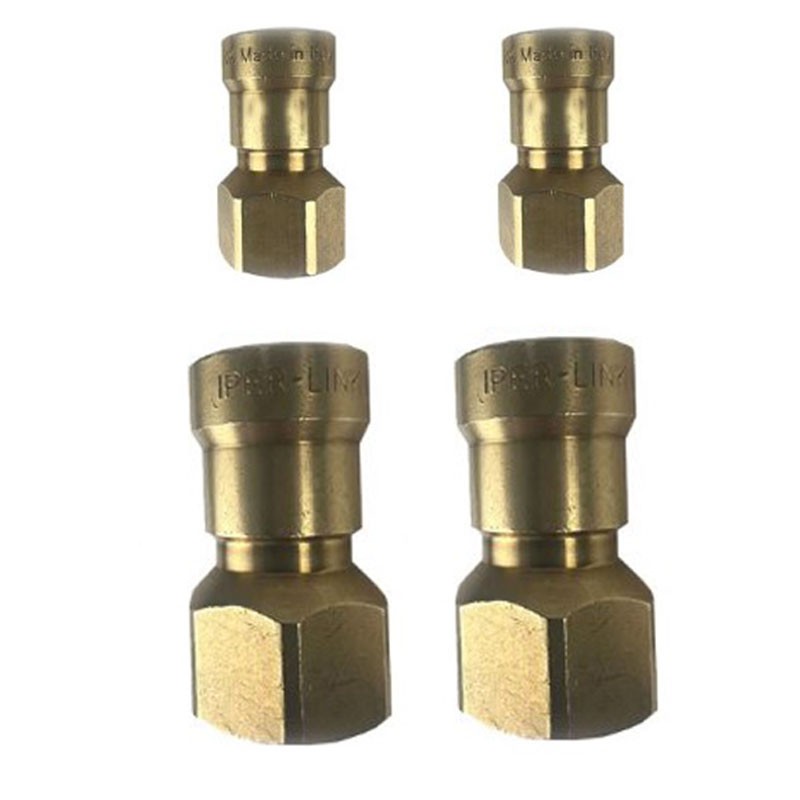

Wigam hermetic fitting kit for split pipes 1/4 - 3/8 4pcs 05068020

Wigam
Wigam
WIG 05068020

Wigam K-IPER-LINK-SPLIT/4-6 hermetic fitting kit, for connecting refrigerant piping to the indoor and outdoor unit without flanging. Compatible with all refrigerants up to 52 bar, with the following features:

  • Connections: 2 couplings 1/4 inch SAE 2 couplings 3/8 inch SAE

  • Max working pressure: 52 bar

  • Compatible: With all major refrigerants

  • Connection: Direct without flanges or special tools

  • Pack of 4 pieces
Do you have questions about this product or did you not find what you were looking for? Ask us!
Wigam hermetic fitting kit for split pipes 1/4 - 3/8 4pcs 05068020
€26.44
€26.44

€26.44
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€26.44

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

IPER-LINK self-locking fitting kit for split connection

The Wigam K-IPER-LINK-SPLIT/4-6 kit allows refrigerant piping to be connected to the indoor and outdoor units of split systems in seconds, without flanging. A solution that simplifies technical work, reduces installation time and eliminates the need for special tools.

High security self-locking hermetic joints

IPER-LINK joints are self-locking and hermetic, designed with double mechanical seals and specific gaskets for high-pressure refrigerants. They are fully tested according to EN 14903, ensuring vacuum resistance, high pressure and optimal sealing.

Universal compatibility with refrigerants

The kit is suitable for all major CFC, HCFC, HFC, HFO and HC refrigerants, up to 52 bar maximum pressure (5.2 MPa), and can operate in a temperature range of -45°C to +130°C, adapting perfectly to any climatic condition or application.

Technical Specifications Wigam Split Fitting Kit

FeatureValue
Type Self-locking fitting kit for split

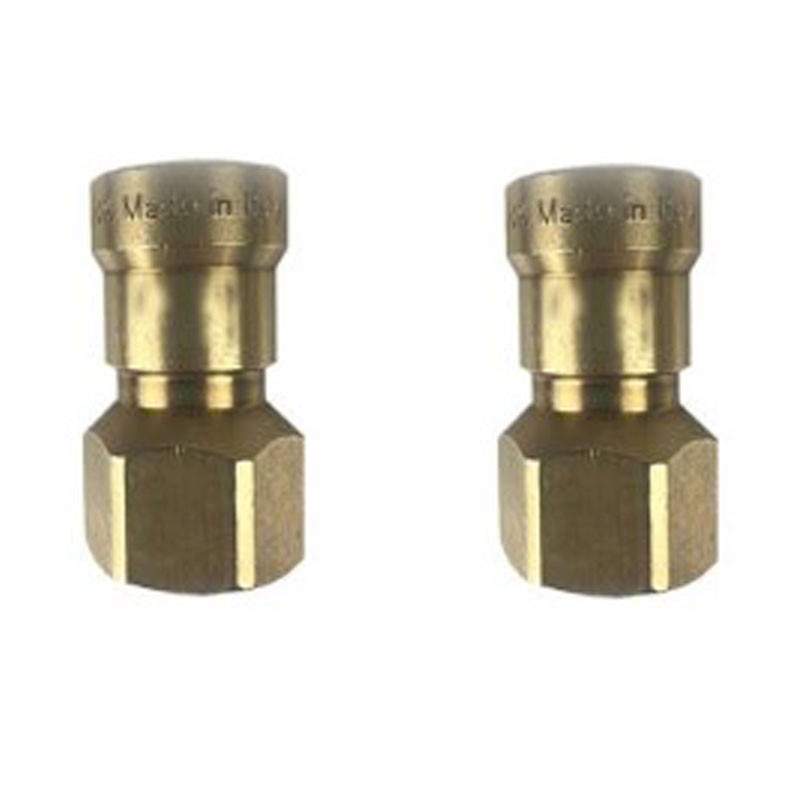

Couplings included 2 pcs. 1/4 SAE M x 1/4 SAE F

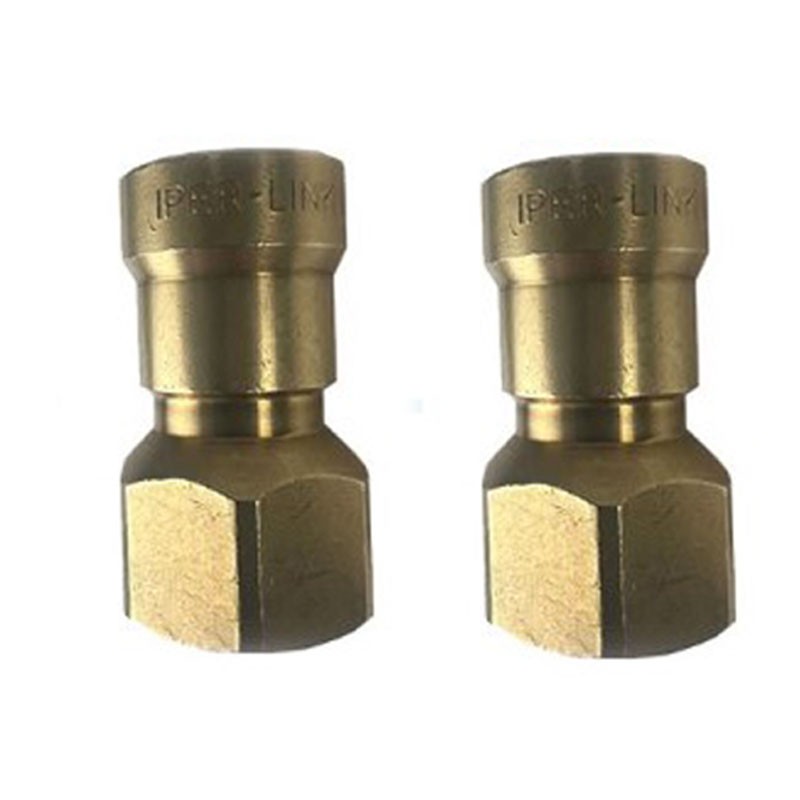

2 pcs. 3/8 SAE M x 3/8 SAE F
Material Brass
Sealing system Double mechanical seal + gaskets
Refrigerant compatibility CFC, HCFC, HFC, HFO, HC
Maximum operating pressure 52 bar (5.2 MPa)
Minimum pressure 0.01 mbar (7.5 mTorr)
Operating temperature -45/+130 degrees
Applications Split unit connection (indoor/outdoor)

There are no reviews

Data sheet

Type:
Fittings
Connections:
1/4 inches
3/8 inches
Material:
Brass
