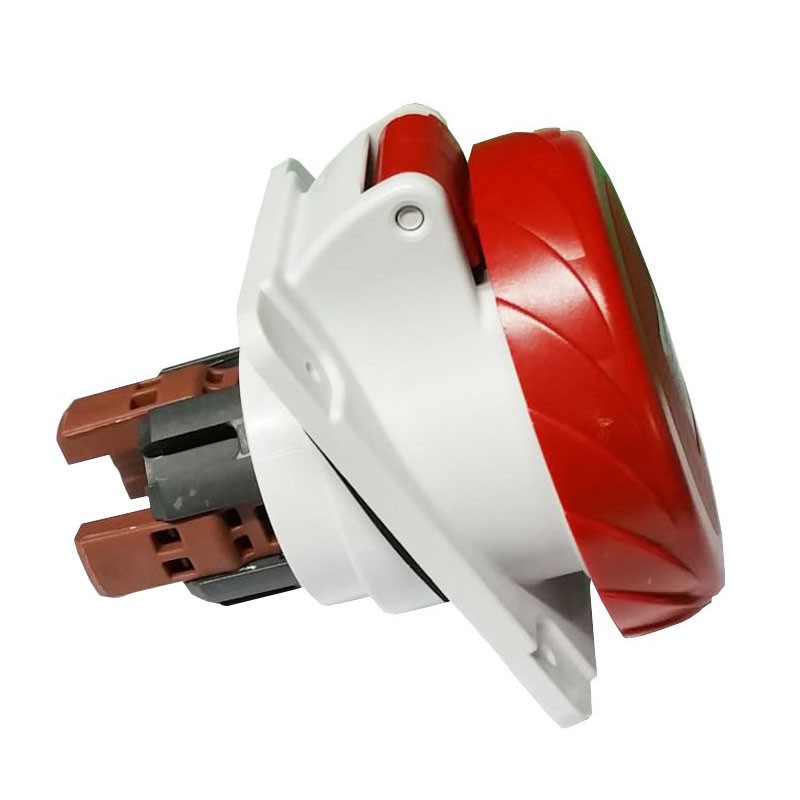

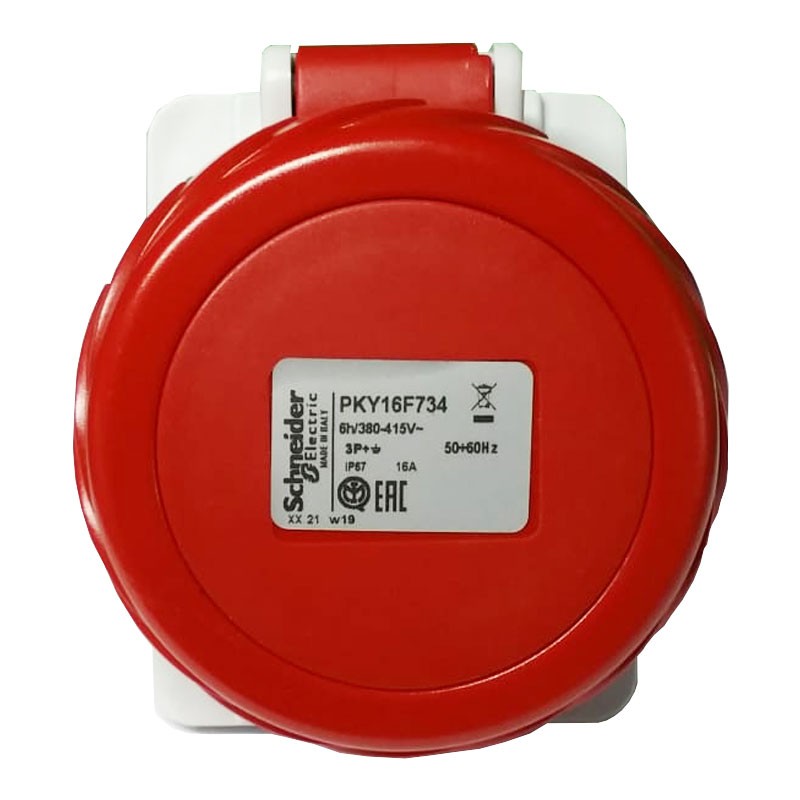

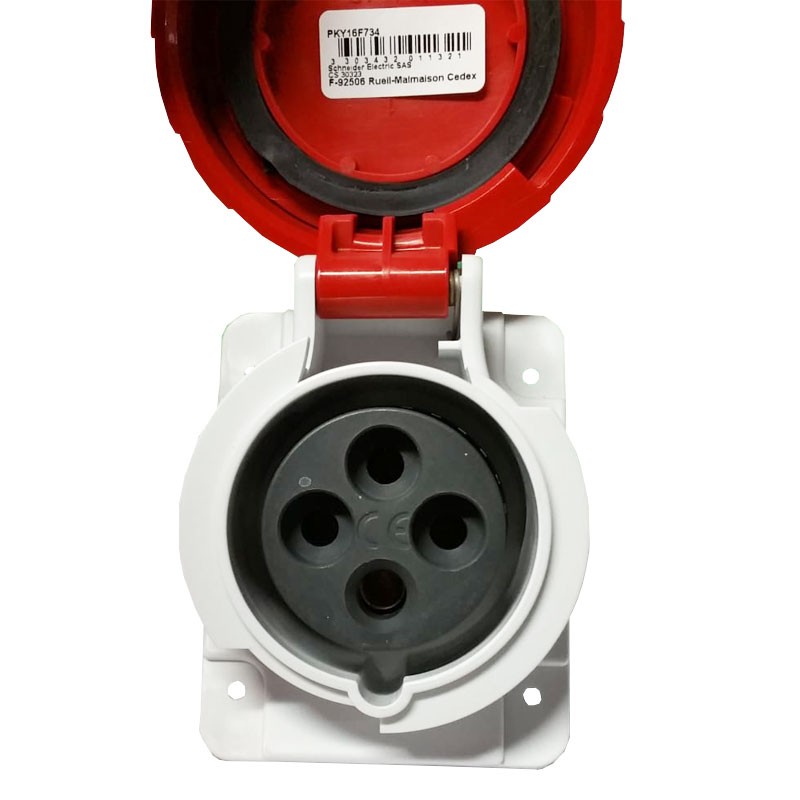

Schneider industrial socket recessed 3X16A+E 400V red PKY16F734
SNR PKY16F734
3303432011321
PratiKa BT Schneider fixed flush-mounted industrial receptacle with the following features:
- Rated operating voltage 380/415V
- Rated current 16A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 3P+T
- Mounting Mode: Front Panel
- Shape: Corner
€11.08
Items Available: 24
: 22
Features:
- Schneider Series
- Earth terminal position (clockwise): 6 hours
- Material plug, socket :housing: self-extinguishing technopolymer
- Contacts material: brass pins
- Connections - terminals: quick connection
- Cable cross section: 1...2.5 mm²
- Base dimensions: 65 x 85 mm
- Dimensions: height 85 mm - width 81 mm - depth 105 mm
- Net weight: 0.177 kg
- Color gray (RAL 7035)
- Color of voltage: red
- Reference standards: IEC 60309-1 - IEC 60309-2
- Degree of protection IP67 in accordance with IEC 60529
- Degree of protection IK08 in accordance with EN 62262
- Fire resistance: 850 °C in accordance with IEC 60695-2-11
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Ambient air temperature for operation: 35 °C ( 86400 s )
le uso già prodotto validi e affidabili
Prodotto costruito con materiali moto buono, facile da montare
Data sheet
- Type: Sockets CEE
- Voltage: 380/415VAC
- Poles: 3P+E
- Degree of protection: IP67
- Installation: Recessed
- Amps: 16A
