Fanton ARGO industrial wall outlet 2P+E 32A 230V IP67 blue 71326
FME 71326
8015450713266

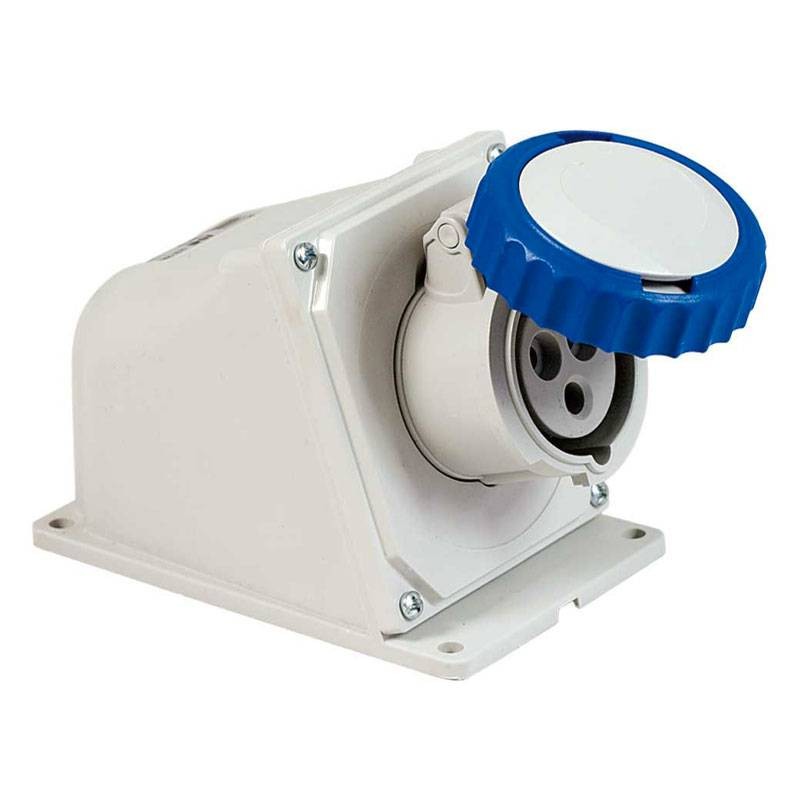

Fanton ARGO industrial wall receptacle, ideal for installation in industrial environments and construction sites. Compact, rugged and dust- and splash-proof structure with the following features:
-
Configuration: 2 poles + ground (2P+T)
-
Rated voltage: 200-250V AC - Frequency 50/60 Hz
-
Rated current: 32A
-
Degree of protection: IP67, dust and splash resistant
-
Connection technology: quick-connect terminals (no screws)
-
Hour position: 6h
-
Mounting: External wall mounting
-
Material: High-strength plastic
-
Body color: Gray Blue front
-

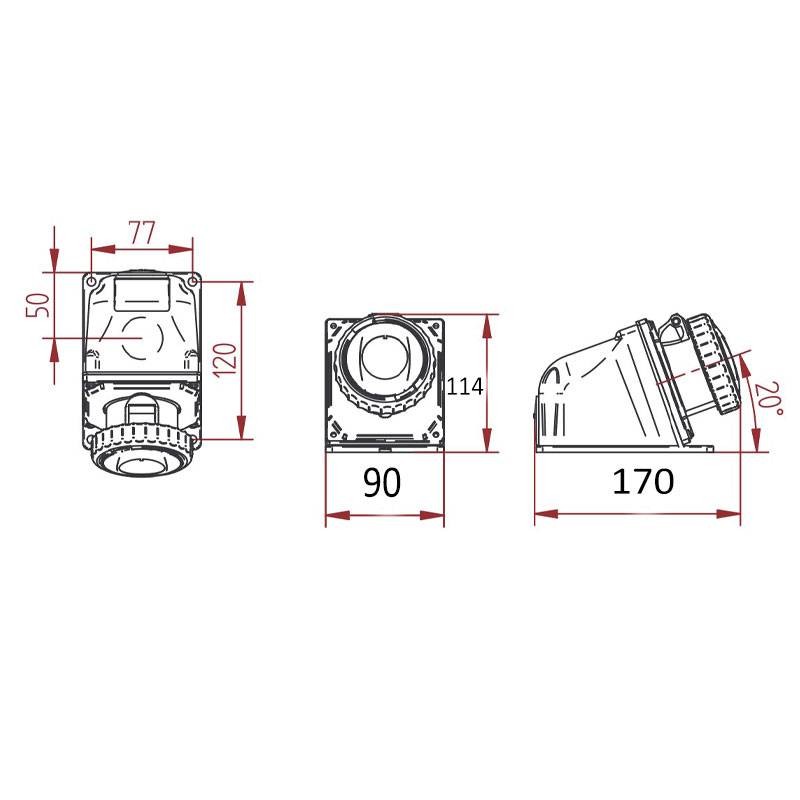

Dimensions: 90 x 135 mm
€11.86
Items Available: 10
: 9
Fanton socket ideal solution for industrial plants and construction sites
The Fanton ARGO industrial socket is designed for safety, reliability and durability. Its IP67 rating makes it perfect for harsh environments, protecting against dust and water splashes. Thanks to its 2P+T configuration, it is suitable for three-phase installations.
Quick and easy installation
Equipped with screwless quick-connect terminals, this receptacle allows fast and safe wiring. External mounting makes it easy to install on vertical surfaces in industrial, technical or maintenance environments.
Reliability even in harsh conditions
Made of high-strength plastic, with a gray body and blue front panel for quick identification of the type of connection, the ARGO socket ensures a stable and durable electrical connection even in demanding environments.
Fanton Industrial Socket Technical Specifications
| Parameter | Value |
|---|---|
| Configuration | 2P+E (2-pole + ground) |
| Rated voltage | 380-200-250 V AC |
| Rated current | 32A |
| Frequency | 50/60 Hz |
| Hourly position | 6h |
| Degree of protection | IP67 |
| Connection type | Screwless terminals |
| Fixing type | External |
| Material | Plastic |
| Body/front color | Gray / blue |
| Dimensions | 90 x 135 mm |
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 200/250VAC
- Poles: 2P+E
- Degree of protection: IP67
- Installation: Wall-mounted
- Amps: 32A
