Fanton ARGO industrial wall socket 3P+E 16A 400V IP44 red 71304
FME 71304
8015450713044
Fanton ARGO industrial wall socket, ideal for installation in industrial environments and construction sites. Compact, robust and dust and splash water resistant structure with the following features:
-
Configuration: 3 poles + ground (3P+T)
-
Rated voltage: 380-415V AC Frequency 50/60 Hz
-
Rated current: 16A
-
Degree of protection: IP44, dust and splash resistant
-
Connection technology: quick-connect terminals (no screws)
-
Time position: 6h
-
Mounting: External wall mounting
-
Material: High-strength plastic
-
Body color: Gray Front red
-

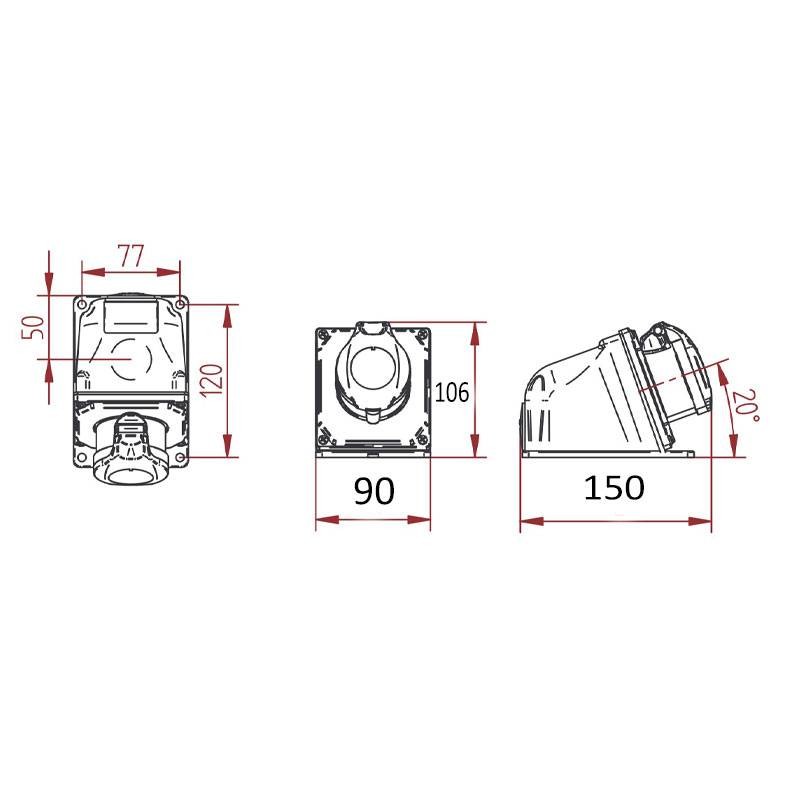

Dimensions: 90 x 135 mm
€8.80
Items Available: 2
: 1
Fanton socket ideal solution for industrial plants and construction sites
The Fanton ARGO industrial socket is designed for safety, reliability and durability. Its IP44 rating makes it perfect for harsh environments, protecting against dust and water splashes. Thanks to its 3P+T configuration, it is suitable for three-phase installations.
Quick and easy installation
Equipped with screwless quick-connect terminals, this receptacle allows fast and safe wiring. External mounting makes it easy to install on vertical surfaces in industrial, technical or maintenance environments.
Reliability even in harsh conditions
Made of high-strength plastic, with a gray body and red front panel for quick identification of the type of connection, the ARGO socket ensures a stable and durable electrical connection even in demanding environments.
Fanton Industrial Socket Technical Specifications
| Parameter | Value |
|---|---|
| Configuration | 3P+E (3-pole + ground) |
| Rated voltage | 380-415 V AC |
| Rated current | 16A |
| Frequency | 50/60 Hz |
| Hourly position | 6h |
| Degree of protection | IP44 |
| Connection type | Screwless terminals |
| Fixing type | External |
| Material | Plastic |
| Body/front color | Gray / Red |
| Dimensions | 90 x 135 mm |
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 380/415VAC
- Poles: 3P+E
- Degree of protection: IP44
- Installation: Wall-mounted
- Amps: 16A
