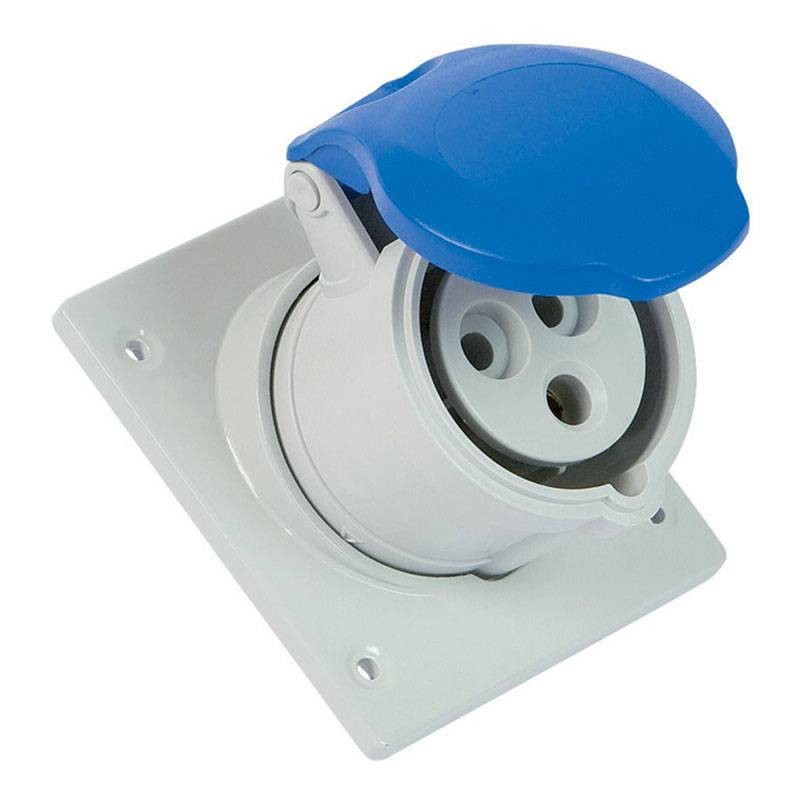

Fanton industrial inclined recessed socket 2P+E 16A 230V IP44 blue 71610
FME 71610
8015450716106
Fanton Industrial Recessed Socket is a reliable solution for industrial electrical systems, providing dust and splash water resistance, making it ideal for demanding work environments. The slanted design facilitates plug engagement, ensuring a stable and secure connection, with the following features:
-
Number of sockets/outlets: 1
-
Socket type: 2P+E
-
Rated current: 16 A
-
Rated voltage: 200-250V
-
Degree of protection: IP44
-
Material: shock and wear resistant ABS
-
Connection technique: Screwless clamp for quick installation
-
Flange dimensions: 75x85mm
€4.83
Items Available: 1
Fanton inclined socket: strength, safety and quick assembly
Strength and safety for industrial environments
The Fanton inclined flush-mounted socket is designed to offer maximum safety in industrial and construction site environments. With IP67 protection, it is fully dustproof and can withstand temporary immersion, making it ideal for electrical installations in harsh conditions.
Inclined design for efficient installation
The special slanted design facilitates the connection of plugs, reducing stress on cables and extending the life of the electrical system. Compact flange size and standard hole patterns allow easy installation on electrical panels and switchboards.
Sturdy materials for long life
Made of high-quality ABS, this socket provides resistance to impact, weathering and chemicals. Screwless clamp connection system ensures quick and reliable installation, reducing assembly time.
Ideal applications
This industrial socket is ideal for:
-
Electrical installations in industrial settings
-
Construction sites and environments subject to harsh conditions
-
Naval and port sectors, thanks to its high resistance to moisture
-
Manufacturing plants and workshops
Technical Specifications Fanton Industrial Socket
General Data
| Feature | Value |
|---|---|
| Number of sockets/outlets | 1 |
| Socket type | 2P+E 16A 230V 6h IP44 |
| Rated current | 16A |
| Rated voltage | 200-250V AC |
| Number of poles | 3 |
| Hour position | 6h |
| Degree of protection | IP44 |
| Color | Blue |
Structure and Installation
| Feature | Value |
|---|---|
| Connection technique | Screwless clamp |
| Direction of engagement | Bent at an angle |
| Material | ABS |
| Vertical flange size | 85 mm |
| Vertical drilling distance | 65 mm |
| Horizontal flange size | 75 mm |
| Horizontal drilling distance | 60 mm |
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 200/250VAC
- Poles: 2P+E
- Degree of protection: IP44
- Installation: Recessed
- Amps: 16A
