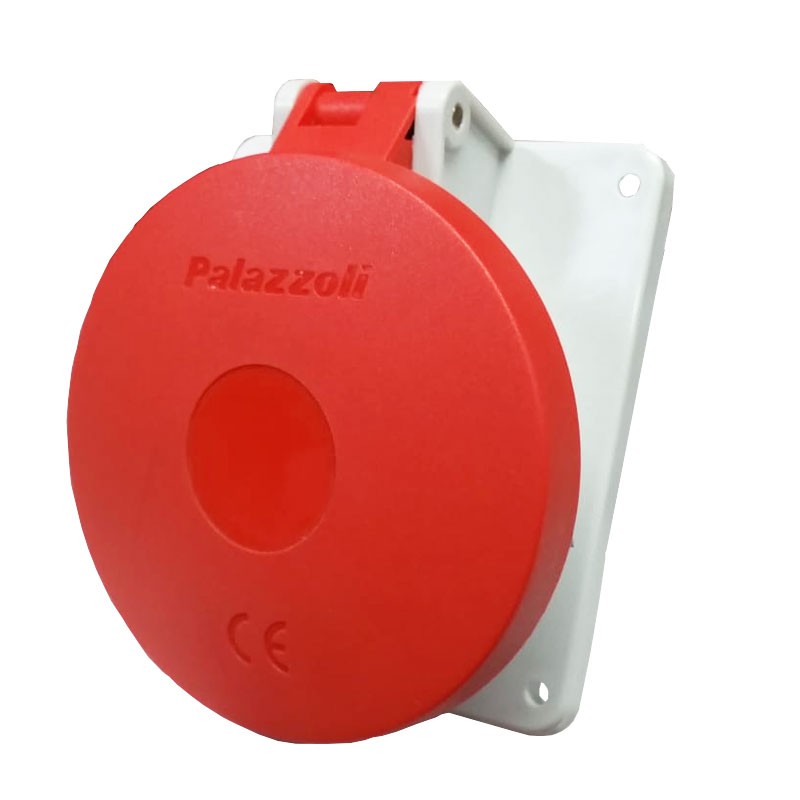

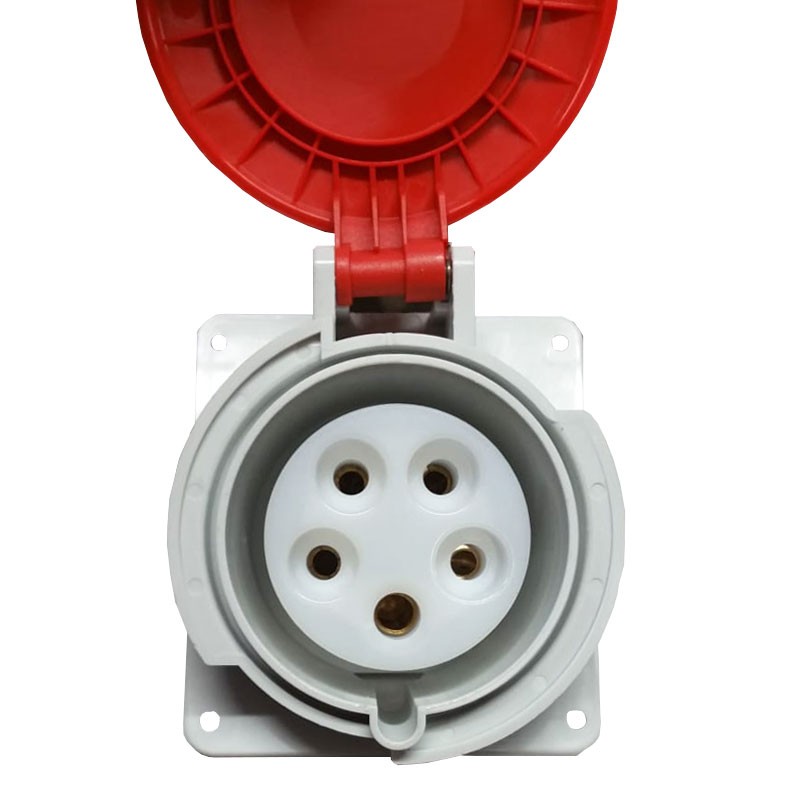

Palazzoli CEE industrial socket for switchboard 3P+N+E 16A 400V IP44
PAL 488146
8014950036929
Inclined fixed socket for Palazzoli switchboard, with the following characteristics:
- Rated voltage: 400V
- Rated insulation voltage: 690V
- Poles: 3P+N+T
- Nominal current 16A
- Frequency: 50/60Hz
- Protection degree IP44
€7.54
Items Available: 28
: 13
Features:
- Palazzoli Series
- Storage ambient temperature: MIN -30°C - MAX +70°C
- Ambient temperature: MIN -25°C - MAX +50°C
- Max conductor section 2,5 mm²
- Color grey RAL 7035
- Cover color red
- Terminal type: indirect clamping
- Input cable diameter 14÷18 mm
- Shock resistance IK08 according to IEC/EN 62262
- Hourly ref: 6h
- Body material: thermoplastic
- Execution: recessed
- Shape: inclined
- Flange dimensions: 88X100 mm
- Plug-socket standard: EN60309-2
Tutto perfetto, ottimo rapporto qualità/prezzo!
Tutto bene anche nella comunicazione!
OK!
Data sheet
- Type: Sockets CEE
- Voltage: 400V
- Poles: 3P+N+E
- Degree of protection: IP44
- Installation: Recessed
- Amps: 16A
