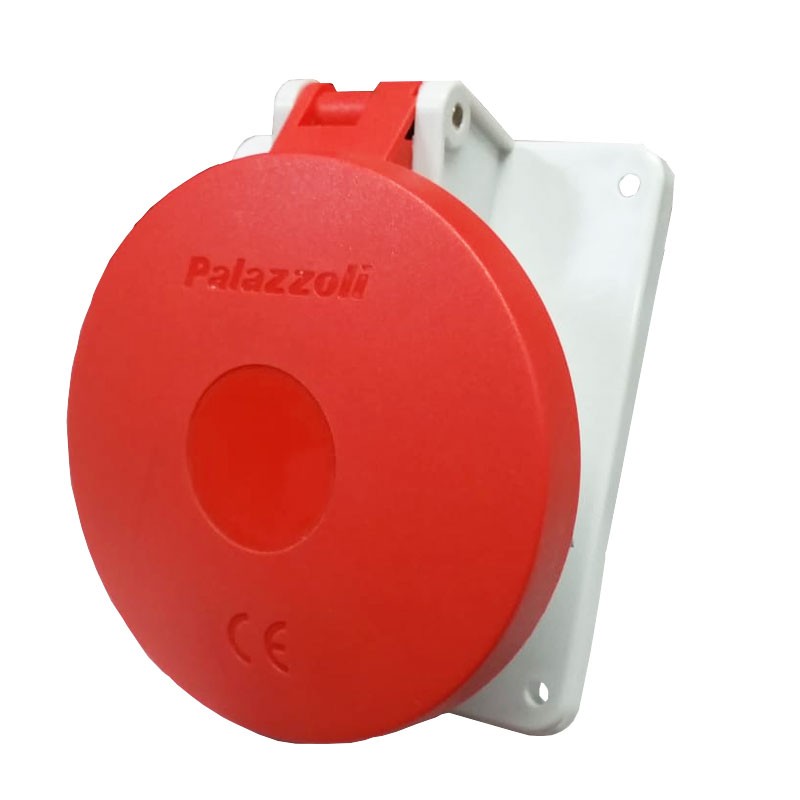

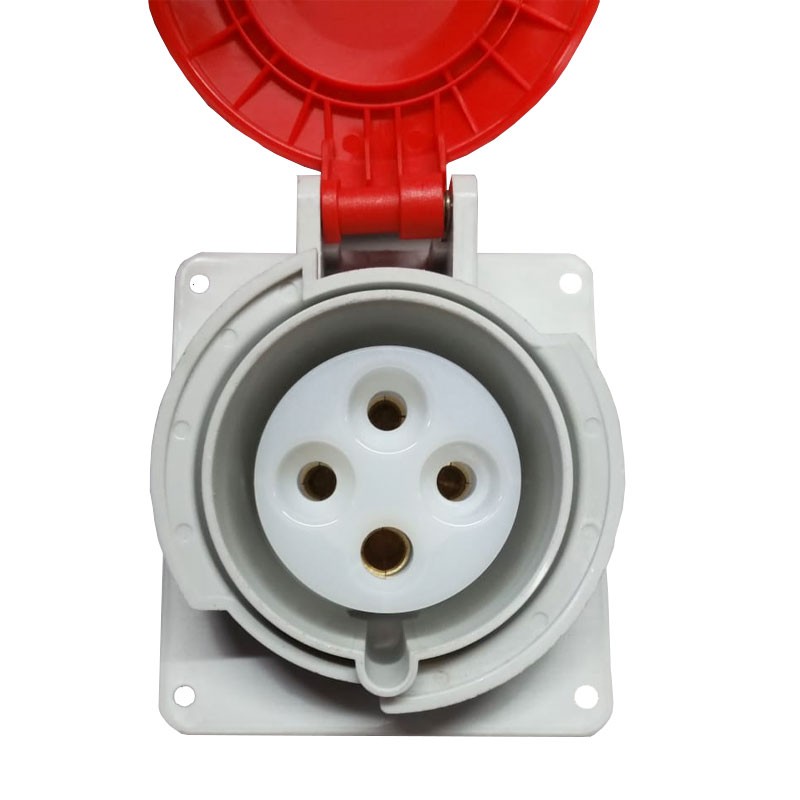

Palazzoli CEE industrial socket for switchboard 3P+E 32A 400V IP44


PAL 488236 8014950036981

Inclined fixed socket for Palazzoli switchboard, with the following characteristics:

  • Rated voltage: 400V
  • Rated insulation voltage: 690V
  • Poles: 3P+E
  • Rated current 32A
  • Frequency: 50/60Hz
  • Protection degree IP44
Request info about this product

Palazzoli CEE industrial socket for switchboard 3P+E 32A 400V IP44

€10.54
€10.54

Palazzoli CEE industrial socket for switchboard 3P+E 32A 400V IP44

€10.54
Tax included
klarna Pay in installments with Klarna
qty

Palazzoli CEE industrial socket for switchboard 3P+E 32A 400V IP44

€10.54

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Palazzoli Series
  • Storage ambient temperature: MIN -30°C - MAX +70°C
  • Ambient temperature: MIN -25°C - MAX +50°C
  • Max conductor section 6 mm²
  • Color grey RAL 7035
  • Cover color red
  • Terminal type: indirect clamping
  • Input cable diameter 14÷18 mm
  • Shock resistance IK08 according to IEC/EN 62262
  • Hourly ref: 6h
  • Body material: thermoplastic
  • Execution: recessed
  • Shape: inclined
  • Flange dimensions: 88X100 mm
  • Plug-socket standard: EN60309-2

Data sheet

Type:
Sockets CEE
Voltage:
380/415VAC
Poles:
3P+T
Degree of protection:
IP44
Installation:
Recessed
Amps:
32A
