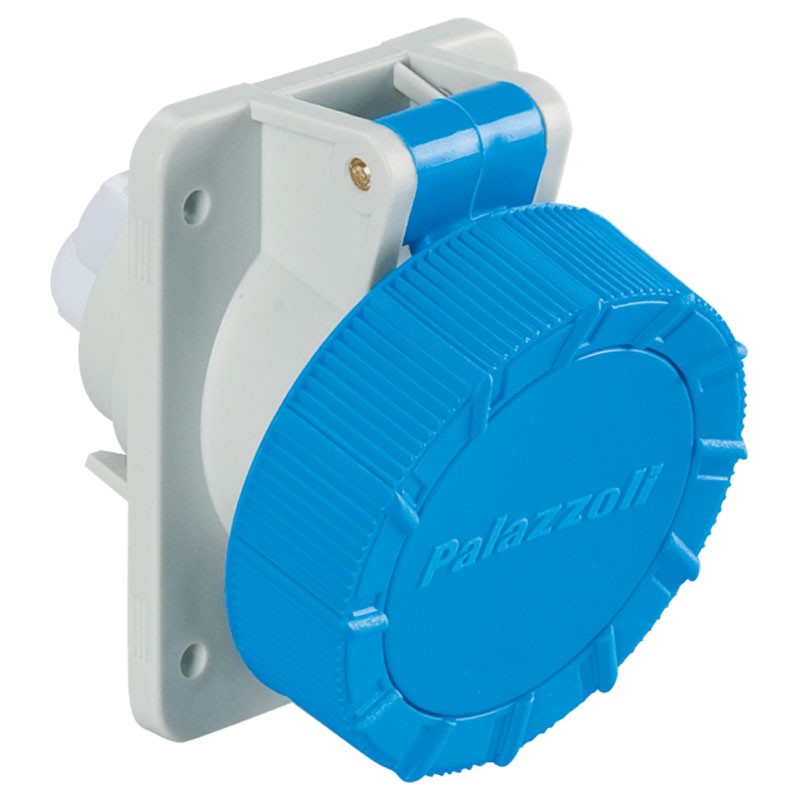

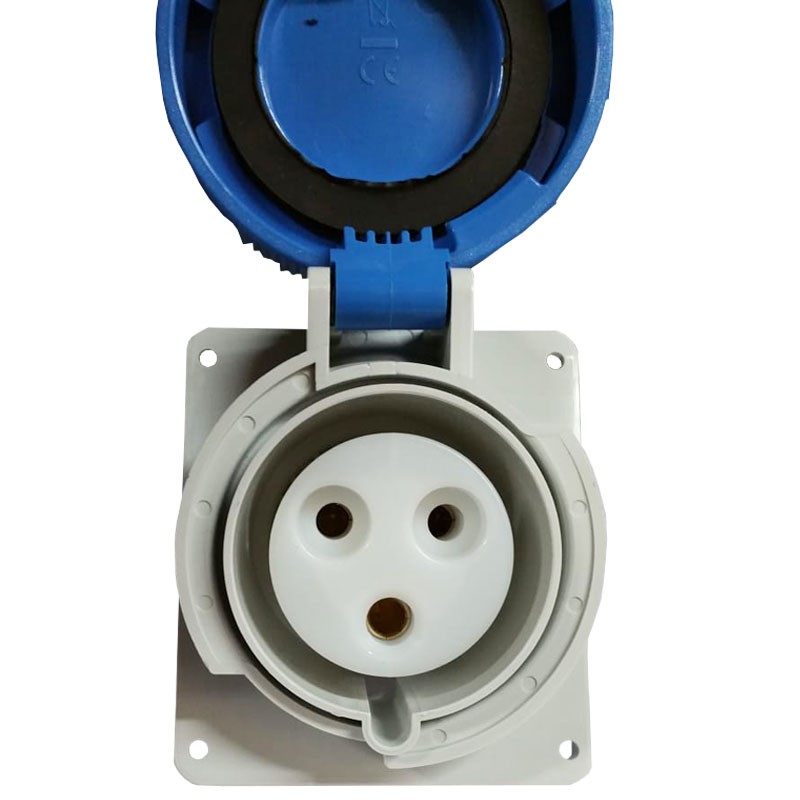

Palazzoli CEE industrial socket for 2P+E 32A 230V IP66 switchboard
PAL 489226
8014950037131
Inclined fixed socket for Palazzoli switchboard, with the following characteristics:
- Rated voltage: 230V
- Rated insulation voltage: 690V
- Poles: 2P+E
- Rated current 32A
- Frequency: 50/60Hz
- Degree of protection IP66/IP67
€15.37
Items Available: 19
: 3
Features:
- Palazzoli Series
- Storage ambient temperature: MIN -30°C - MAX +70°C
- Ambient temperature: MIN -25°C - MAX +50°C
- Max conductor section 6 mm²
- Color grey RAL 7035
- Cover color blue
- Terminal type: indirect clamping
- Input cable diameter 14÷18 mm
- Shock resistance IK08 according to IEC/EN 62262
- Hourly ref: 6h
- Body material: thermoplastic
- Execution: recessed
- Shape: inclined
- Flange dimensions: 88X100 mm
- Plug-socket standard: EN60309-2
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 230V
- Poles: 2P+E
- Degree of protection: IP66
- Installation: Recessed
- Amps: 32A
