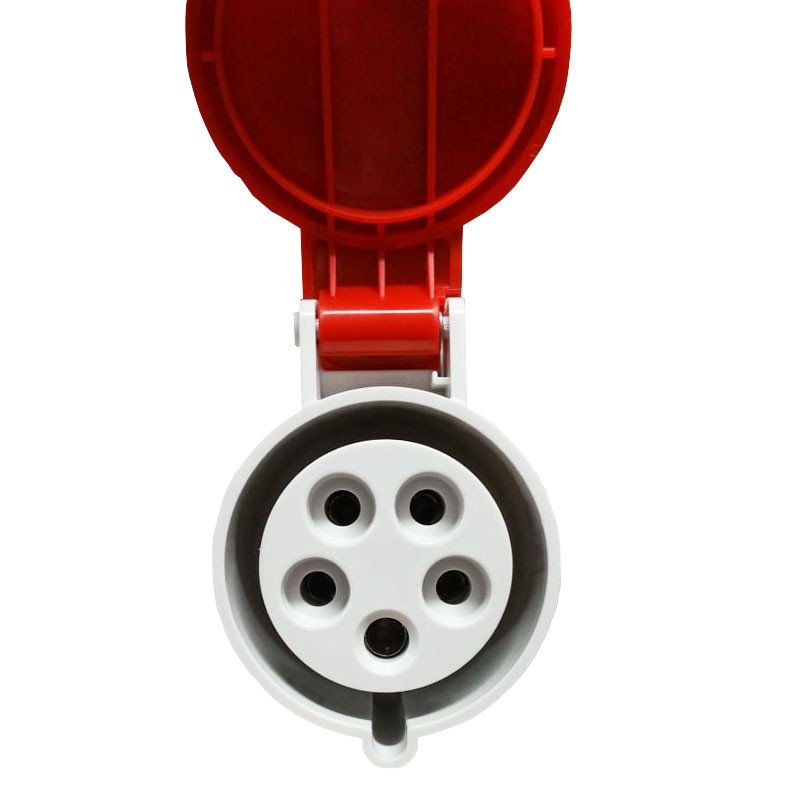

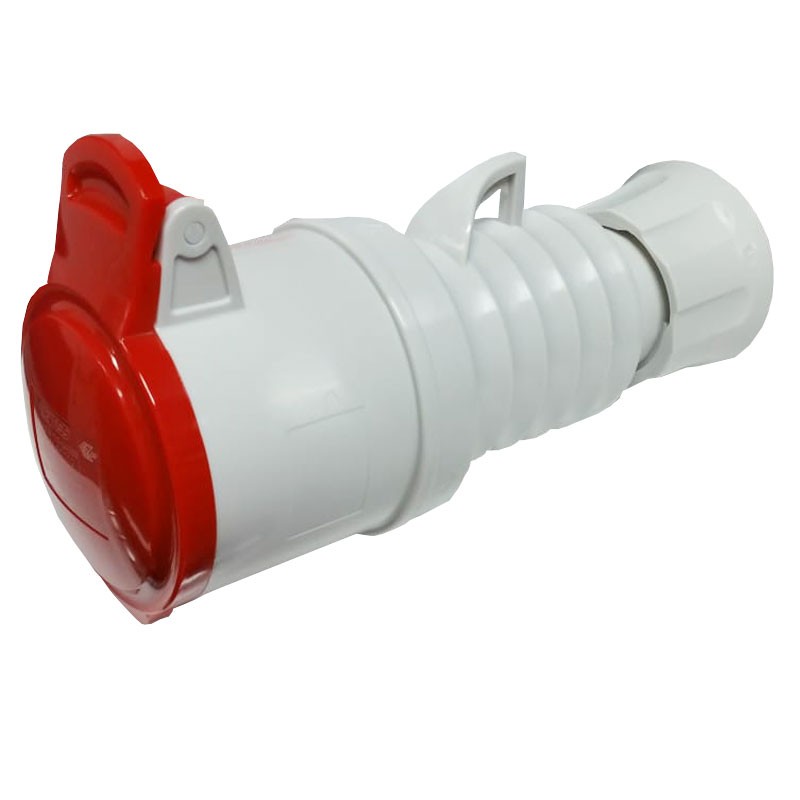

Gewiss mobile socket 3P+N+E 32A IP44 red 380V GW62020H
GEW GW62020H
8011564798366
Gewiss straight HP mobile outlet, with the following characteristics:
- Rated voltage: 380 - 415V
- Frequency: 50/60 Hz
- Rated current 32A
- Poles: 3P+N+T
- Degree of protection IP44/IP54
Gewiss mobile socket 3P+N+E 32A IP44 red 380V GW62020H
€14.56
€14.56
Tax included
Tax included
Pay in installments with Klarna
Items Available: 199
Features:
- Gewiss Series
- Admissible overload: 42A
- Interrupting capacity at 1.1 Un: 40A
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Insulation resistance: > 10 MΩ
- Red color
- Impact resistance: IK09
- Wiring type: screw
- N. Total operations >2000
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Reference h: 6
- Clamping capacity: 2.5-6 mm² flexible cables - 2.5-10 mm² rigid cables
- Clamping capacity: 9.2-19.9 mm
- Material type: Halogen free according to EN 60754-2 standard
- Temperature range -25 +55 °C
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 380/415VAC
- Poles:
- 3P+N+T
- Degree of protection:
- IP44
- Installation:
- Furniture
- Amps:
- 32A
