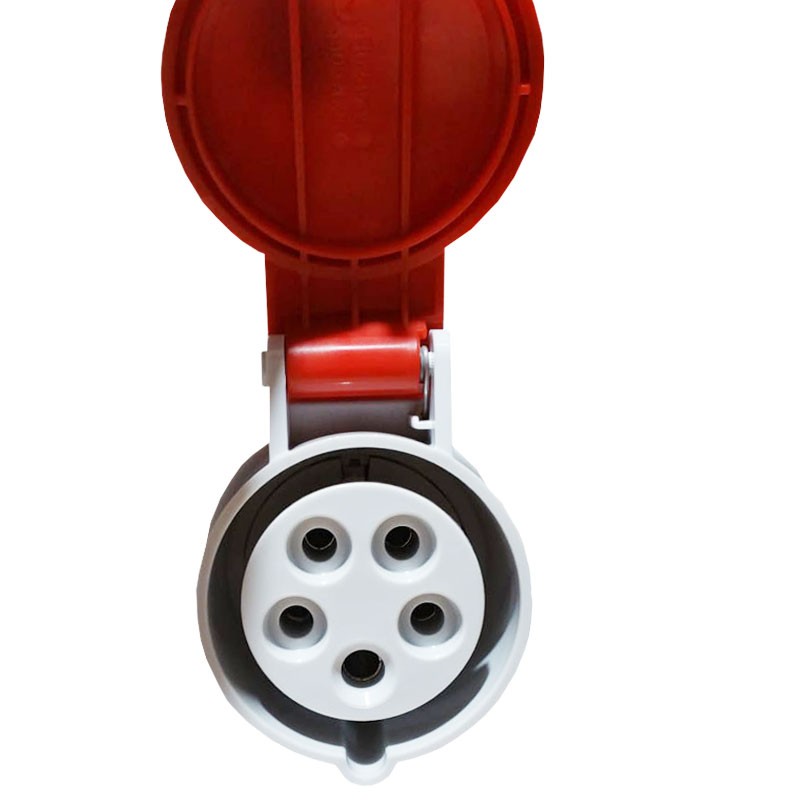

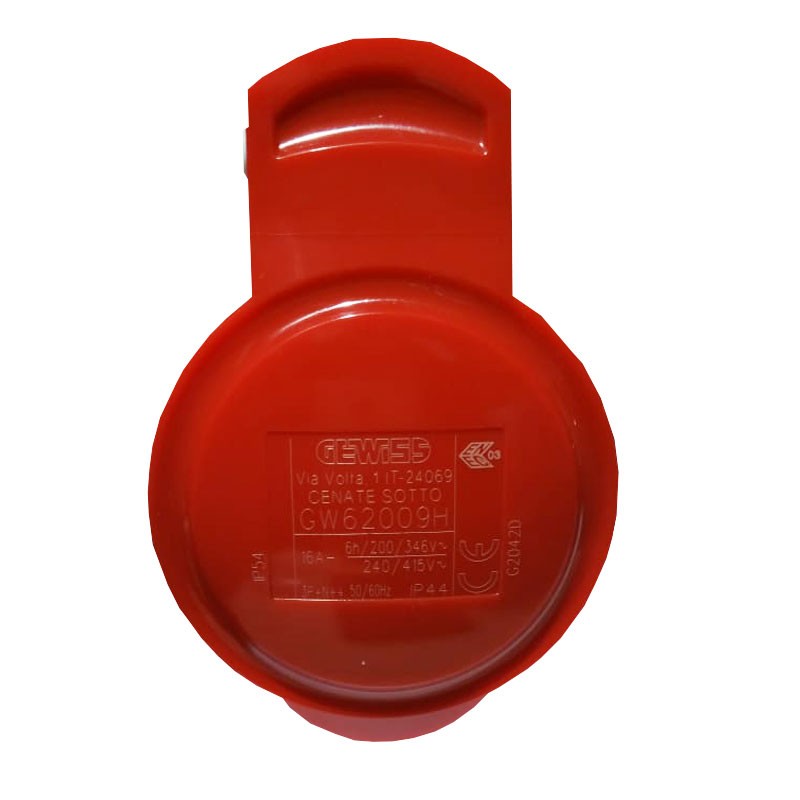

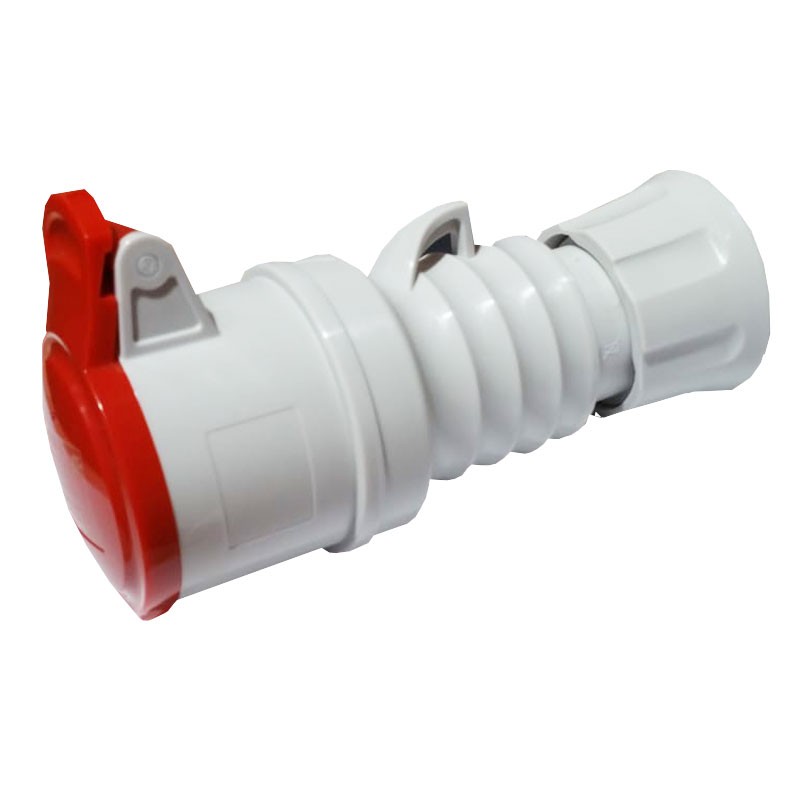

Gewiss mobile socket 3P+N+E 16A IP44 red 380V GW62009H
GEW GW62009H
8011564798168
Gewiss straight HP mobile outlet, with the following features:
- Rated voltage: 380-415V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 3P+N+E
- Degree of protection IP44/IP54
- Wiring: screw
€10.42
Items Available: 270
: 68
Features:
- Gewiss Series
- Red color
- Shock resistance IK09
- Reference h: 6
- Clamping capacity:1-2,5 mm² flexible cables - 1,5-4 mm² rigid cables
- Clamping capacity: 9.2-19.9 mm
- Temperature range: -25 +55 °C
- Wiring type: screw
- Material Type: Halogen free according to EN 60754-2
- Electrocod code: 2231
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: >5000
- Interrupting capacity at 1,1 Un: 20A
- Insulation resistance: > 10 MΩ
- Admissible overload: 22 A
- Thermopressure with ball: 125 °C (Active Parts) - 80 °C (Passive Parts)
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 380/415VAC
- Poles: 3P+N+E
- Degree of protection: IP44
- Installation: Mobile
- Amps: 16A
