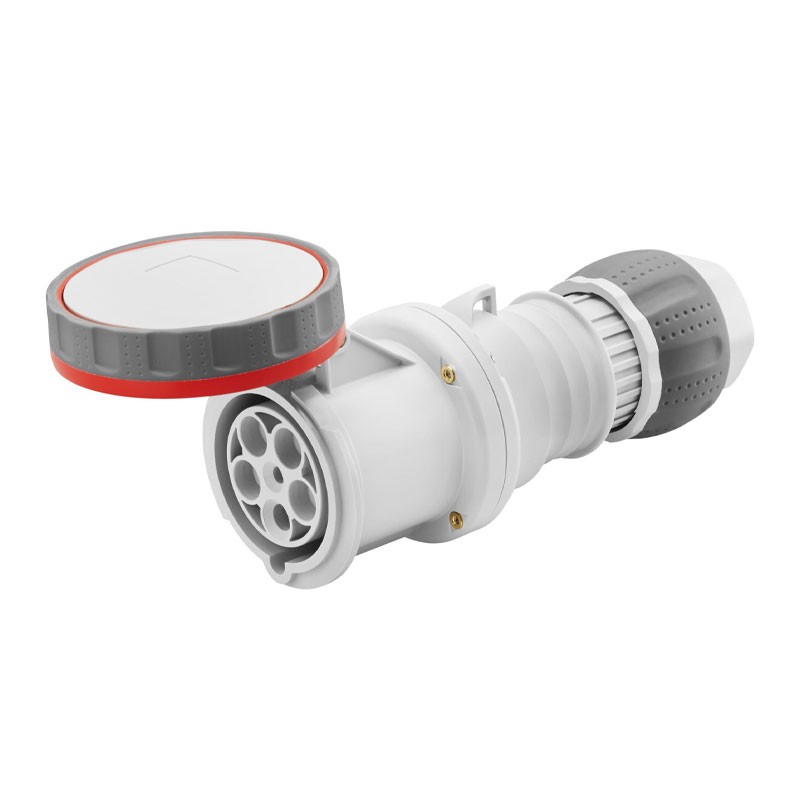

Gewiss mobile socket 3P+N+E 125A IP67 red 380V GW62061H
GEW GW62061H
8011564828773
Gewiss straight HP mobile outlet, with the following features:
- Rated voltage: 346 - 415V
- Frequency: 50/60 Hz
- Rated current 125A
- Poles: 3P+T+N
- Degree of protection IP67
- Shroud wiring
Gewiss mobile socket 3P+N+E 125A IP67 red 380V GW62061H
€144.27
€144.27
Tax included
Tax included
Pay in installments with Klarna
Items Available: 25
Features:
- Gewiss Series
- Red color
- Shock resistance IK09
- Reference h: 6
- Clamping capacity: 16-50 mm² flexible cables - 25-70 mm² rigid cables
- Clamping capacity: 29.9-49 mm
- Operating temperature: -25 +55 °C
- Material type: Halogen free according to EN 60754-2
- Electrocod code: 2211
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 500
- Interrupting capacity at 1,1 Un: 156A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active Parts) - 80 °C (Passive Parts)
There are no reviews
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 380/415VAC
- Poles:
- 3P+N+T
- Degree of protection:
- IP67
- Installation:
- Furniture
- Amps:
- 125A
