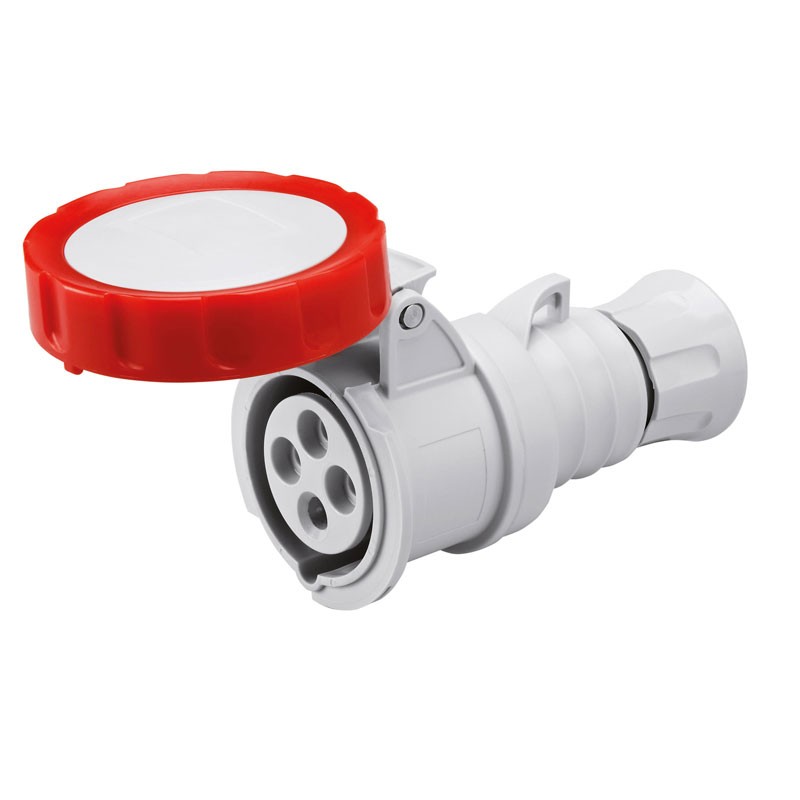

Gewiss mobile socket 3P+E 16A IP67 red 380V GW62030H
GEW GW62030H
8011564798540
Gewiss straight HP mobile outlet, with the following characteristics:
- Rated voltage: 380 - 415V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 3P+T
- Degree of protection IP67
Gewiss mobile socket 3P+E 16A IP67 red 380V GW62030H
€14.10
€14.10
Tax included
Tax included
Pay in installments with Klarna
Items Available: 132
Features:
- Gewiss Series
- Red color
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Clamping capacity: 7.5-13.8 mm
- Operating temperature -25 +55 °C
- Wiring type: screw
- Type Material: Halogen free according to EN 60754-2
- Electrocod code: 2211
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Interrupting capacity at 1,1 Un: 20A
- Insulation resistance: > 10 MΩ
- Admissible overload :22A
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 380/415VAC
- Poles:
- 3P+T
- Degree of protection:
- IP67
- Installation:
- Furniture
- Amps:
- 16A
