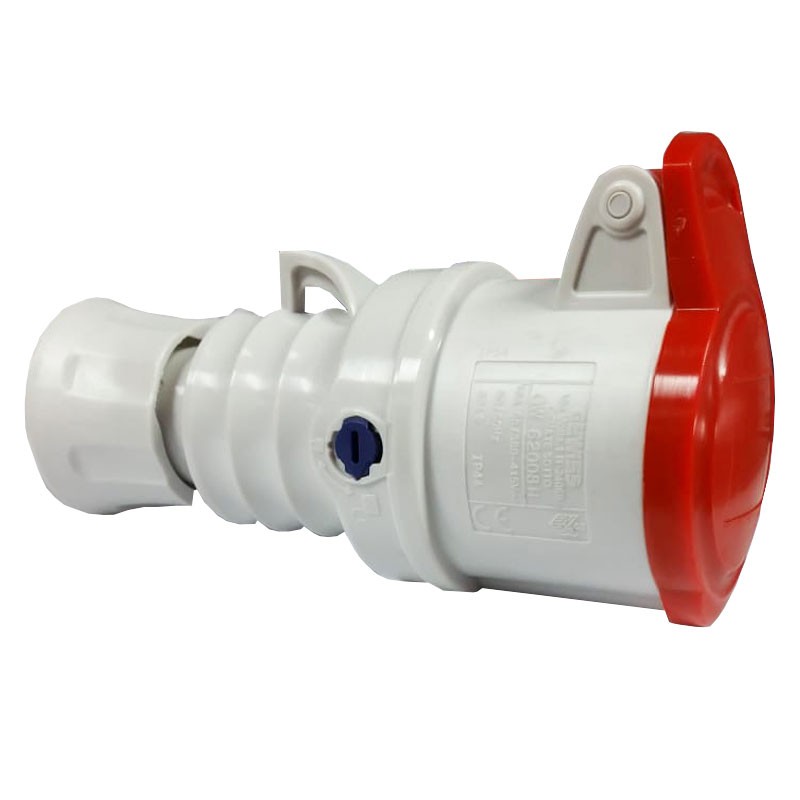

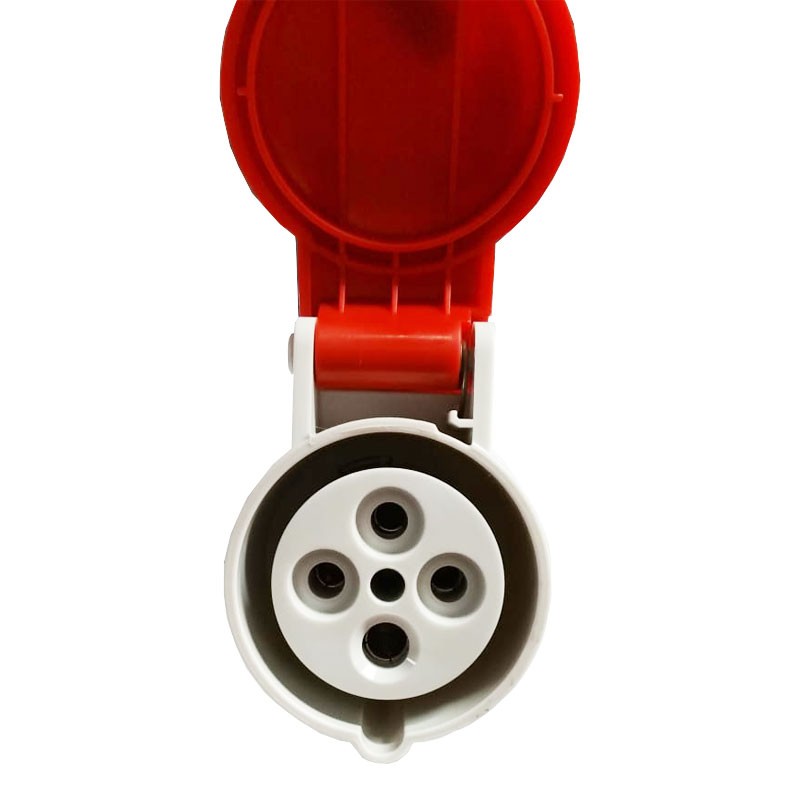

Gewiss mobile socket 3P+E 16A IP44 red 380V GW62008H
GEW GW62008H
8011564798144
Gewiss straight HP mobile outlet, with the following features:
- Rated voltage: 380-415V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 3P+T
- Degree of protection IP44/IP54
- Wiring: screw
Gewiss mobile socket 3P+E 16A IP44 red 380V GW62008H
€7.98
€7.98
Tax included
Tax included
Pay in installments with Klarna
Items Available: 445
Features:
- Gewiss Series
- Red color
- Shock resistance IK09
- Reference h: 6
- Clamping capacity:1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Clamping capacity: 7.5-13.8 mm
- Working temperature -25 +55 °C
- Wiring type: screw
- Material type: Halogen free according to EN 60754-2
- Electrocod code: 2231
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: >5000
- Interrupting capacity at 1,1 Un: 20A
- Insulation resistance: > 10 MΩ
- Admissible overload: 22 A
- Thermopressure with ball: 125 °C (Active Parts) - 80 °C (Passive Parts)
There are no reviews
Data sheet
- Type:
- Sockets CEE
- Voltage:
- 380/415VAC
- Poles:
- 3P+T
- Degree of protection:
- IP44
- Installation:
- Furniture
- Amps:
- 16A
